D. Open the hook cover to supply oil until the shuttle
race ring is covered with oil. Place back the hook
cover after lubrication.
E. Supply silicon oil into the silicon oil tank mounted on
the right side of the arm.
2) Installation of the needle
Loosen the needle fixing screw of the needle bar. Then,
with the needle groove facing the front, push the needle
until its upper end touches the needle hole of the needle
bar. Fix the needle in with the needle fixing screw.

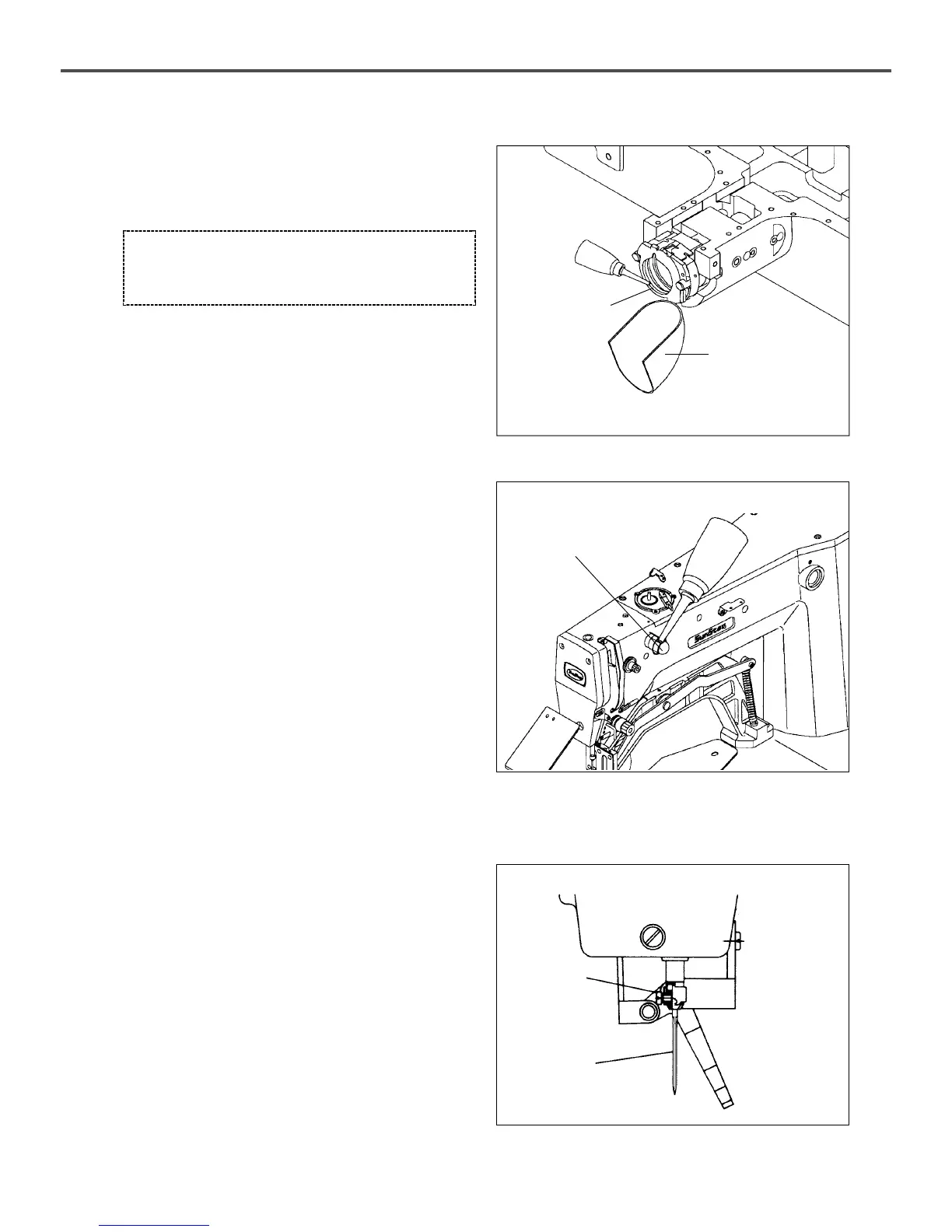

[Figure 44]
[Figure 45]
[Figure 46]
Needle Fixing
Screw
Needle
[Caution]
For safety, keep the hook cover on during machine
operation.
Silicon Oil Tank
Shuttle Race Ring
Hook Cover
