44

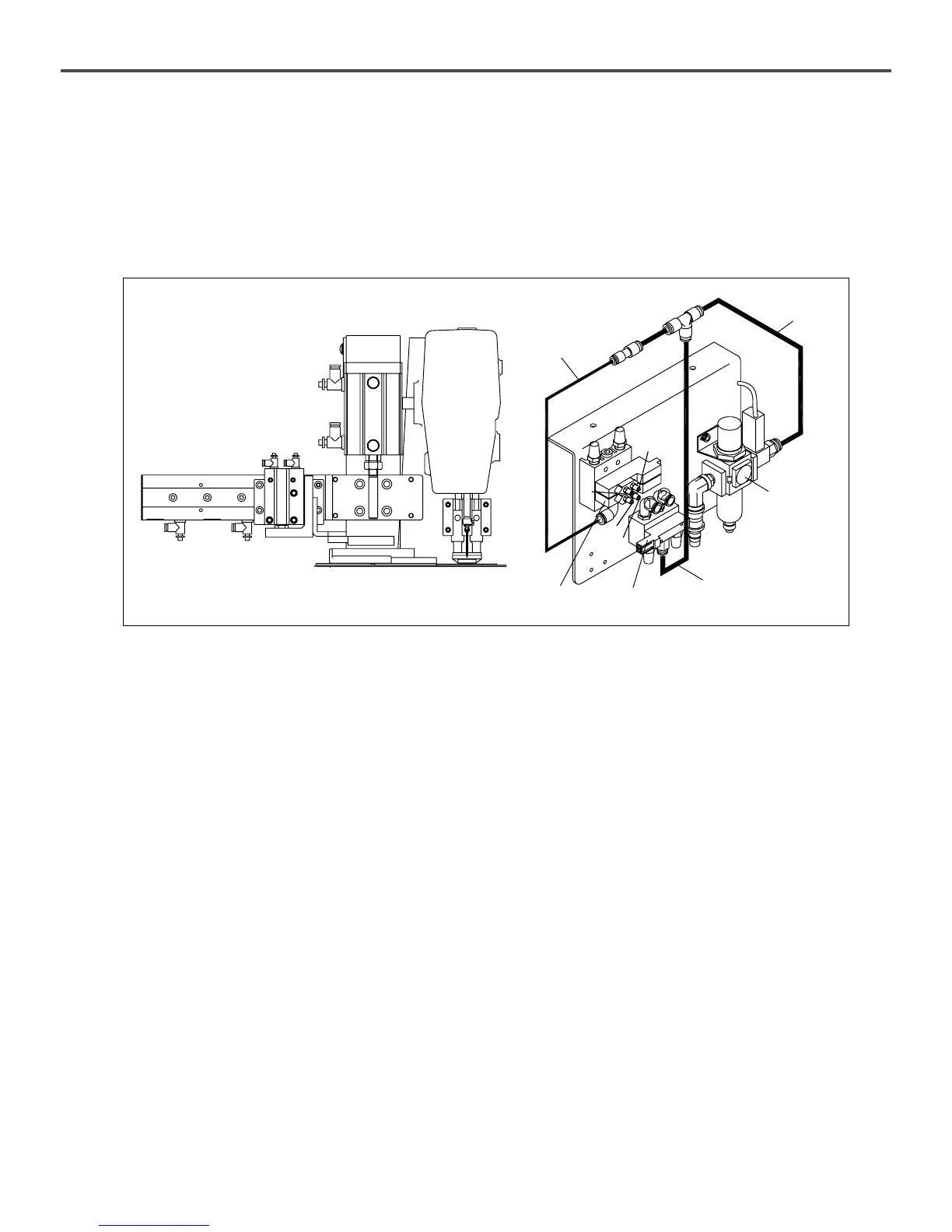

[Figure 96]
regulator 2
regulator 1
solenoid
hose 1
hose 2
hose 3
20. Connecting Pneumatic Hose
A. Connect the solenoid value and the coupling using the hose.
B. Connect the both ends of the coupling to the regulators, using the hoses , .
C. Insert the labeled hose into the linking part as in the figure.
Make sure to fully insert the hose until it does not move further.
