8) Operation of the pedal (H, M, L, K types)
9) Operation of the pedal (HA type)
A. Install the pedal switch in the suitable position for your
convenience.
B. If you step on the pedal once, the presser foot will go
down and if you take your foot off, the presser foot will
go up.
C. If you press down on the pedal switch consecutively,
sewing will start. After sewing is finished, the presser
foot will go up.
A. SPS/D(C)-B1201HA-20 (Monolithic presser foot)
The same as the pedal operation method of electronic
bar tacking machines. Refer to the 8) Operation of the
pedal as described above.
B. SPS/D(C)-B1201HA-22 (Separate-driven presser foot)
① Two footholds in the pedal switch. Press the right
pedal to lower the right presser foot and press the
pedal again to lift the presser foot.
② Press the left pedal once to lower the left presser
foot and step off to lift the presser foot.
③ When you press down on the pedal consecutively,
sewing will start. After sewing is done, the presser
foot will go up automatically.
④ As for how to select the separate-driven pedal
parameters, refer to the page 27 of the electrical and
electronic manual.

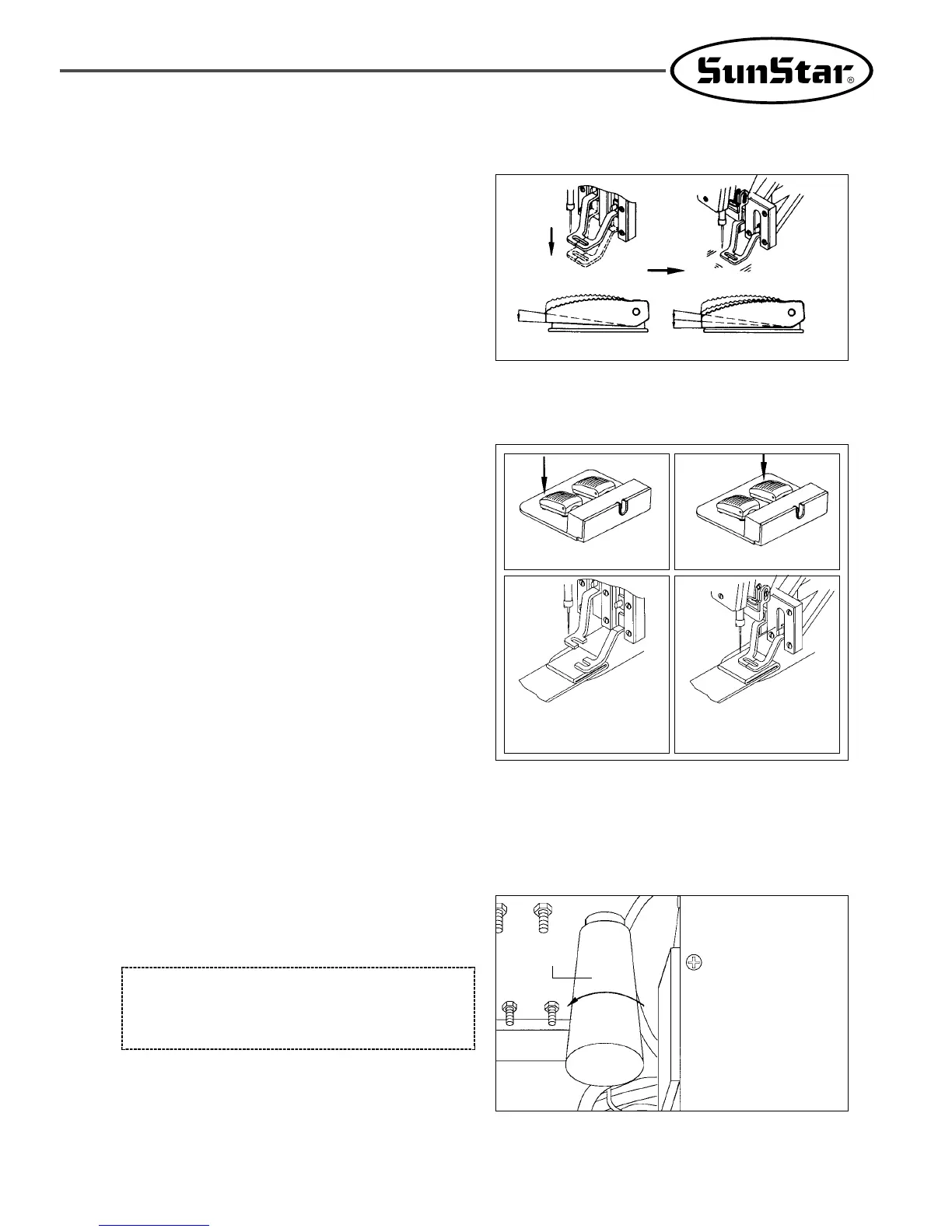

[Figure 53]
[Figure 54]
Right Pedal Operation
The location of sewing materials
can be adjusted when only the
right presser foot descends
Left presser foot goes down
upon one-step operation, Sewing
starts upon two-step operation
Left Pedal Operation
10) Disposal of the waste oil
When the oil fills up the waste oil drain located under
the table, remove and empty.
[Figure 55]
Waste Oil Drain
[Caution]
The oil may spill on the floor when you attach or remove
the waste oil drain. Be sure to place paper or cloth on the
floor beforehand.
