6) Installation of air pressure specification (HA type)
(1) How to assemble the filter regulator
Attach the filter regulator to the right side of the table leg with the bolts as shown in the Figure.

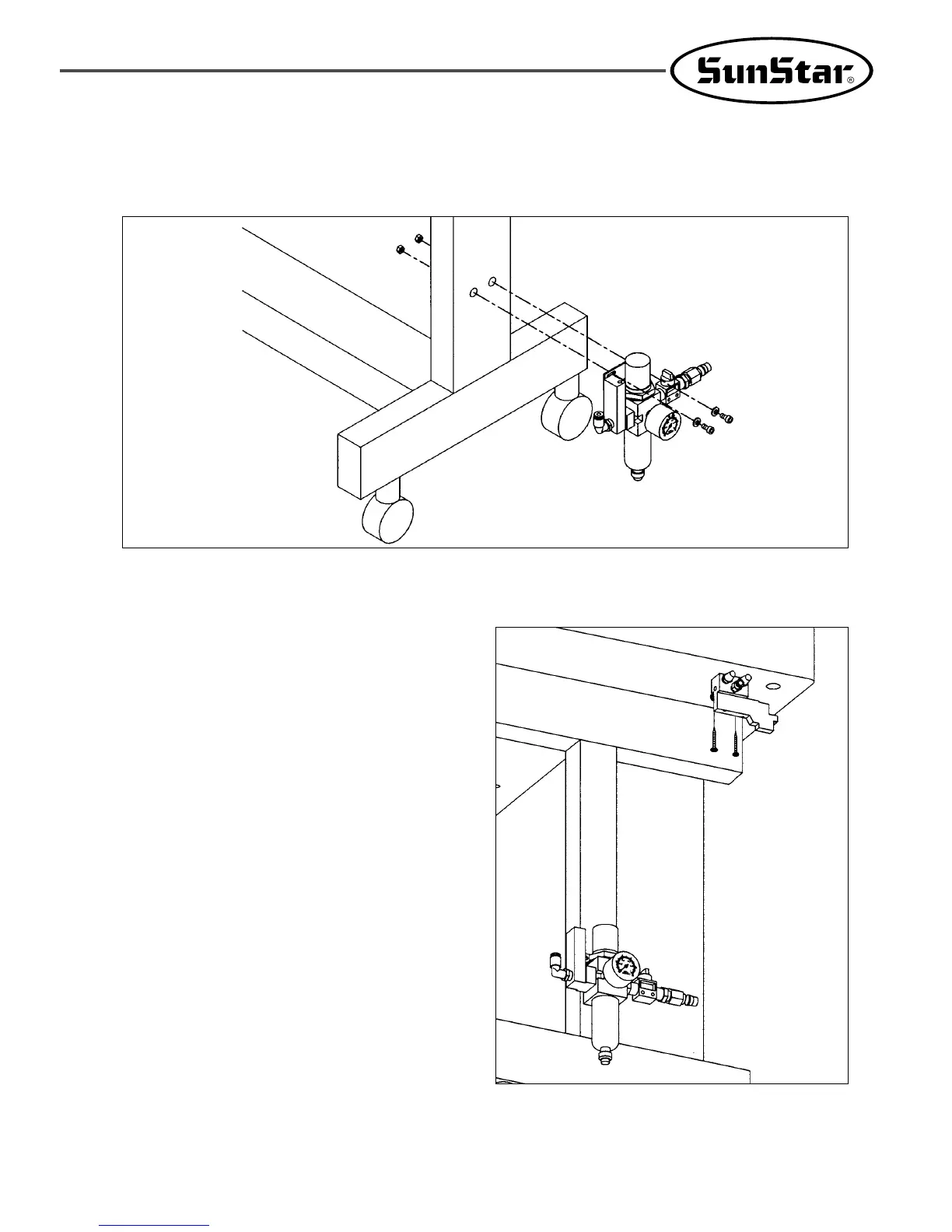

[Figure 21]
(2) How to assemble the solenoid valve
Fix firmly the solenoid valve to a proper location under
the table using the screws.
[Figure 22]
