(3) How to connect the air hose of the monolithic driven presser foot

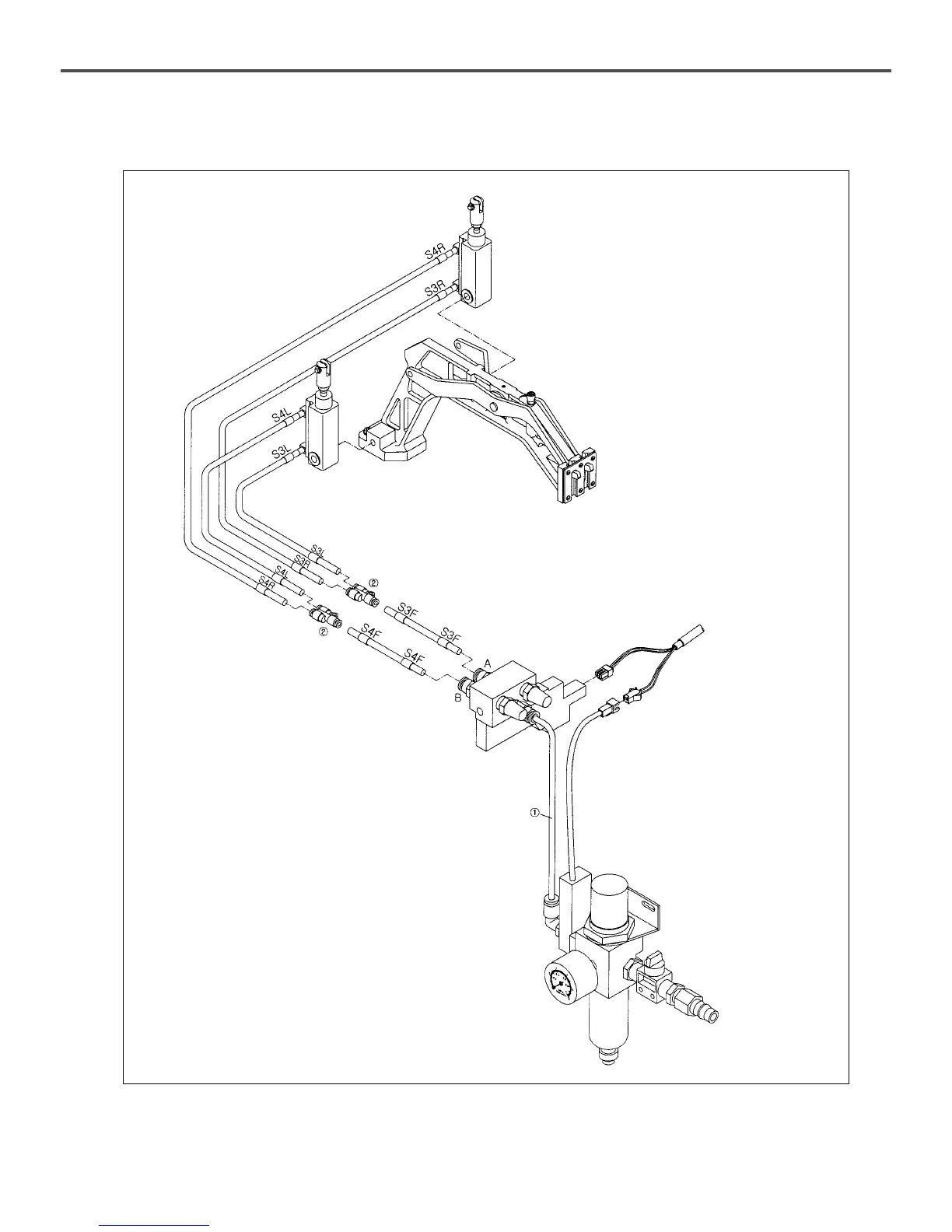

[Figure 23]
1. Connect the filter regulator and the solenoid valve
together with a hose①.
2. Insert the hoses with “S3F” and “S4F” labels into A
and B as shown in the Figure. Put in the hoses deeply.
3. Use the quick couplings② to connect S3L and S3R
and S4L and S4R.
4. Connect the solenoid and the power switch connector.
