(4) How to connect the air hose of the separate-driven presser foot

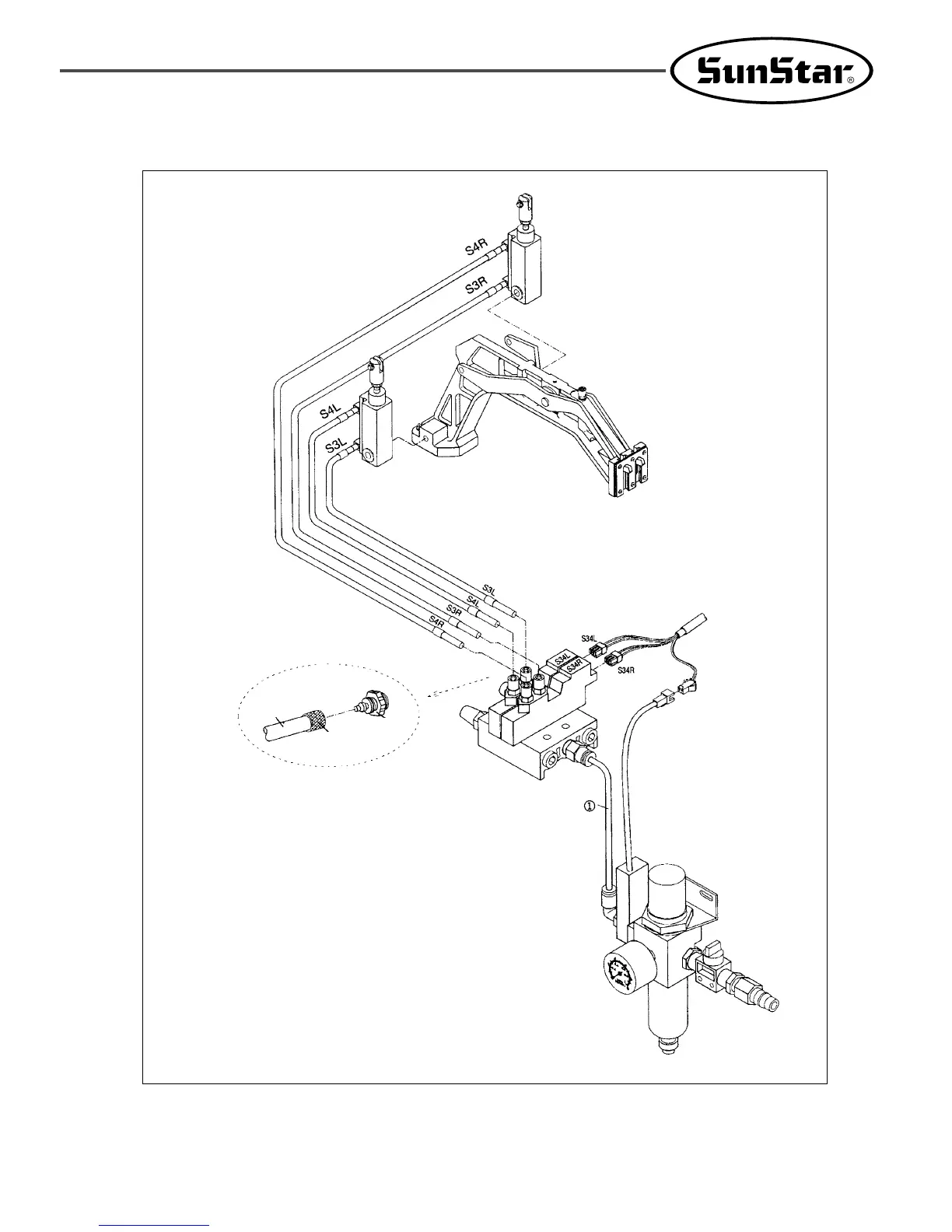

[Figure 24]
1. Connect the filter regulator and the solenoid valve
together with a hose①.
2. Assemble the hoses with S3L, S4L, S3R and S4R
labels onto the solenoid parts as shown in the Figure.
3. Connect the solenoid and the pressure switch
connector. (Be sure to match the labels of the solenoid
and of the connectors.)
Air Hose
Cap Net
Hose Nipple
