21
[Figure 28]
[Figure 29]
[Figure 30]

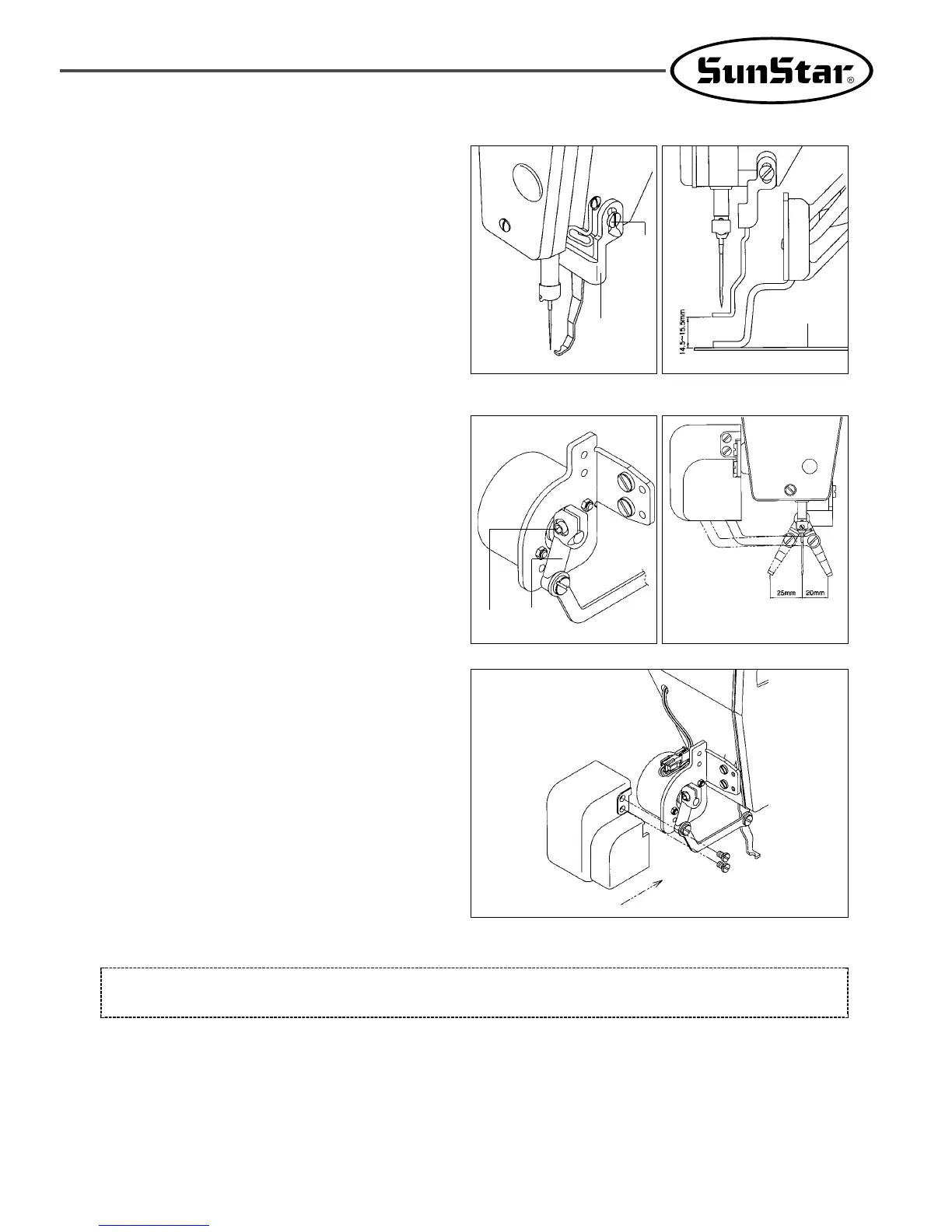

D. Un-tighten a clamp screw② of the wiper base
plate. When the wiper and the needle center are
parallel, move the wiper base plate③ up and down
to give a clearance of 14.5~15.5mm between the
needle plate① and the wiper. Fasten back the
clamp screw② afterwards.
E. Unfasten the wiper crank screw④. Move the wiper
crank⑤ left and right to set a clearance of 25mm
between the needle center and the wiper. Tighten
back the clamp screw④ after adjustments.
F. After arranging the connectors as shown in the
Figure, use the wiper cover clamp screw⑦ to place
the wiper cover⑥.
⑥
⑦
[Caution]
To use the wiper solenoid, set function code A-18 related to general sewing at “100”.
②
①
③
④
⑤
