2.4.6 IO Port Interface

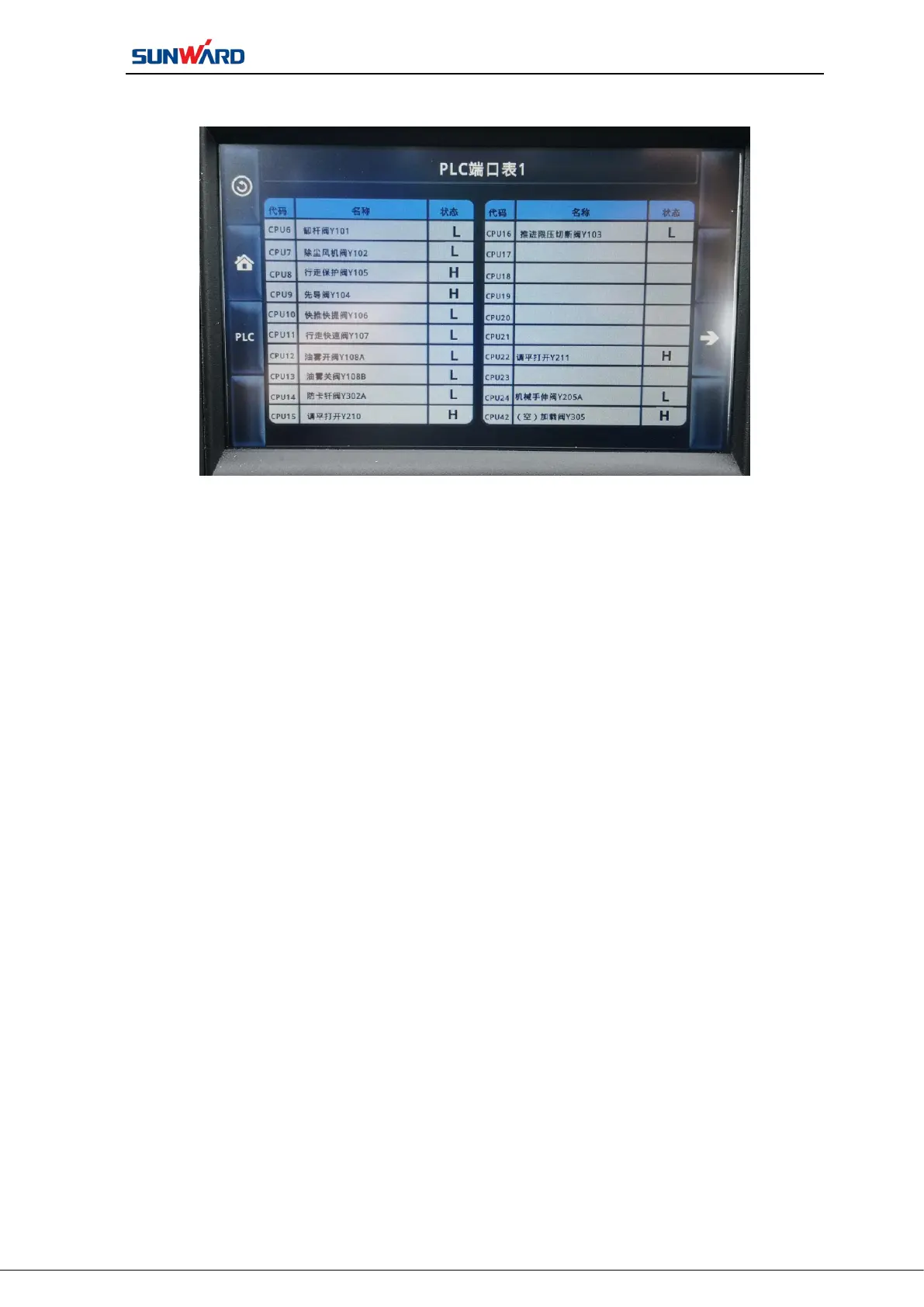

Figure 3.8 IO Port Interface
Press “IO Port” on main operating interface (figure 3.2) to enter “IO Port
Interface”. Click the corresponding button on the interface to perform corresponding
operation:
This interface can search the numerical state of each port of the controller, such as“CPU6
hydraulic oil temperature”, the port value is 50 ohms in this time.
