OPERATION & MAINTENANCE MANUAL SWDE120B-3
2.12 SEAT ADJUSTMENT
The operator’s seat can offer best
comfort since it is designed
complying with the latest ergonomics.
The surface, back and height of the seat
is adjustable and can meet with all the
request of different operator.

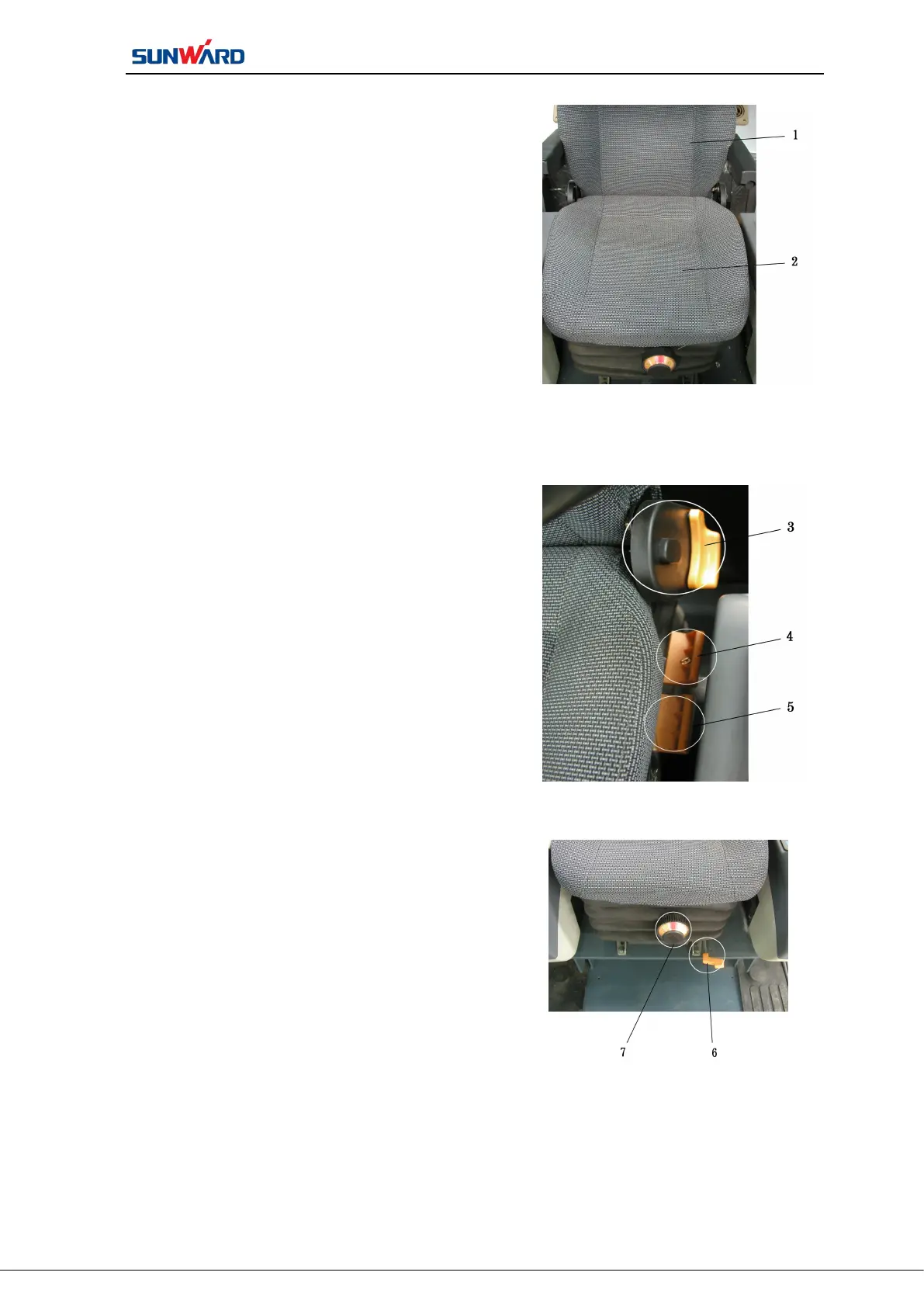

The seat, equipped with hydraulic shock
absorber, is adjustable. (See picture on
the right)
1. Press button 7 to adjust the seat
according to the operator’s weight.
2. Pull handle 3 to adjust the angle of the
backrest 1 to make the operator feel
more comfortable
3. Pull handle 4 to realize right inclining
of the seat board 2.
4. Pull handle 5 to realize front inclining
of the seat board 2.
5. Turn button 7 to adjust the shock
absorbing ability of the seat.
6. Pull rod 6 to realize position adjusting
from front to back
1. Backrest 2. Seat Board 3. Adjusting
Handle for Backrest Angle
4. Adjusting Handle for right inclining of
seat board.
5. Adjusting Handle for front inclining of
seat board
6. Pulling Rod for seat adjusting between front and back.
7. Shock Absorbing Ability Adjusting Button
