OPERATION & MAINTENANCE MANUAL SWDE120B-3
4.3 USING AUXILIARY BATTERY
ATTENTION
1. Please keep the battery away from
flame or any sparkle since explosive air
would be produced during charge or
usage. Charge the battery in
well-ventilated area and place it on dry
hard or concrete ground instead of steel
plate. If placing battery on steel plate,
sparkles may be produced. Never
connect the anode pole with cathode pole
as it would result in short circuit.
2. Operator should sit on the seat to control the machine when starting the engine. For
straddle starting, it is a kind of operating by two persons simultaneously.
【IMPORTANT】
The electrical system of the machine is 24 voltage, cathode connected with ground. And it is
only available for 24 voltage accessorial battery.

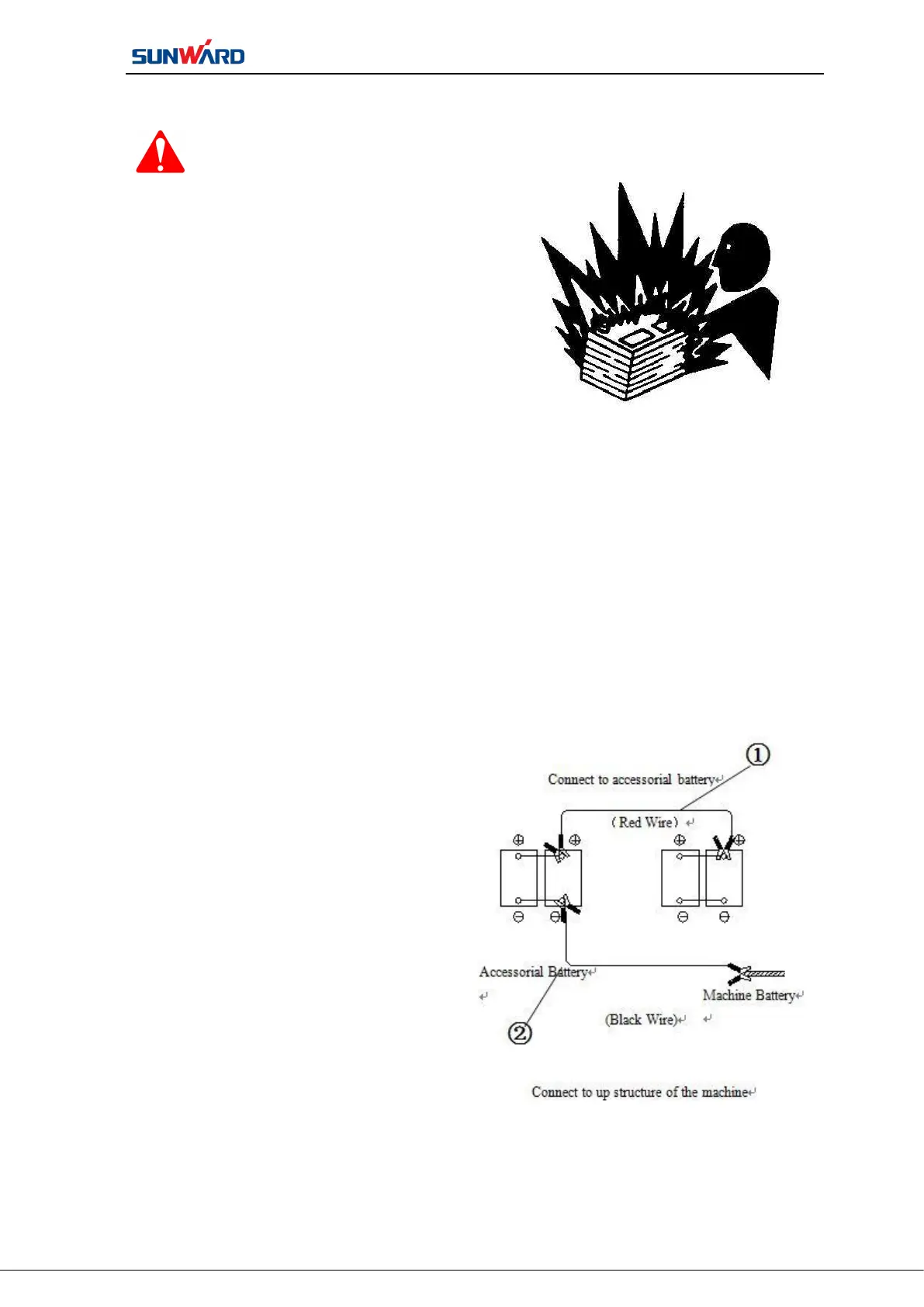

When the battery is used up, start the engine with accessorial battery as the following steps
1. Connect accessorial battery
a. Stop the engine equipped with
accessorial battery.
b. Connect one end of the red wire ①
with anode pole （ + ） of the machine
battery. Connect the other end with
anode pole （+） of accessorial battery.
c. Connect one end of the black wire ②
to cathode pole （ - ） of accessorial
battery. Connect the other end of the
black wire ② to machine structure
frame as ground wire. Keep it away
from the red wire connected to machine
battery when connecting the black wire
to machine frame.
