2.13 PILOT LEVER AND SWITCHES CONTROL

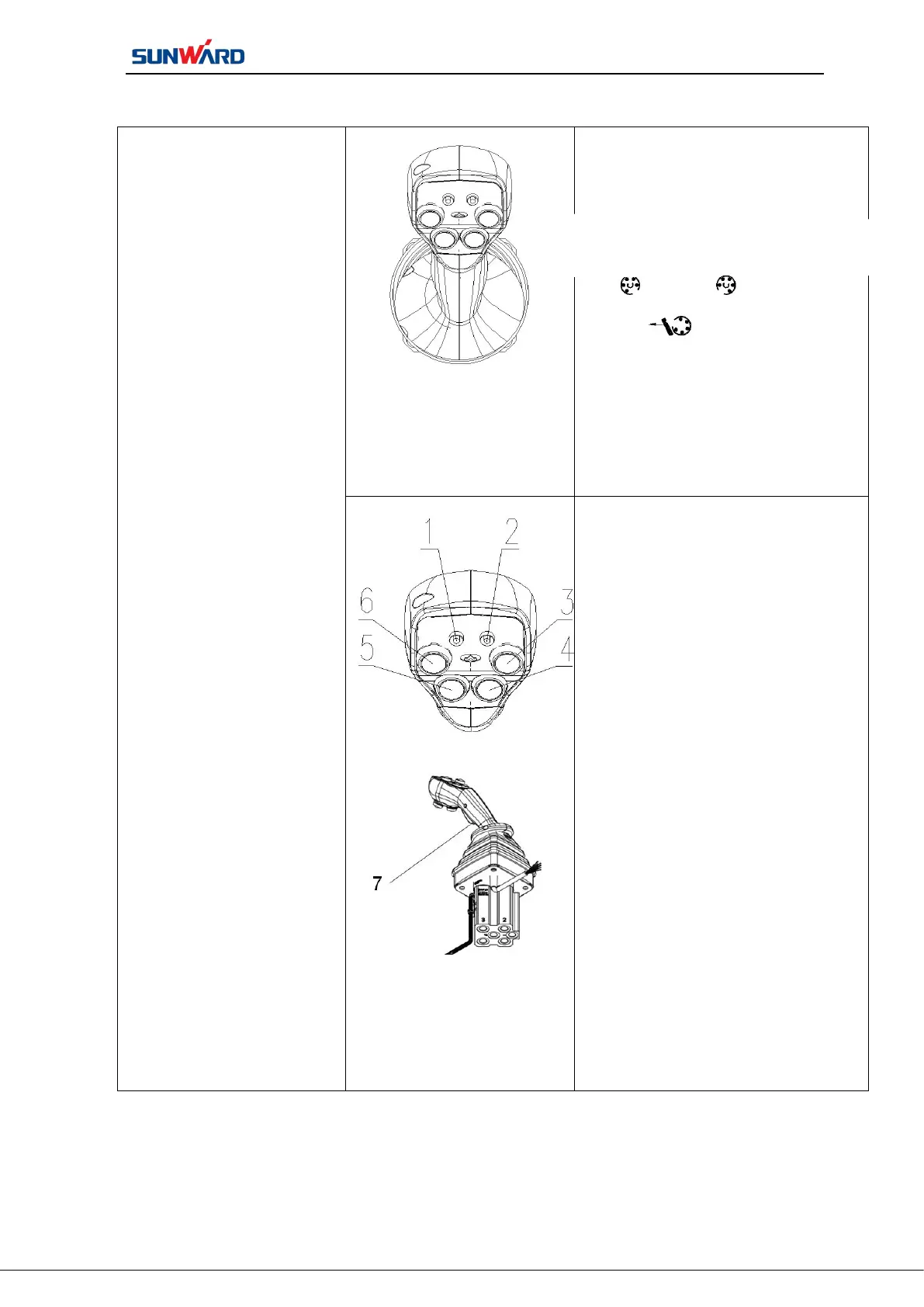

Left Lever
(Walvoil)
Note: only when clamping claw
opens
1-Indicator light, standby；
2-Indicator light, standby;
3-Fan switch;
4-Drill-rod Lifting switch;
5-Horn switch;
6-Kelly lubrication button switch;
7- Claw open
Mechanical Arm In
Mechanical Arm Out
Turntable rotate
anticlockwise
Turntable rotate
clockwise
