OPERATION & MAINTENANCE MANUAL SWDE120B-3
35

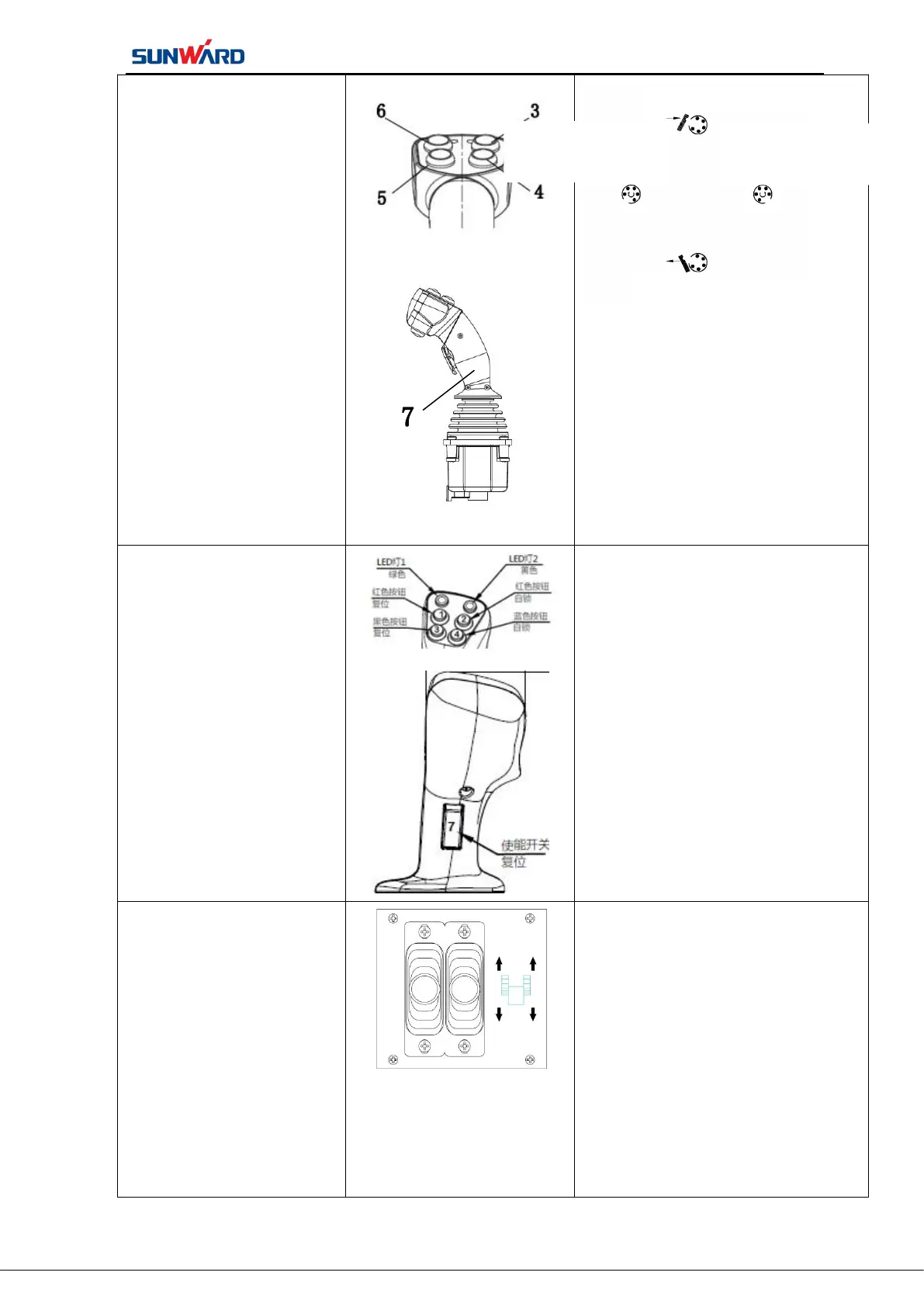

Left Lever
(Saline)
Note: only when clamping claw opens
3-Fan switch;
4-Drill-rod lifting switch;
5-Horn switch;
6-Kelly lubrication button switch;
7- Claw open
Left Lever
(Xiaolong)
LED 1-Indicator Light, standby；
LED 2-Indicator Light, standby;
1-Lubricationg switch;
2-Fan switch;
3-Horn switch;
4- Drill-rod lifting switch;
7- Claw open
Travel Lever
Left Front:
Left crawler move forward
Left Rear:
Left crawler move rearward
Right Front:
Right crawler move forward
Right Rear:
Right crawler move rearward
Mechanical boom in
Mechanical boom out
Turntable rotate
anticlockwise
Turntable rotate
anticlockwise
