OPERATION & MAINTENANCE MANUAL SWDE120B-3
10. STRUCTURE AND WORKING THEORY
The machine is impacting rotating type hole drilling rig. Main components are feed
system, rotating assembly, drill boom, drill frame, compensation cylinder, slide frame, lifting
cylinder, rod carousel, rod discharger, dust hood, dust collection device, travel frame,
machine frame, air compressor & air Press system, diesel pump group, hydraulic system &
main control valve group, cab, operating platform etc. (See picture 1 ).

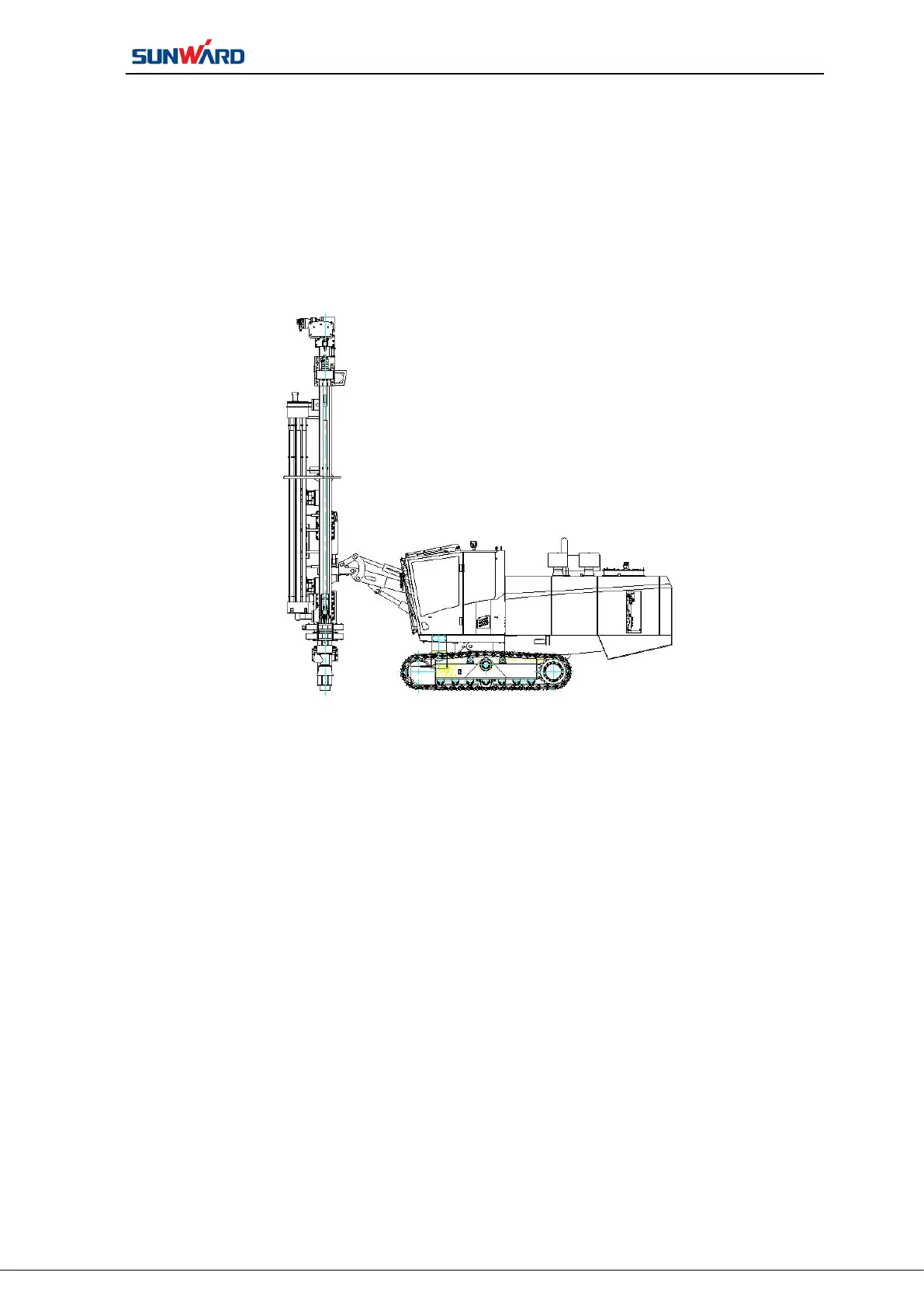

FIG.1 SWDE120B-3
10.1 DRILLING FRAME
Drilling frame is one of the main components and can guide the sliding of rotating
assembly, drilling and lifting of drilling tool. It is box truss structure welded by U-steel and
with seat fixed at its toe to support the rod and drilling tool. Connected with compensation
cylinder and sliding guide groove, slide frame, it could slide up and down. Lift compensation
cylinder, it would raise, push out compensation cylinder, its lower supporting seat would be
on working surface.
10.2 SLIDE FRAME
Slide frame is square box structure welded by steel plate. Its function is supporting and
connecting drilling frame. It is hinged by shaft and machine frame bracket. Lifting or
falling of the slide frame and drilling frame assembly, and drilling direction changing are
realized by controlling of lifting cylinder.
