Istruction Manual for Operation and Maintenance SPX-960:
- Push the joystick to “B” to let the pipe layer move back-
ward.
- Push the joystick to “C” to let the pipe layer turn left.
- Push the joystick to “E” to let the pipe layer turn right.
Buttons 4, 5, 6 and 7 are steps for pre-setting the engine
rpm.

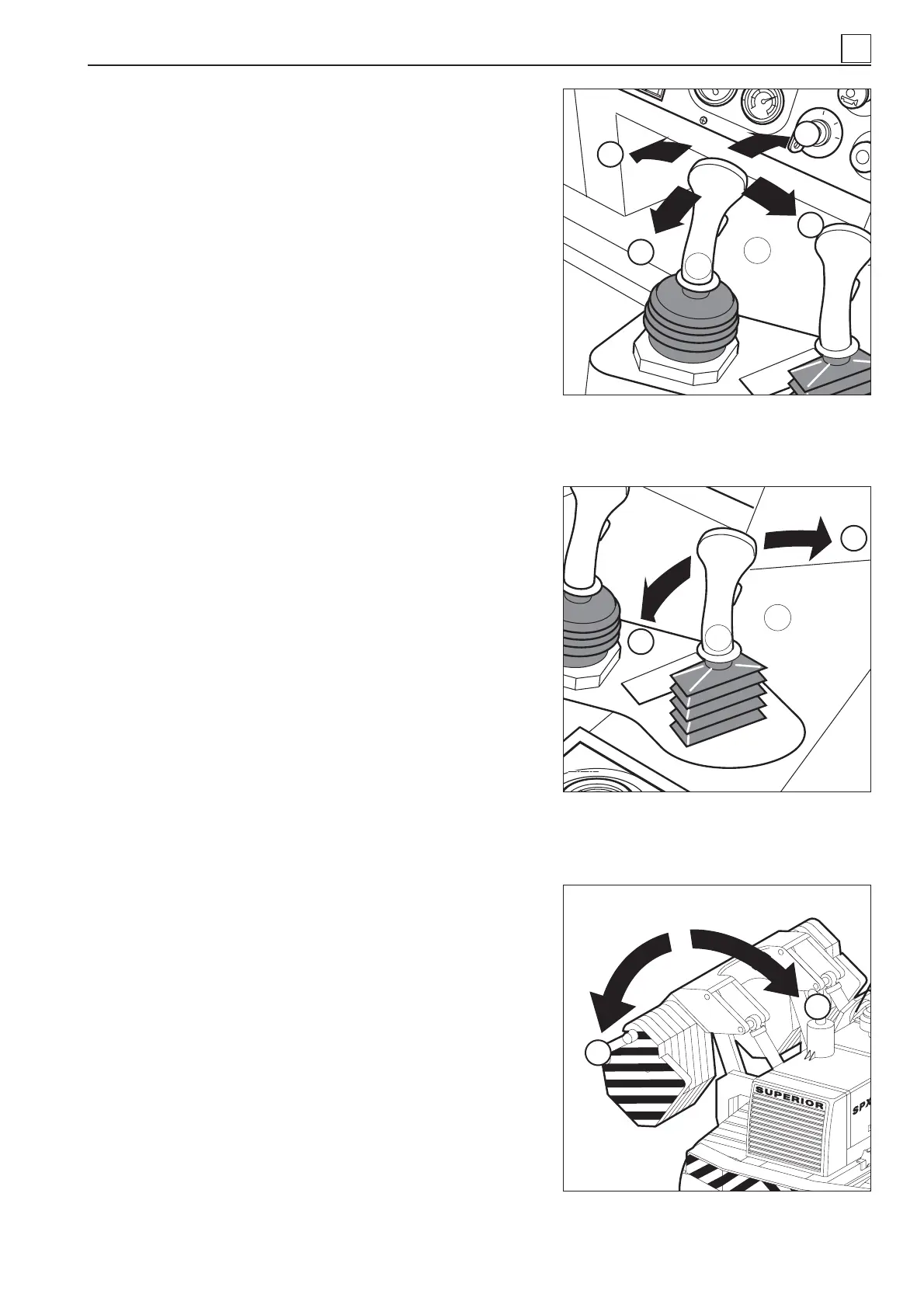

4) Multiple function joystick for hook and boom control
(Fig. 24). Press button 1 and:
- push the joystick to “A” to lower the hook;
- push the joystick to “B” to lift the hook;
- push the joystick to “C” to lower the boom;
- push the joystick to “E” to lift the boom.
5) Counterweight control lever (Fig. 25).
Press button 1 and:
- push the lever to “A” to let the counterweight out (C in
Fig. 26);
- pull the lever to “B” to let the counterweight in (D in Fig.
26).
6) Diesel engine ignition key (6 Fig. 27).
Turn the ignition key clockwise: the fi rst turn switches the
dashboard on; the second turn ignites the diesel engine
(release the key immediately after igniting the engine).
7) Red emergency button (STOP) (7 in Fig. 27).
4
Fig. 25
A
1
B
5
Fig. 26
D
C
4-9
Fig. 24
A
B
C
1
E
4
MACHINE OPERATION
