Record adjustments continued
The FILTER SELECT menu item lets you turn high
pass or band pass filters on the right or left MIC/LINE
inputs on or off.
How to select filters (FILTER SELECT)
F
ILTER SPECIFICATIONS
Frequency BAND PASS BAND PASS HIGH PASS
OFF ON ON
20Hz 0dB -48dB -48dB
50Hz 0dB -24dB -24dB
100Hz 0dB -6dB -12dB
250Hz 0dB 0dB 0dB
500Hz 0dB 0dB 0dB
1kHz 0dB 0dB 0dB
5kHz 0dB 0dB 0dB
10kHz 0dB -6dB 0dB
15kHz 0dB -12dB 0dB
20kHz 0dB -24dB 0dB
PUSH
BASS
MID
TREBLE
TEXT VR PROG REPEAT MENU/STORE
DISP SINGLE
A-B CANCEL/DELETE
REC MODE
CD-RW PLAYBACK
CD RECORDING SYSTEM PSD300
MIC
PLAY
OPEN
REC/PLAY
ERASE FINALIZE
REC
SELECT
PUSH ENTER
POWER KEY TEMPOSTANDBY
TEXT VR PROG REPEAT MENU/STORE
DISP SINGLE
A-B CANCEL/DELETE
REC MODE
1
2
3

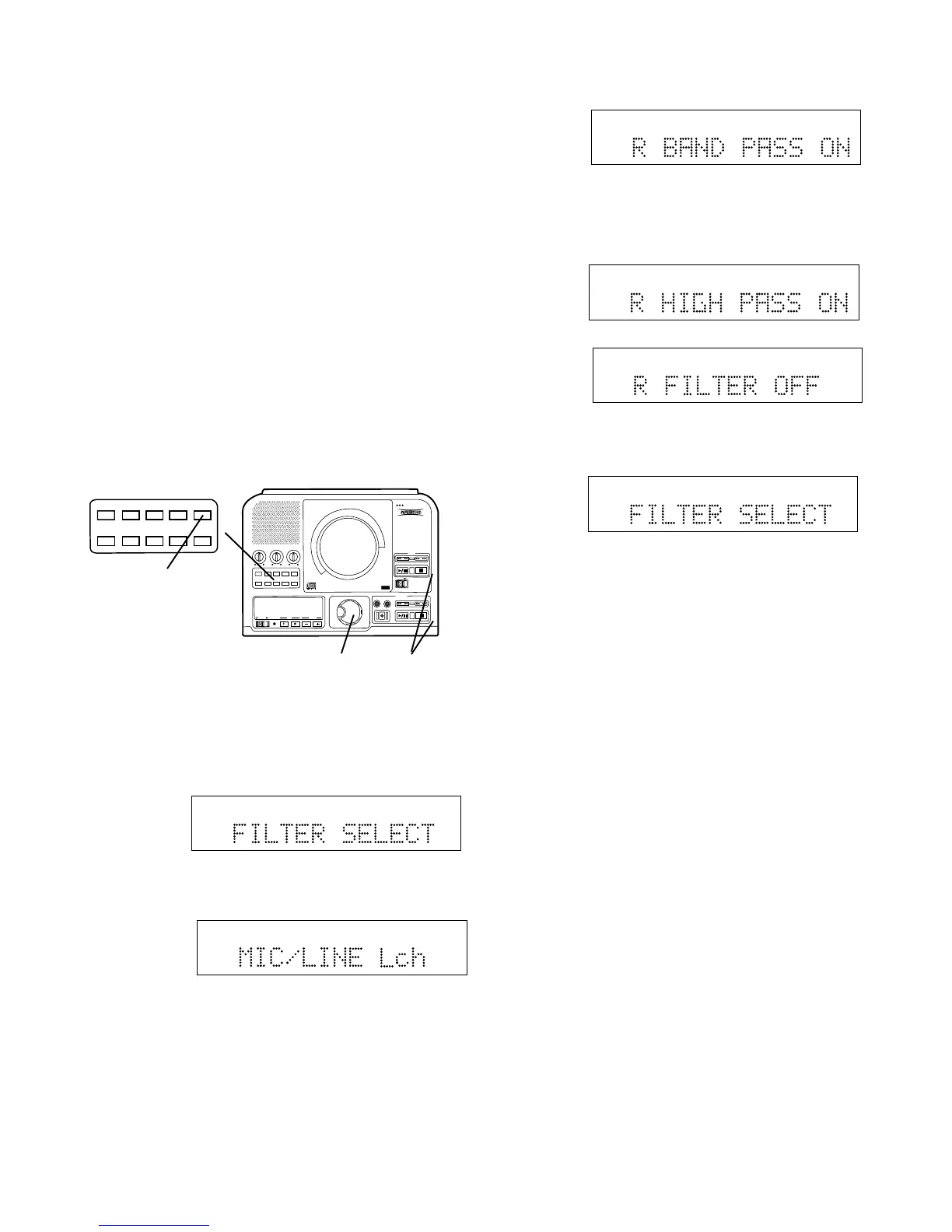

1 With the PSD300 in Stop, Play/Pause, REC or
REC Pause mode,
2 Push and release MENU/STORE.
3 Turn the SELECT control so FILTER SELECT is
displayed.
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
a Push and release the SELECT control. MIC/LINE
Lch or MIC/LINE Rch is displayed
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
Example
display.
b Turn the SELECT control to switch between Lch
(left channel) and Rch (right channel). Push and
release the SELECT control to confirm your
selection. The display switches to one of three
filter choices (BAND PASS ON, HIGH PASS ON,
or FILTER OFF).
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
Example
display.
c Push and release the SELECT control to confirm
the displayed filter selection or turn the SELECT
control to switch to the other choices.
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
d When you have confirmed your selection the
display returns to FILTER SELECT.
TOTAL TRACK
R
L
dB-50 -30 -22 -16 -12 -8 -4 0
CD
When done making filter selections push and
release MENU/STORE (2) to exit Menu mode.
