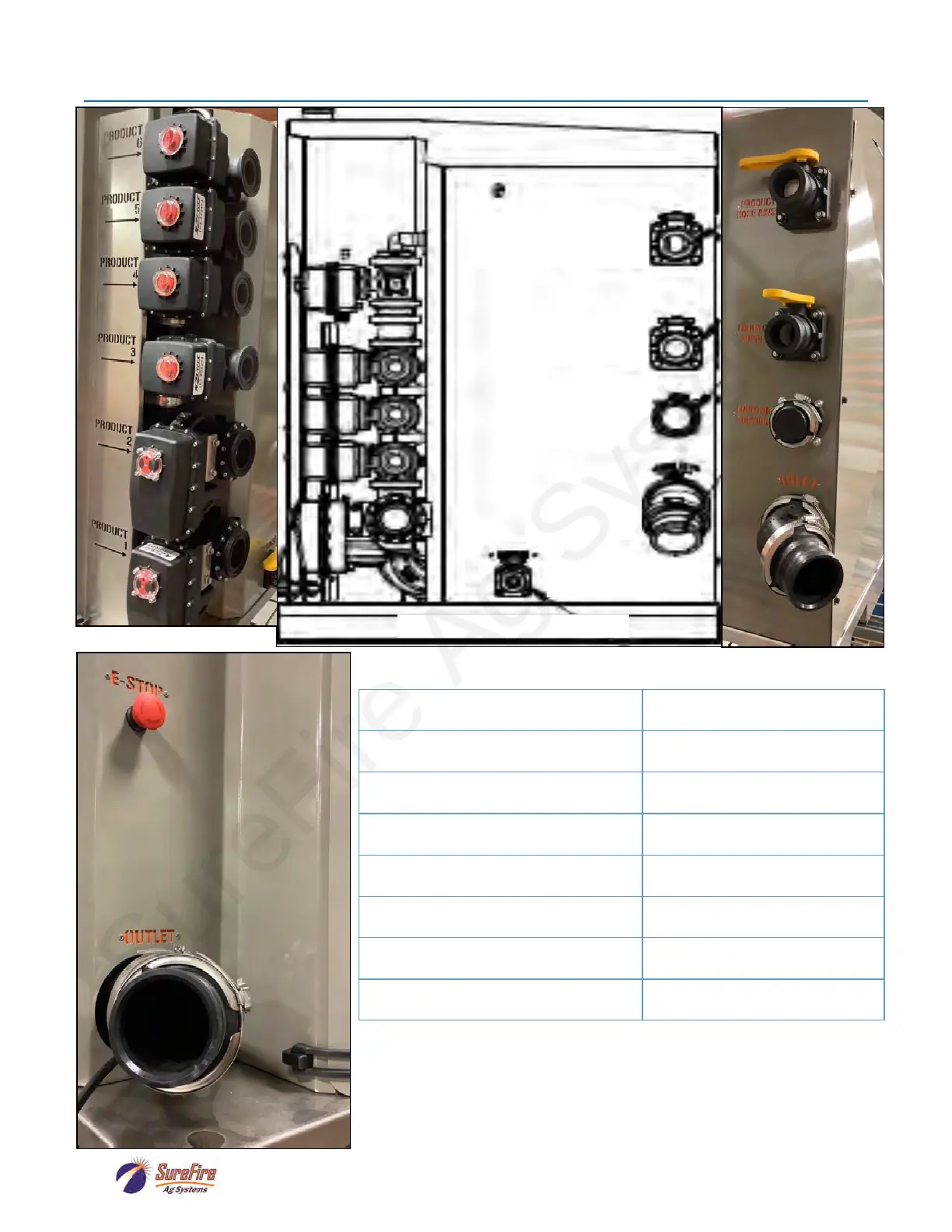

396-4412Y1 QuickDraw 3000 Operator’s Manual 53 Revised 02/20/2020
PRODUCT HOSE RINSE
EDUCTOR SUPPLY
EDUCTOR SUCTION
PUMP OUTLET
AUX RINSE
RIGHT SIDE VIEW
External Plumbing Fittings
2” Product Valve (1 and maybe 2) M220 flange
1” Product Valve (3—6 (maybe 2)) M200 flange
Product Hose Rinse 2” Male Camlock
Eductor Supply 2” Male Camlock
Eductor Suction M200 flange
Pump Outlet (Inlet to QD) 3” Male Camlock
Aux Rinse 3/4” FPT
Outlet to Sprayer 3” Male Camlock
