Surefire QuickDraw 3000 - Quickdraw Max Dimensioned Drawing

396-4412Y1 QuickDraw 3000 Operator’s Manual 57 Revised 02/20/2020

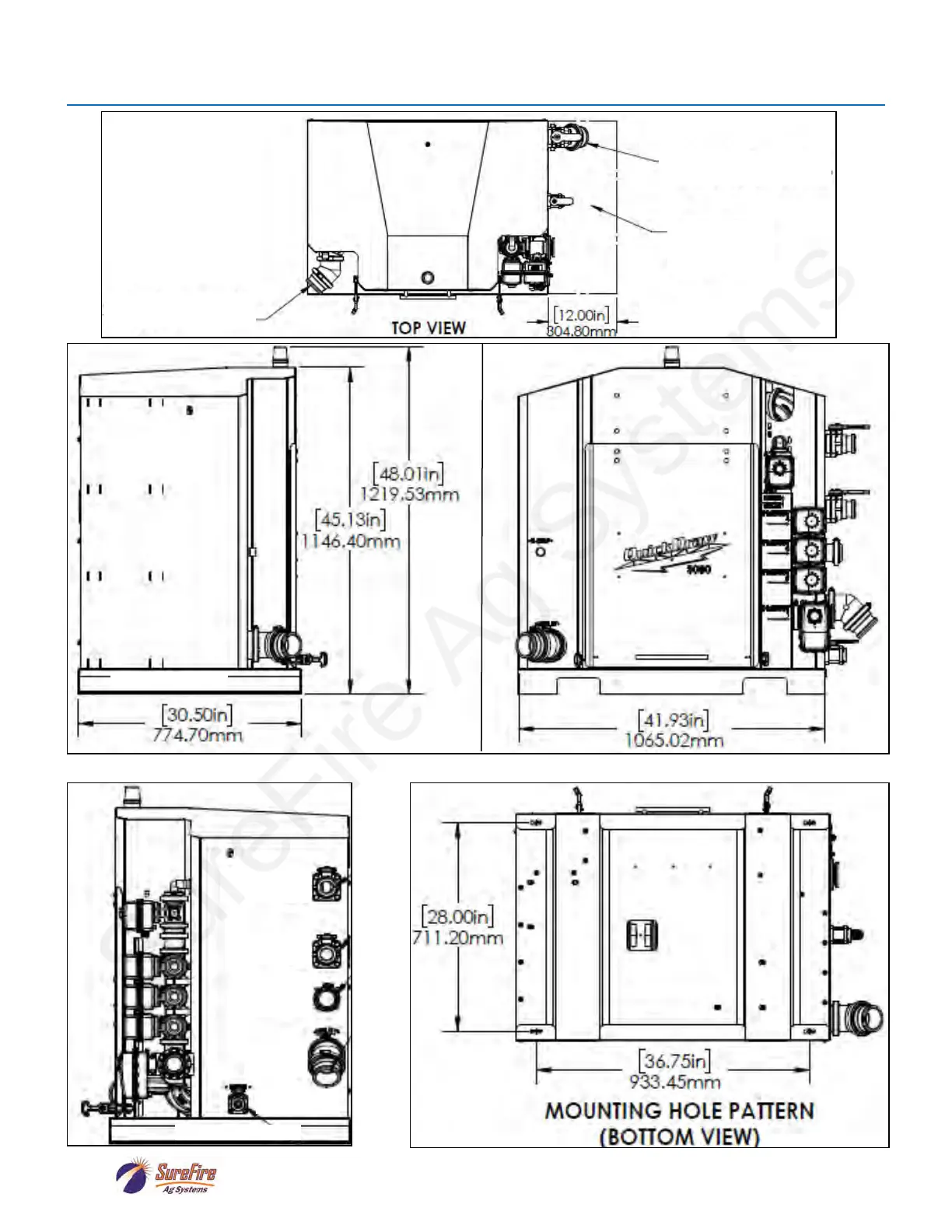

QuickDraw 3000 Dimension Drawing
PRODUCT
HOSE RINSE
EDUCTOR
SUPPLY
EDUCTOR
SUCTION
PUMP
OUTLET
AUX RINSE
RIGHT SIDE VIEW
FRONT VIEW
LEFT SIDE VIEW
QUICKDRAW INLET
FROM TRANSFER PUMP
12” Plumbing
Connection
Clearance
QUICKDRAW OUTLET
TO SPRAYER
SureFire Ag Systems
