396-4412Y1 QuickDraw 3000 Operator’s Manual 56 Revised 02/20/2020

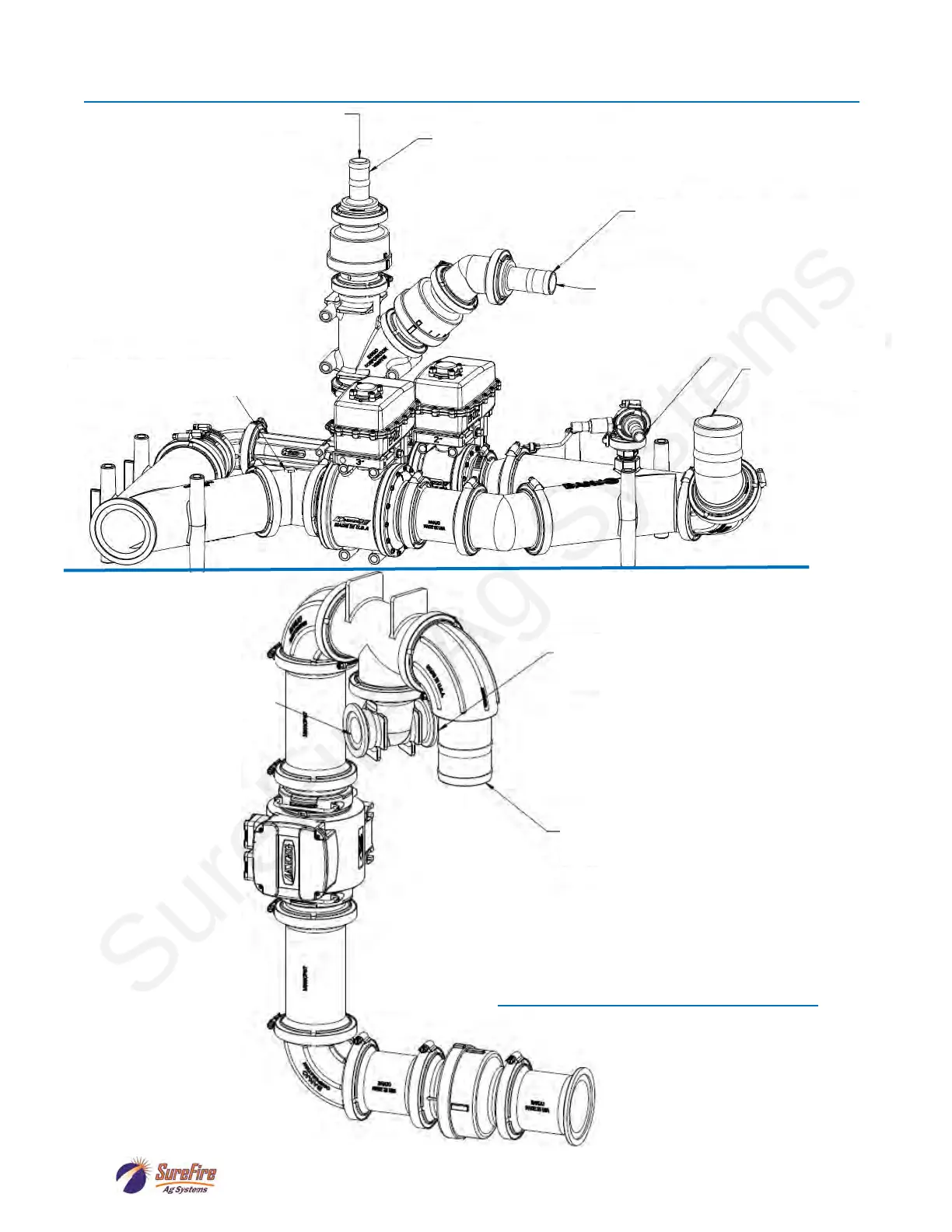

QuickDraw 3000 Main Plumbing Assembly
FLOW DIRECTION
FLOW DIRECTION
1-1/4” BRB for hose from Mass Meter
1-1/2” BRB for Inductor tank suction
Connect to 3/4” Rinse Valve
Connect to 3” Water
Install 3/8” pipe plug for sprayer
hose air-purge connector
M200 flange for connection
to Product Hose Rinse and
inductor tank supply valve
M200 flange for connection
to Automated Rinse Valve
Connect to Main Plumbing
Assembly, 476-2354Y3 with
3” wire-braided suction hose
Inlet Assembly with
3” ARAG Flowmeter
To Next Page
