396-4412Y1 QuickDraw 3000 Operator’s Manual 5 Revised 02/20/2020
Running a Batch on the QuickDraw 3000
1. Turn on the QuickDraw controller. The following steps can be done from the QD screen or from
the iPad App if it is connected to the QuickDraw.
2. Open the Job Screen. (MENU > JOB SCREEN)
3. Press on the box beside Recipe. Select a Recipe or create a new recipe.
4. On the Job Screen, select or verify the Calculation Mode (Volume & App Rate, Area & App Rate,
Individual Volume, or Area and Carrier Rate).
5. Depending on Calculation Mode, enter the Total Acres, App Rate, and/or Total Volume for the
batch.
6. Enter the Preload Vol(ume) (this is how much carrier (water) will be added at the start of the
batch before any other products are added).
7. Verify that the totes/chemicals shown are correct and connected to the valve shown.
8. Verify/change the Rate for each product. Rates can be changed on this screen to be effective for
this batch. To only change the rate for this batch, do NOT press SAVE. To change a rate for this
batch and for all future batches with this recipe, make the change and then press SAVE. The
recipe will be saved with the new rate.
9. Verify the Order that products will be added. If Order needs to be changed, press EDIT at the
bottom of the screen and make the desired changes.
10. Press on Field/Weather to enter Grower, Farm, Field, Operator, Crop, Machine, Pest, Temp,
Wind Speed / Direction and Boom Height. These are optional entries, but will add information
to the historical record for each batch. Return to Job Screen.
11. Pressing on EDIT will show the Totes with Rates and Load Order. Pressing on any blue box will
do the same thing.
12. Press on the arrow under Inv(entory) to verify/update the amount of chemical in the Tote.
13. Prod Rinse: Default and minimum time is 3 seconds; it can be set for more. The product valve
manifold will rinse for this time between every chemical that is loaded.
14. Final Rinse: Default and minimum time is 10 seconds. Longer times may be used. After all
products/chemicals are loaded the product valve manifold will rinse for this amount of time.
15. Verify that Prod Volume and Total Gallons for each product appear reasonable for this batch
and that there is enough product in each tote to complete the batch. See Inv(entory) above.
16. Verify that all tote valves are
in correct position and that all
hoses are connected
properly.
17. When all is ready on the Job
Screen, press RUN to go to
the RUN SCREEN (this does
NOT start the batch).
18. Start the pump when ready to
run the batch, and then, on
the RUN SCREEN, press
START.

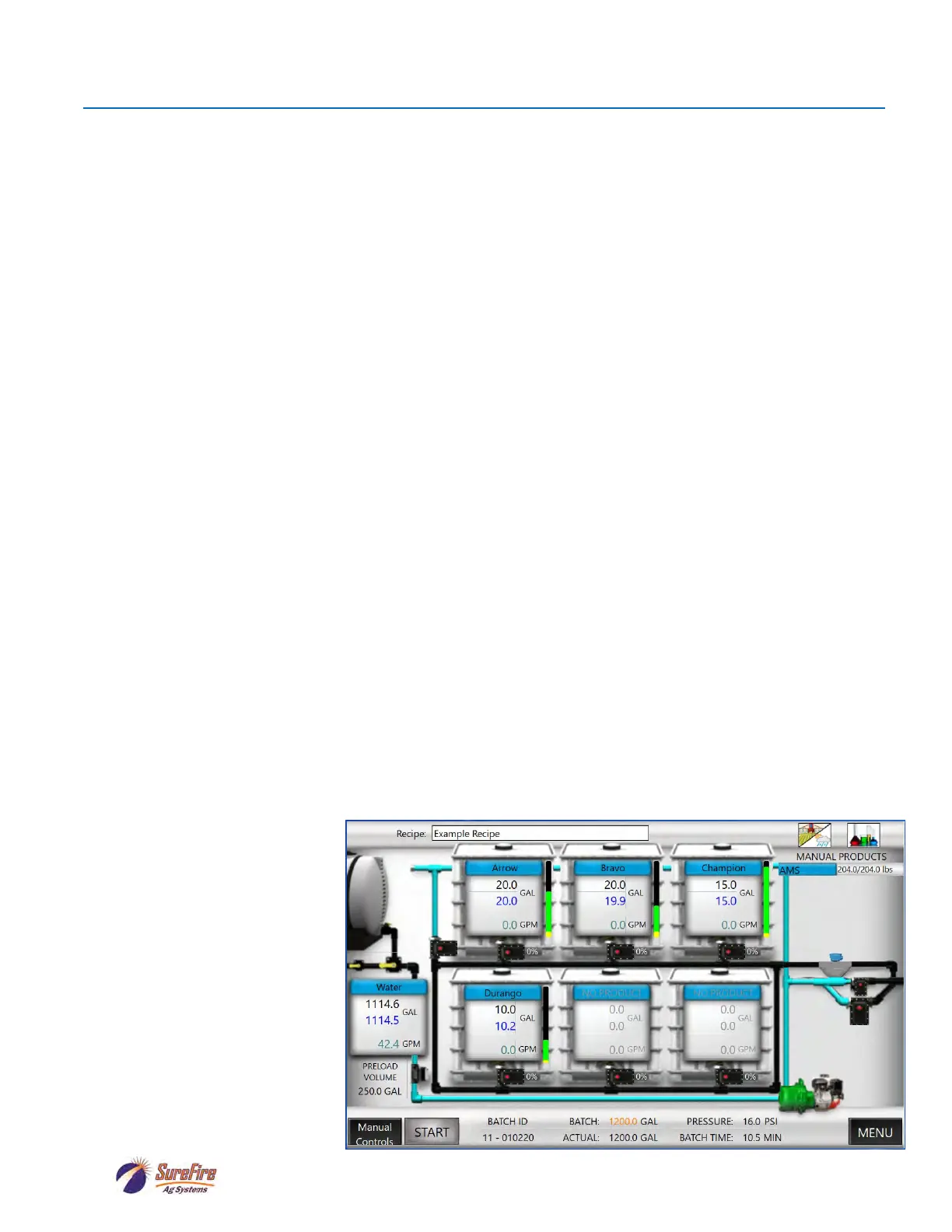

RUN SCREEN
