2.2.5. Transport Safeguards
The following transportation safeguards must be
removed before commissioning the machine.
Adjusting Table
Transportation safety screws 1 (3x) and 2 (2x) must
be removed from the adjusting table. Next, open the
clamping screws on the mask holding frame and
carefully remove the safeguards.
Also remove screw 3, which secures the X-Y
adjustment.

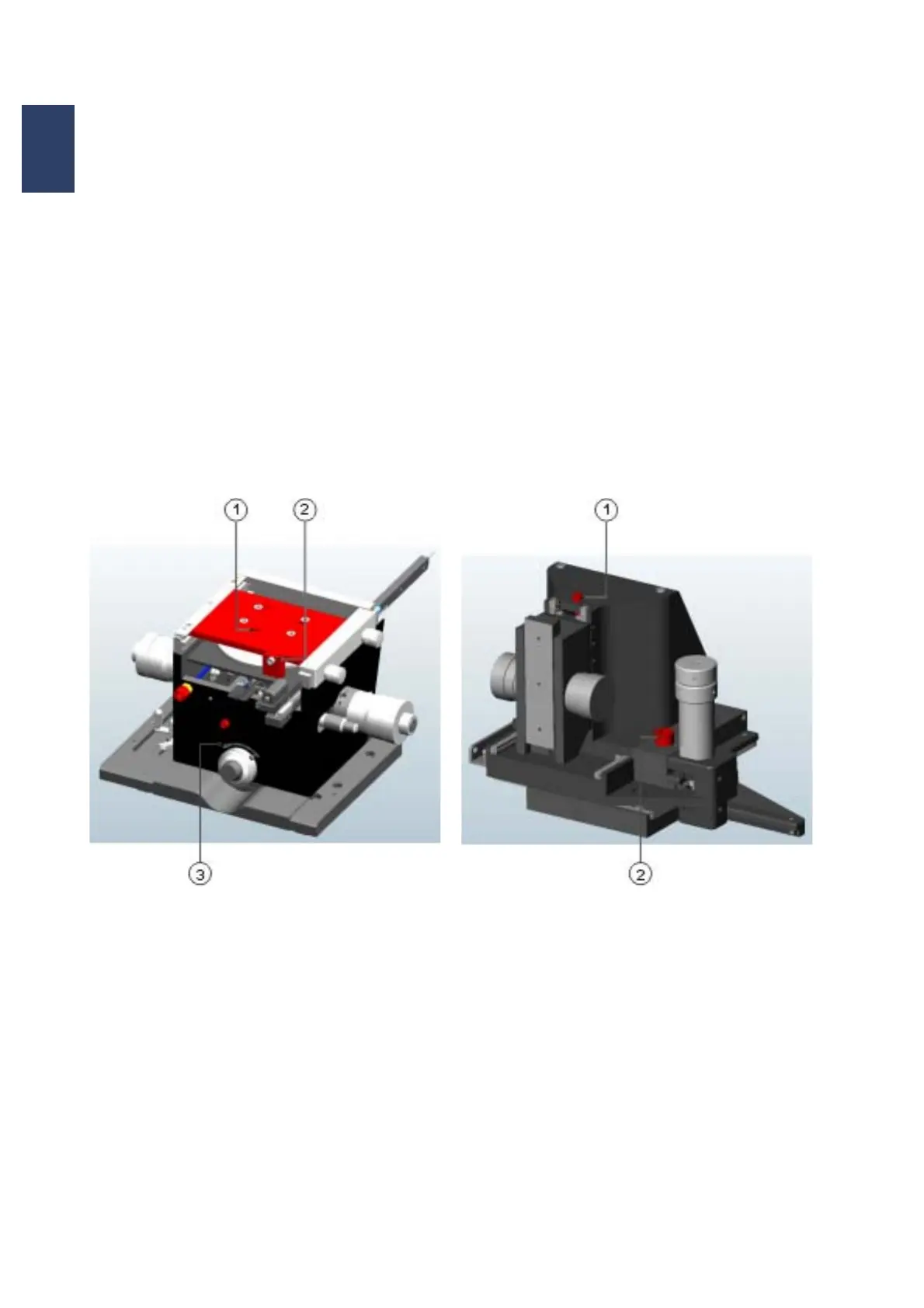

Adjusting table
1 Screw 1 (3x)
2 Screw 2 (2x)
3Screw 3
TSA Microscope Manipulator
Remove screws 1 and 2.
Screw 1 secures the microscope stroke, and screw
2 secures the X-Y adjustment on the manipulator.
TSA Microscope Manipulator
1 Screw 1
2 Screw 2
