2. INSTALLATION AND TRANSPORT
Containers must be opened and the machine must
be transported and installed by a SUSS MicroTec
service technician or person authorized by SUSS
MicroTec.
Users who open containers with system compo-
nents or install or transport the machine without a
SUSS MicroTec technician or a person authorized
by SUSS MicroTec do so at their own risk.
Power connections and supply connections (com-
pressed air, nitrogen, etc.) at the installation site
must be completely installed by the customer before
installation so the machine can be connected.
2.1. Prerequisites for Installa-
tion
The following installation prerequisites must be met
before the machine can be operated optimally:
2.1.1. Ambient Requirements
• The machine must be installed on a vibration-free
surface since vibrations can negatively influence
the machine’s function.
--> We recommend setting up the machine on a
SUSS MicroTec vibration-insulated base
frame intended for this purpose.
• The machine must be installed in a clean room.
Impurities in the air have negative effect on the
machine’s function.
--> We recommend clean room class 1000 or
better.
• The room temperature and relative humidity
should be controlled at the setup site.
--> We recommend a room temperature
between 20°C (68°F) and 22°C (72°F) and a
relative humidity between 45 and 55% (not
condensing).
• The back of the machine must be at least 10 cm
(4 in) away from the room wall. See the figure “Di-
mensions of the MJB4 Mask Aligner:” for the ex-
act dimensions of the aligner.
--> We recommend a distance of 30cm (12in).

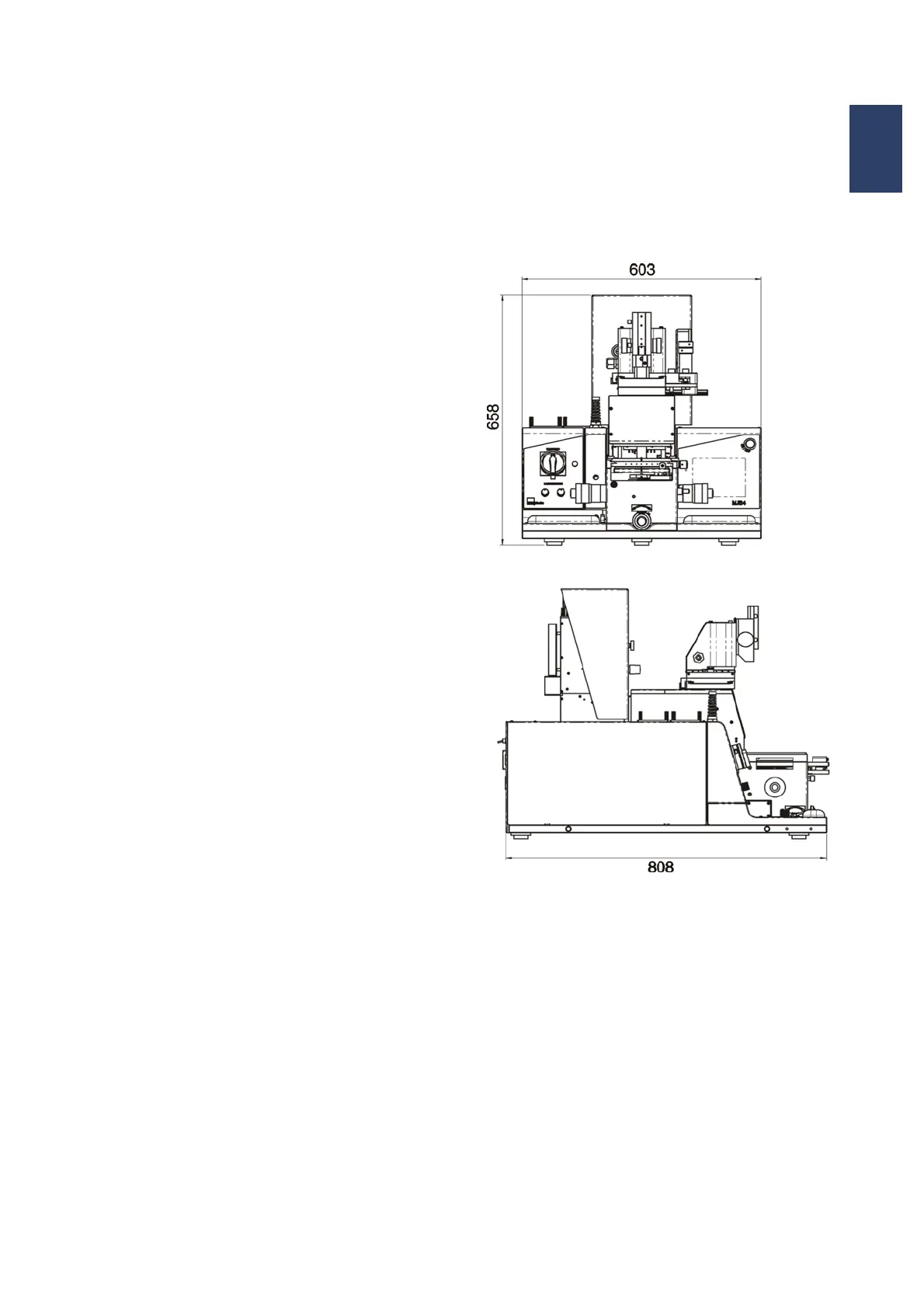

Dimensions of the MJB4 Mask Aligner:
Width: 603 mm
Depth: 808 mm
Height: 658 mm
1400 mm (with base)
Weight: approx. 150 kg MJB4
160 kg base
