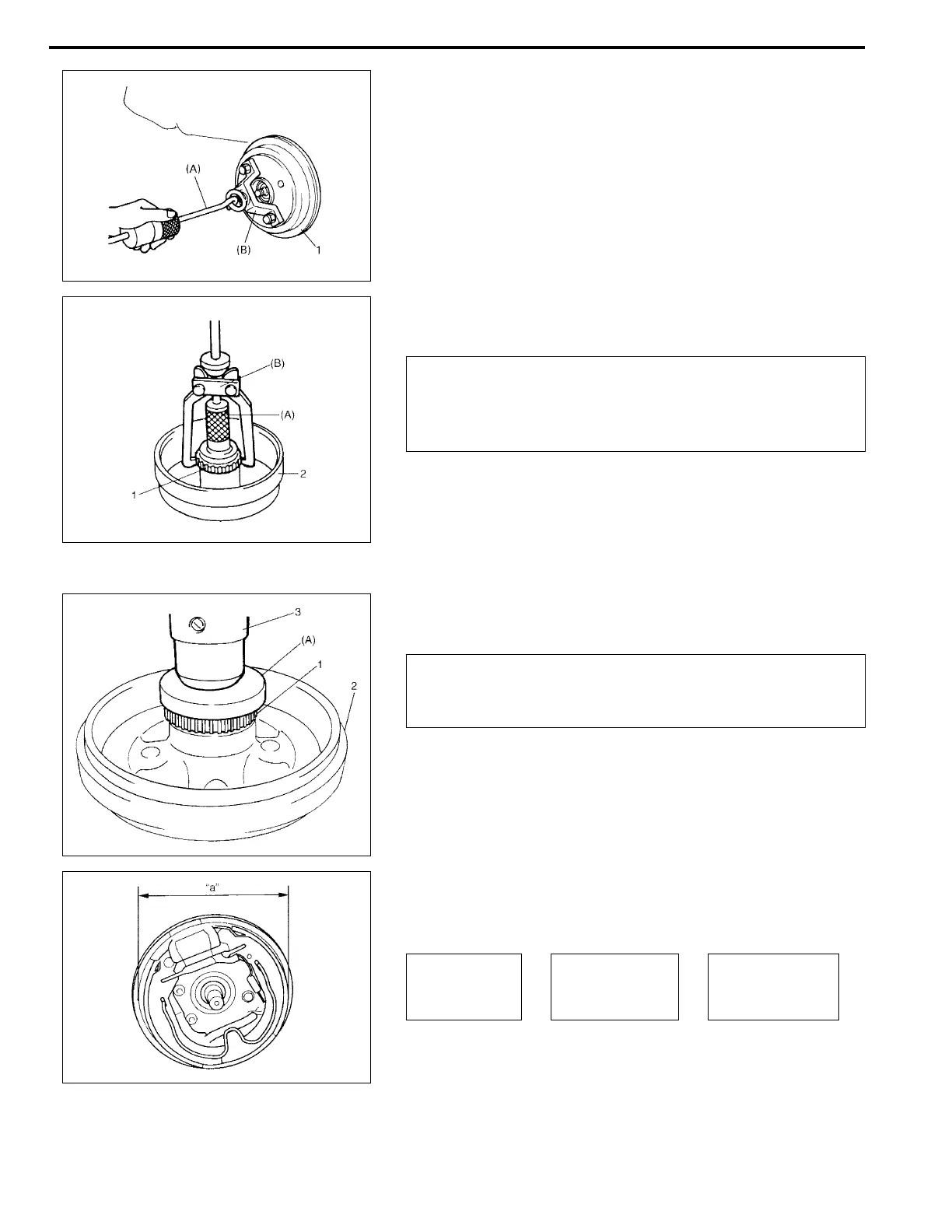

5C-6 PARKING AND REAR BRAKE
e) Pull brake drum (1) off by hand.
If it is hard to remove, use special tools.
Special tool
(A): 09942-15511
(B): 09943-17912
6) Remove sensor ring (1) from brake drum (2) using special
tool (if equipped with ABS).
Special tool
(A): 09913-75520
(B): 09913-65135
Installation
1) Install new sensor ring (1) to brake drum (2) by using special
tool and hydraulic press (3) (if equipped with ABS).
Special tool
(A): 09926-68310
2) Before installing brake drum, check outer diameter “a” of
brake shoes. If it is not within value as specified below, adjust
it to specification by turning adjuster.
NOTE:
When drum is removed, visually inspect wheel cylinder
for brake fluid leakage. Correct leaky point if any.
CAUTION:
Pull out sensor ring from brake drum gradually and
evenly. Attempt to pull it out partially may cause it to be
deformed.
CAUTION:
• Do not reuse (reinstall) removed sensor ring.
• Used sensor ring can not be press-fitted securely.
Brake shoes
outer diameter
“a”
=
Measured brake
drum inside
diameter
–
0.5 to 1.0 mm
(0.02 to 0.04 in.)
To Next Page
