0B-18 MAINTENANCE AND LUBRICATION
Manual Transmission Oil Inspection
1) Inspect transmission case for evidence of oil leakage.
Repair leaky point if any.
2) Make sure that vehicle is placed level for oil level check.

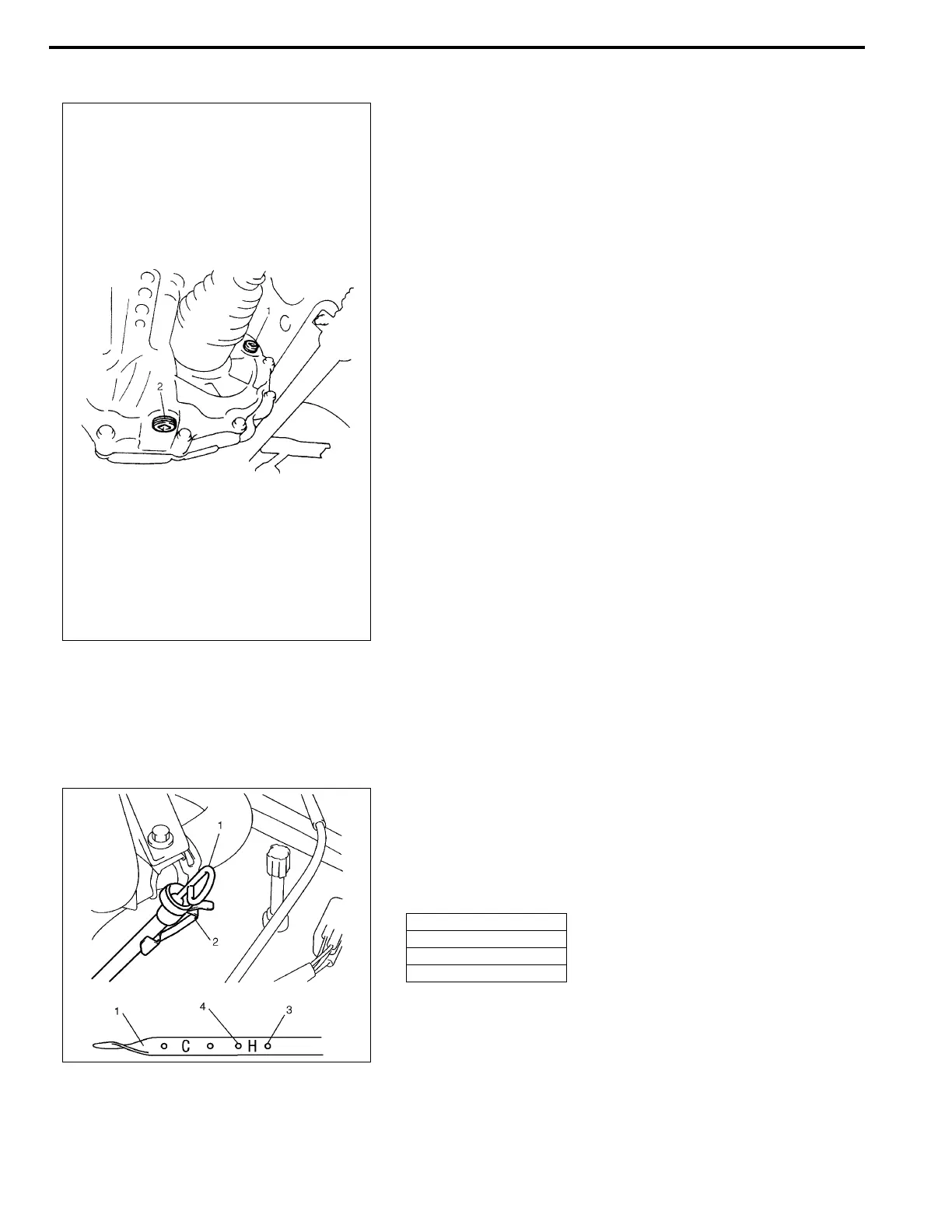

3) Remove oil filler/level plug (1) of transmission.
4) Check oil level.
Oil level can be checked roughly by means of filler/level plug
hole. That is, if oil flows out of level plug hole or if oil level is
found up to hole when level plug is removed, oil is properly
filled.
If oil is found insufficient, pour specified oil up to level hole.
For specified oil, refer to “Manual Transaxle Oil Change” in
Section 7A or 7A2.
5) Apply sealant to filler/level plug and tighten it to specified
torque.
Manual Transmission Oil Replacement
1) Place the vehicle level and drain oil by removing drain plug
(2).
2) Apply sealant to drain plug after cleaning it and tighten drain
plug to specified torque.
3) Pour specified oil up to level hole.
4) Tighten filler plug to specified torque.
For recommended oil, its amount and tightening torque data,
refer to “Manual Transaxle Oil Change” in Section 7A or 7A2.
Automatic Transmission Fluid Level Inspec-
tion
1) Inspect transmission case for evidence of fluid leakage.
Repair leaky point, if any.
2) Make sure that vehicle is placed level for fluid level check.
3) Pull out dipstick and check fluid level.
For fluid level checking procedure, refer to “Fluid Level
Check at Normal Operating (Hot) Temperature (Hot Check)”
in Section 7B and be sure to perform it under specified con-
ditions. If fluid level is low, replenish specified fluid.
1. Dipstick
2. Clamp
3. FULL HOT mark
4. LOW HOT mark
