CHARGING SYSTEM (G10/M13 ENGINES) 6H-3
Load Check
1) Run engine at 2,000 rpm and turn on head light and heater
motor.
2) Measure current and if it is less than 20 A repair or replace
generator.
Unit Repair Overhaul
Removal and installation
For G10 Engine
Refer to “Unit Repair Overhaul” in the same section of the Service Manual mentioned in FOREWORD of this
manual.
For M13 Engine
Specifications
Generator

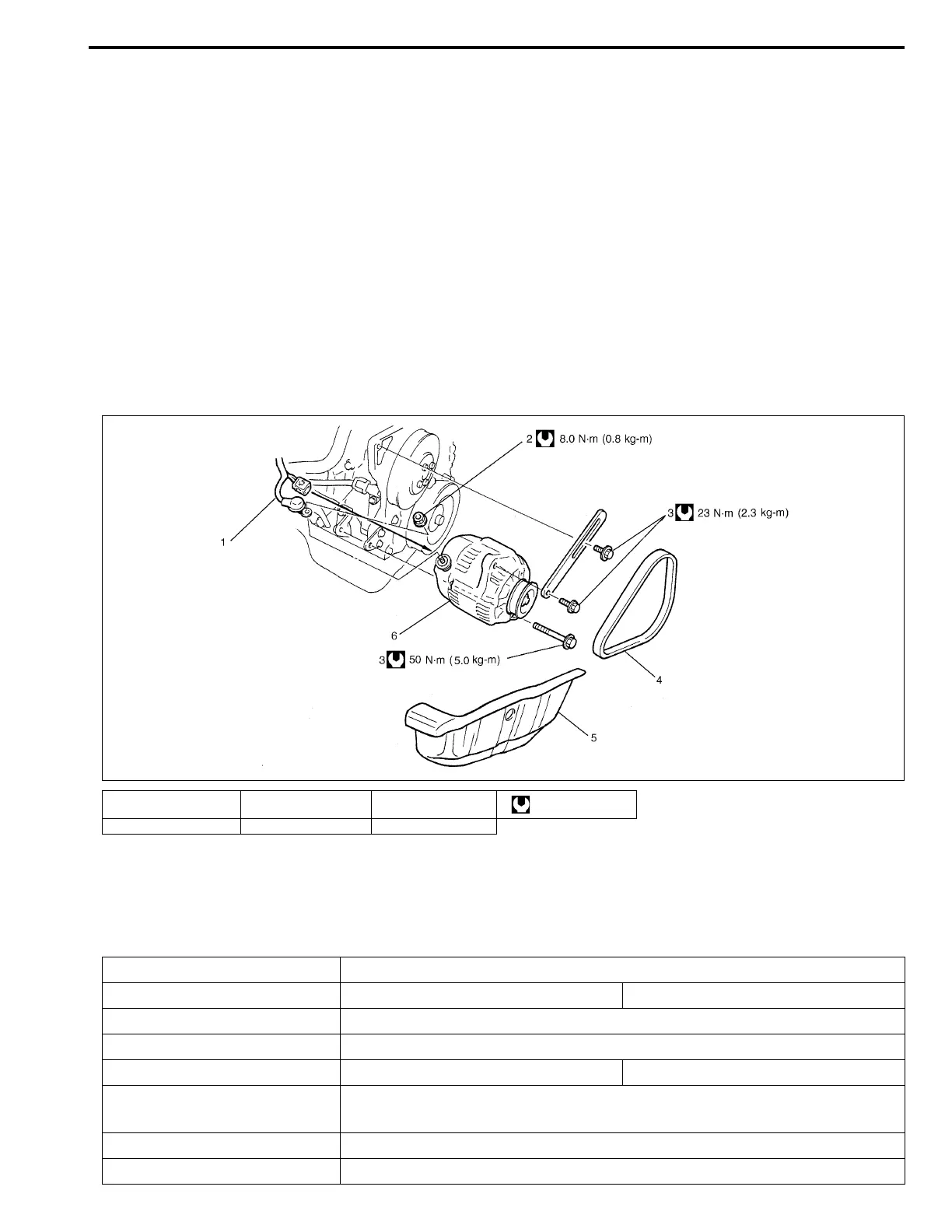

1. “B” terminal wire 3. Generator bolt 5. Splash cover Tightening torque
2. “B” terminal nut 4. Generator belt 6. Generator
Rated voltage 12 V
Nominal output 70 A 75 A
Permissible max. speed 18000 r/min.
No-load speed 1300 r/min (rpm)
Setting voltage 14.4 to 15.0 V (at 20°C (68°F) 14.2 to 14.8 V (at 25°C (77°F)
Permissible ambient
temperature
–30 to 100°C (–22 to 212°F)
Polarity Negative ground
Rotation Clockwise viewed from pulley side
