7F-14 REAR DIFFERENTIAL

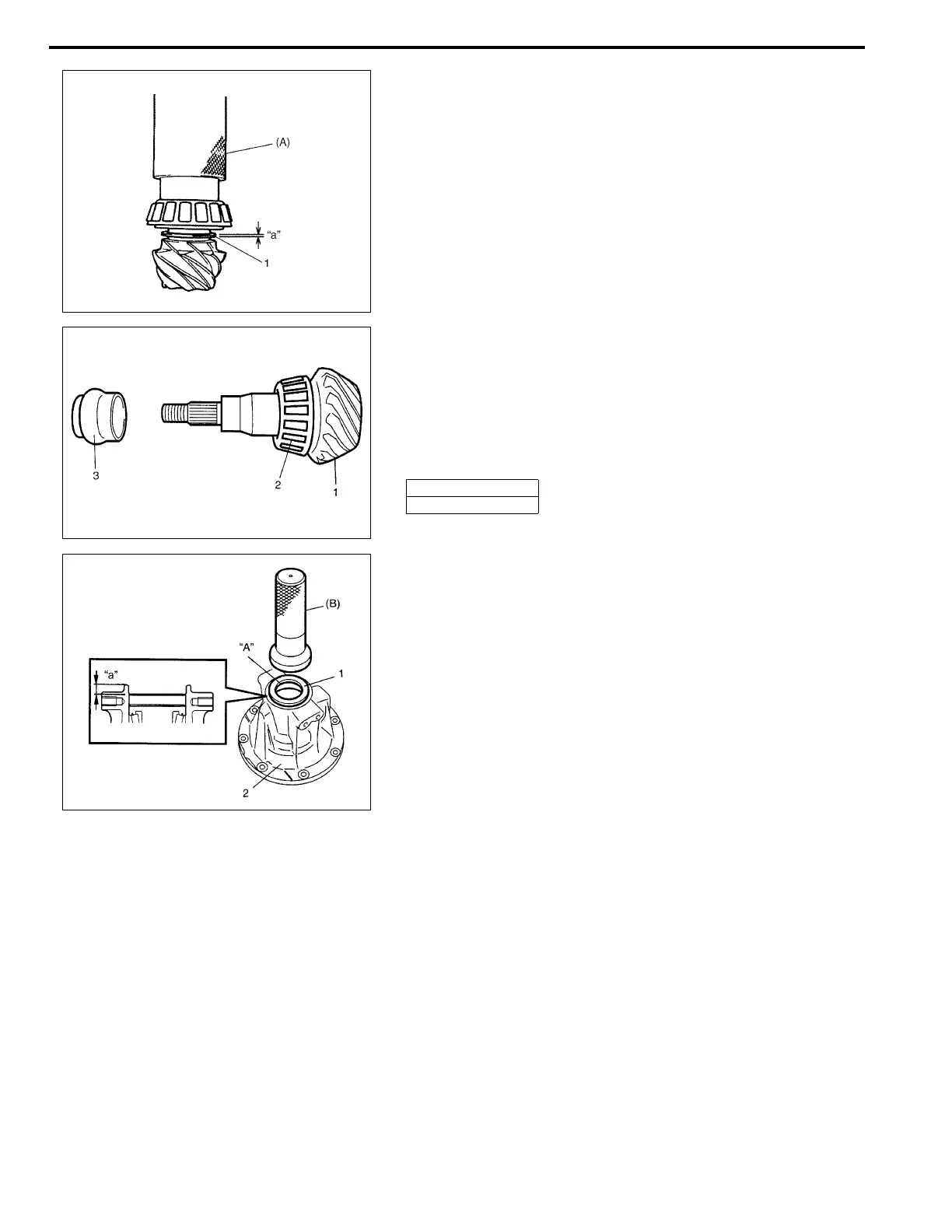

11) Select adjusting shim(s) (1) closest to calculated value from
among following available sizes and put it in place and then
press-fit rear bearing.
Special tool
(A): 09940-51710
Available shim thickness
“a”: 0.30, 1.00, 1.03, 1.06, 1.09, 1.12, 1.15, 1.18, 1.21, 1.24,
1.27, and 1.30 mm (0.012, 0.039, 0.041, 0.042, 0.043, 0.044,
0.045, 0.046, 0.048, 0.049, 0.050 and 0.051 in.)
12) With new pinion spacer (3) inserted as shown, install front
bearing to differential carrier.
13) Install new oil seal (1) into differential carrier (2) by using
special tool and hammer.
Special tool
(B): 09913-75810
Differential carrier oil seal installing depth
“a”: 7.5 – 8.5 mm (0.295 – 0.335 in.)
14) Apply grease to new oil seal lip.
“A”: Grease 99000-25010
NOTE:
• Make sure to use new spacer (3) for reinstallation.
• Apply differential oil to bearings.
1. Drive bevel pinion
2. Rear bearing
To Next Page
