AUTOMATIC TRANSAXLE (M13 ENGINE) 7B1-197

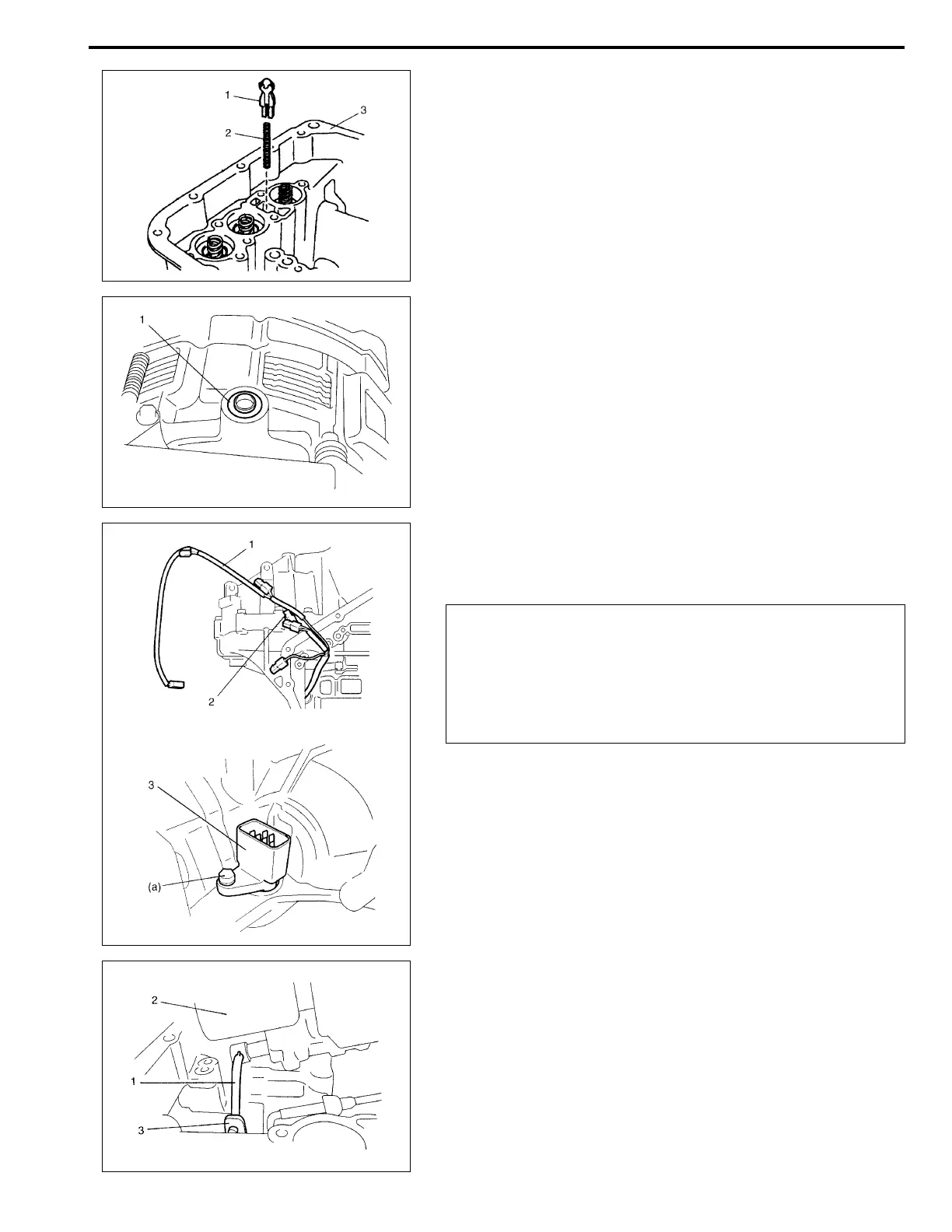

70) After applying A/T fluid to cooler check valve (1) and spring
(2), install them to transaxle case (3).
71) After applying A/T fluid to new governor apply No.1 gasket
(1), install it to transaxle case.
72) After applying A/T fluid to new O-ring, fit it to valve body har-
ness connector (3), then install valve body harness to tran-
saxle case.
Tightening torque
Valve body harness connector bolt
(a): 5.5 N·m (0.55 kg-m, 4.0 lb-ft)
73) Install manual valve rod (1) to manual valve lever (3) and
then install valve body assembly (2) to transaxle case.
CAUTION:
When put valve body harness (1) into transaxle case,
take care not to damage transmission fluid temperature
sensor (2) at narrow entrance of case.
Careless sensor treatment might cause sensor malfunc-
tion.
