MANUAL TRANSAXLE (M13 ENGINE) 7A2-13
Unit Repair Overhaul

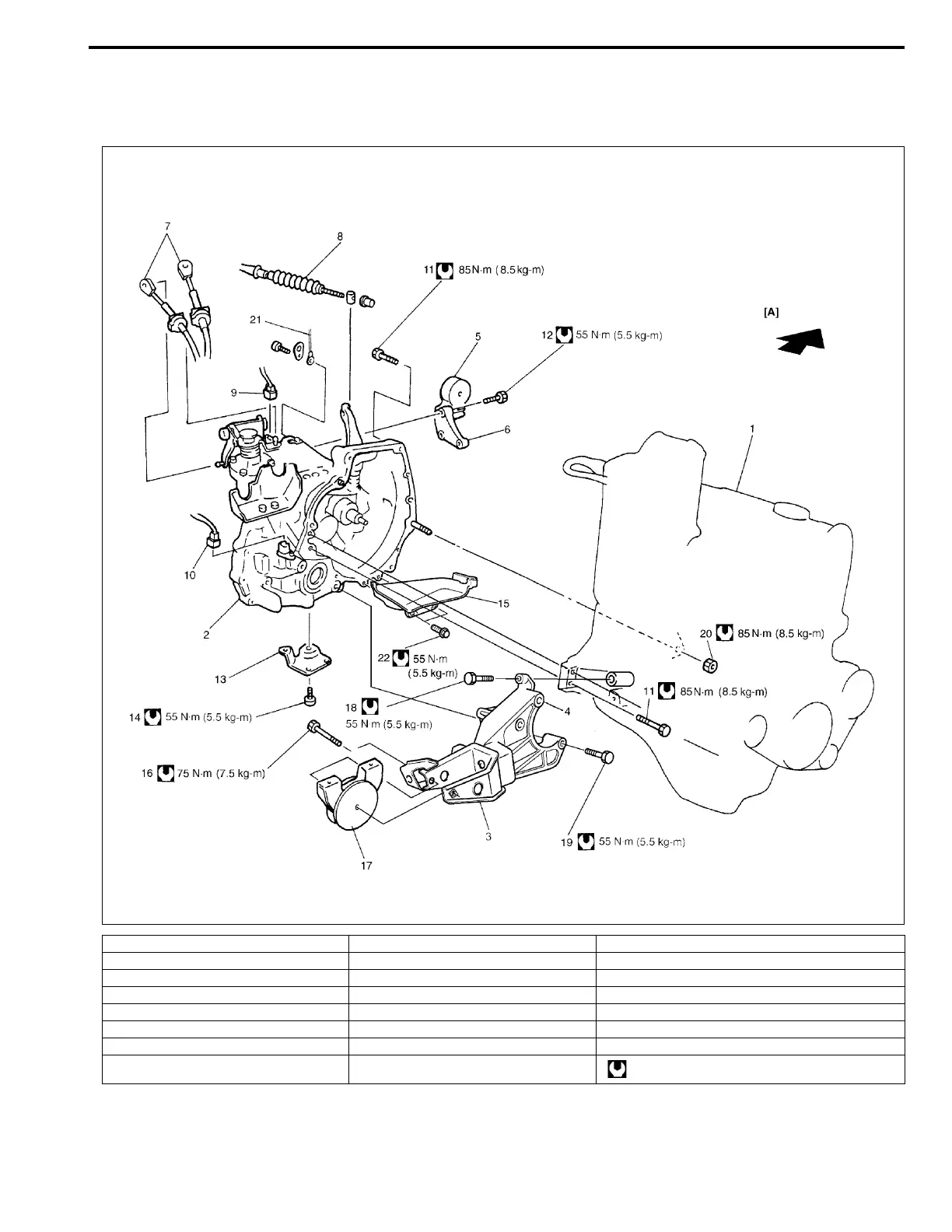

Transaxle Unit Components
[A]: Forward 8. Clutch cable 16. Engine rear mounting bolt
1. Engine 9. Backup lamp switch connector 17. Engine rear mounting
2. Transaxle 10. VSS connector 18. Engine rear mounting No.2 bracket bolts
3. Engine rear mounting No.1 bracket 11. Transaxle to engine bolts 19. Transaxle to engine rear mounting No.2 bracket bolt
4. Engine rear mounting No.2 bracket 12. Engine left mounting bracket bolts 20. Transaxle to engine nut
5. Engine left mounting 13. Engine rear mounting bracket stiffener 21. Ground cable
6. Engine left mounting bracket 14. Stiffener bolts 22. Clutch housing lower plate bolts
7. Shift & select control cables 15. Clutch housing lower plate Tightening torque
