A-96.250.511 / 091120
AMI Turbiwell
Installation
21
3.2. Mounting of Instrument Panel
The first part of this chapter describes the preparing and placing of
the system for use.
The instrument must only be installed by trained personnel.
Mount the instrument in vertical position.
For ease of operation mount it so that the display is at eye
level.
Installation of
PVC panel
For the installation a kit containing the following installation ma-
terial is available:
– 6 screws 6x60 mm
– 6 dowels
– 6 washers 6.4/12 mm
Installation of
steel panel
For the installation a kit containing the following installation ma-
terial is available:
– 4 screws 8x60 mm
– 4 dowels
– 4 washers 8.4/24 mm
Mounting
requirements
The instrument is only intended for indoor installation. For dimen-
sions, see Instrument Specification, p. 14.
Installation
note

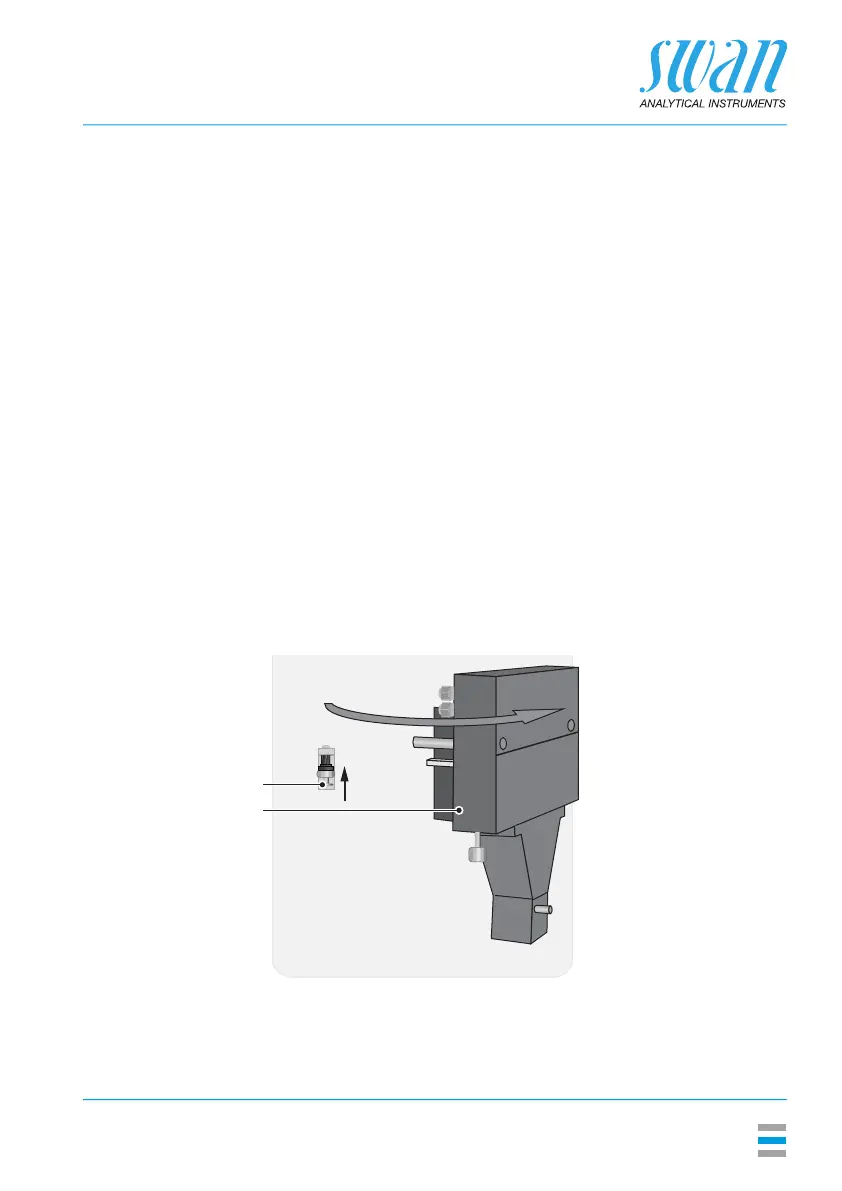

For easy mounting or unmounting of parts behind the measuring
chamber [B], the measuring chamber can be swiveled out. To swivel
out the measuring chamber, push the locking pin [A] upwards and
pull the measuring chamber forward.
