3.7.2 Power Supply
WARNING
Risk of electrical shock
Installation and maintenance of electrical parts must be per-
formed by professionals. Always turn off power before manipulat-
ing electric parts.
Note: The protective earth wire (ground) has to be connected to
the grounding terminal.
Installation
requirements
The installation must meet the following requirements.
Mains cable to comply with standards IEC 60227 or IEC
60245; flammable rating FV1
Mains equipped with an external switch or circuit-breaker
– near the instrument
– easily accessible to the operator
– marked as interrupter for AMI Turbiwell
A
B
C
D

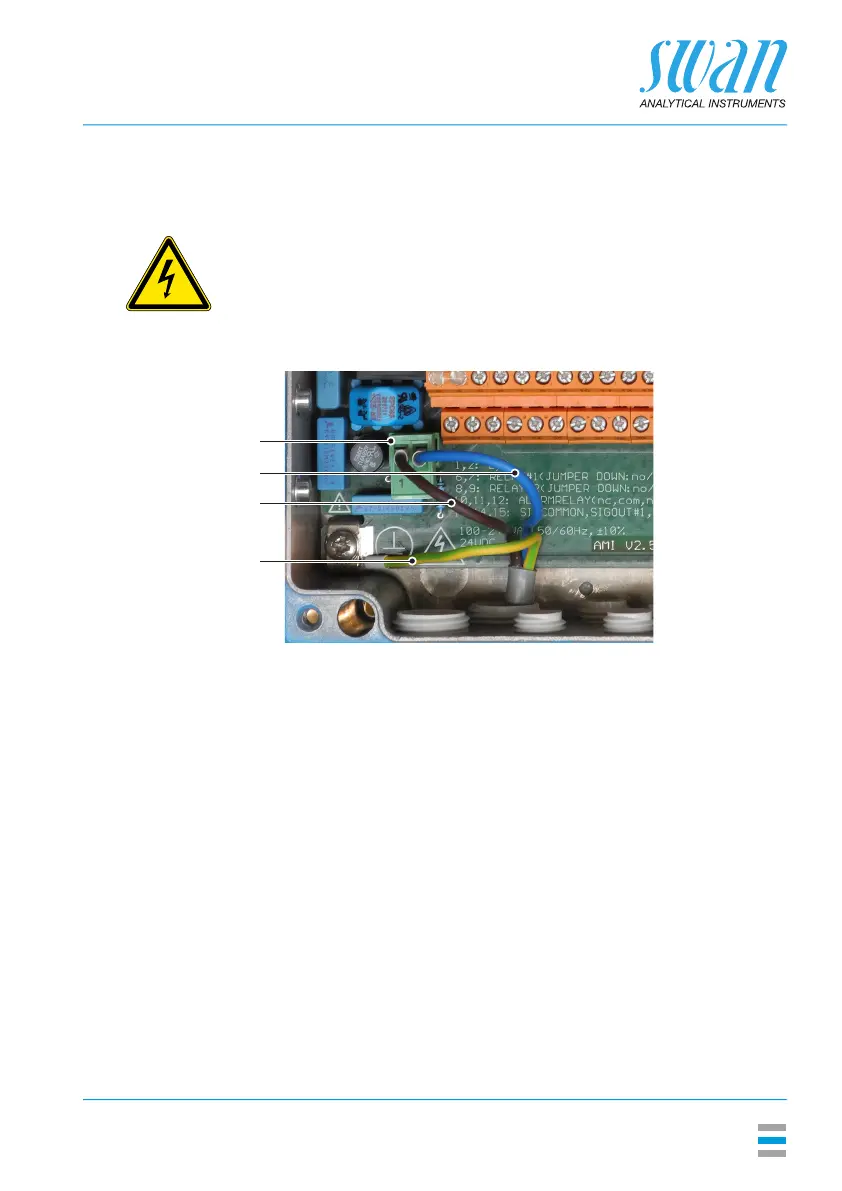

Power supply connector
Neutral conductor, Terminal 2
Phase conductor, Terminal 1
Protective earth PE
