AMI Turbiwell
Installation
44
3.10.1 Signal Output 3
The AMI Turbiwell can display a maximum of two measured values:
the measured turbidity and
the sample flow, if a flow sensor is installed.
Therefore, there is no need to install the optional third signal output.
3.10.2 Profibus, Modbus Interface
Terminal 37 PB, Terminal 38 PA
To connect several instruments by means of a network or to config-
ure a PROFIBUS DP connection, consult the PROFIBUS manual.
Use appropriate network cable.
Note: The switch must be ON, if only one instrument is installed,
or on the last instrument in the bus.

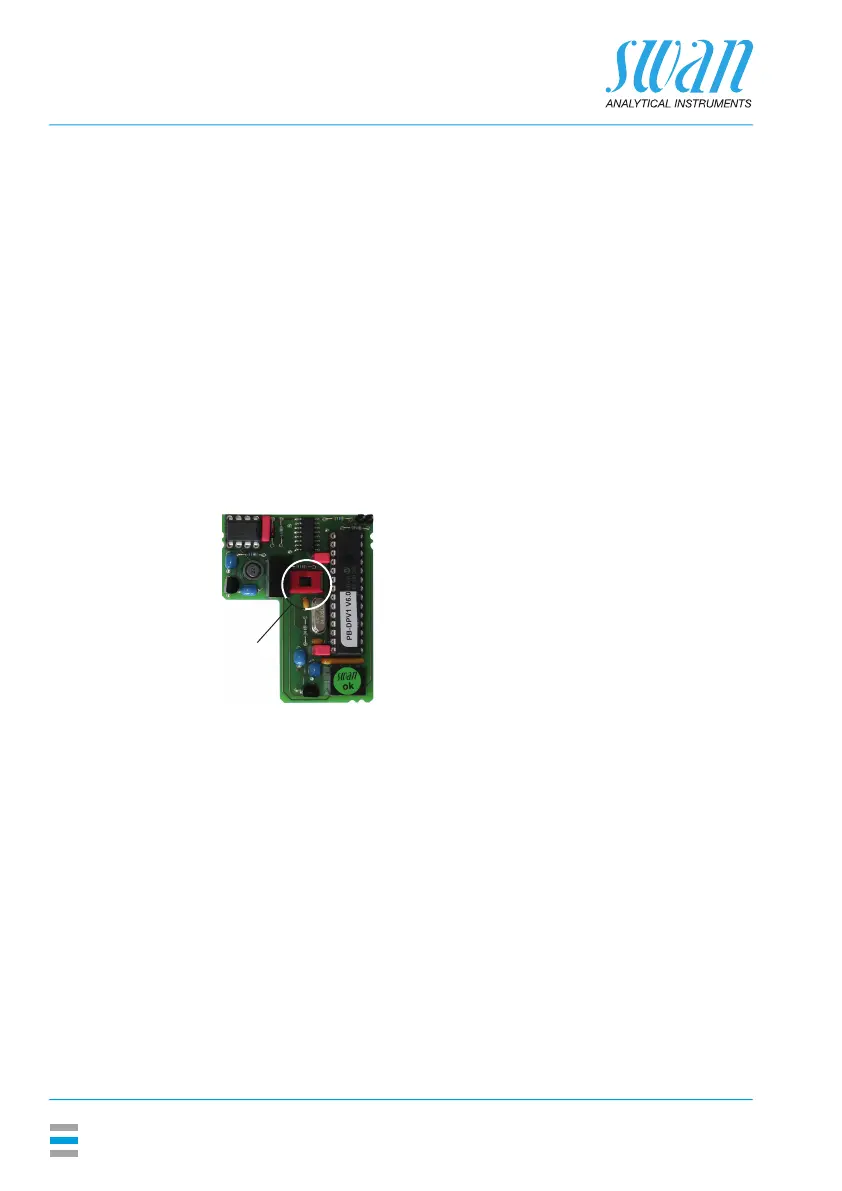

Profibus, Modbus Interface PCB (RS 485)
A On - OFF switch
