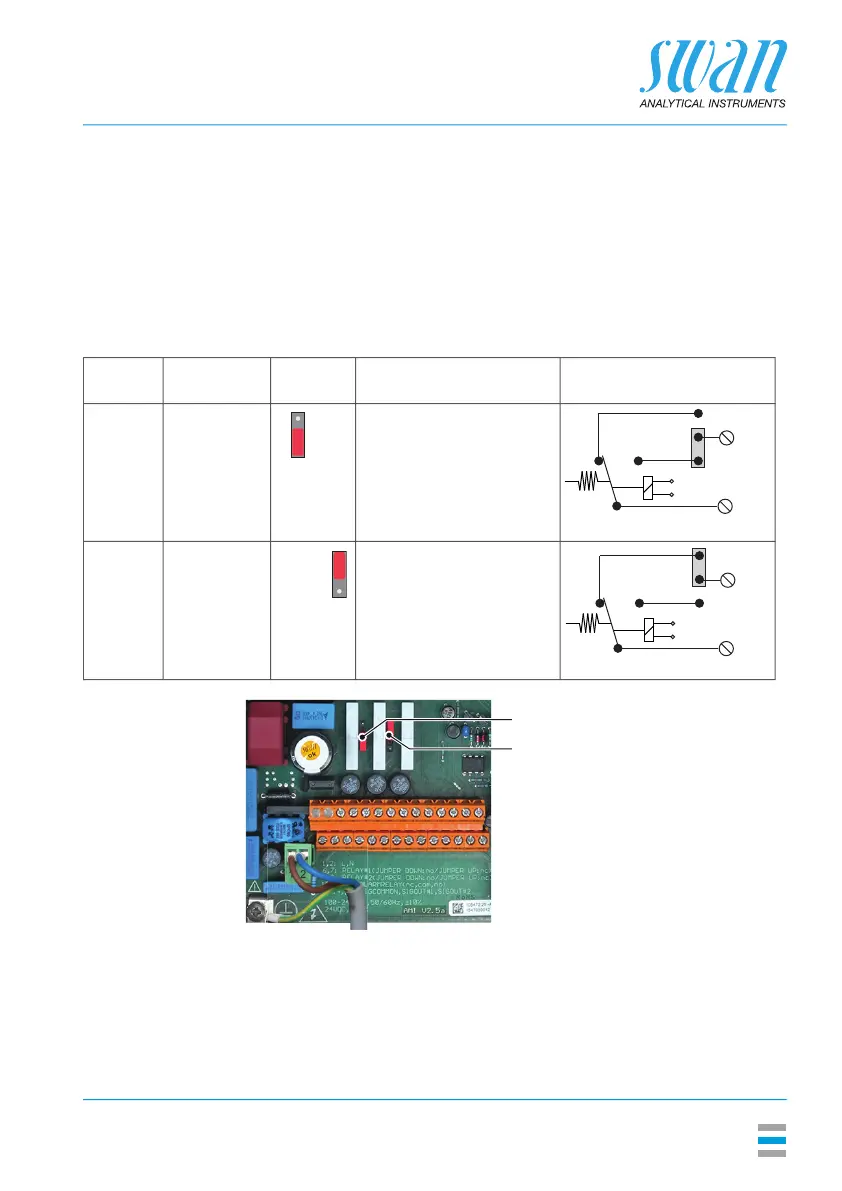

3.8.3 Relay 1 and 2
Note: Max. load 1 A/250 VAC
Relay 1 and 2 can be configured as normally open or as normally
closed. Standard for both relays is normally open. To configure a Re-
lay as normally closed, set the jumper in the upper position.
Note: Some error codes and the instrument status may influence
the status of the relays described below.
For programming see Menu Installation 5.3.2 & 5.3.3, p. 97.
Relay
config. Terminals
Jumper
pos. Description Relay configuration
Normally
Open
6/7: Relay 1
8/9: Relay 2
Inactive (opened) during
normal operation and
loss of power.
Active (closed) when a
programmed function is
executed.
Normally
Closed
6/7: Relay 1
8/9: Relay 2
Inactive (closed) during
normal operation and
loss of power.
Active (opened) when a
programmed function is
executed.
6
0V
7
6
0V
7
A
B
Jumper set as normally open (standard setting)
Jumper set as normally closed
A
B
