A-96.250.511 / 091120
AMI Turbiwell
Installation
43
3.9. Signal Outputs
3.9.1 Signal Output 1 and 2 (current outputs)
Note: Max. burden 510 Ω
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see Program List and Explanations, p. 86, Menu
Installation.
3.10. Interface Options
The slot for interfaces can be used to expand the functionality of the
AMI instrument with either:
a Profibus or Modbus connection
a HART connection
an USB Interface

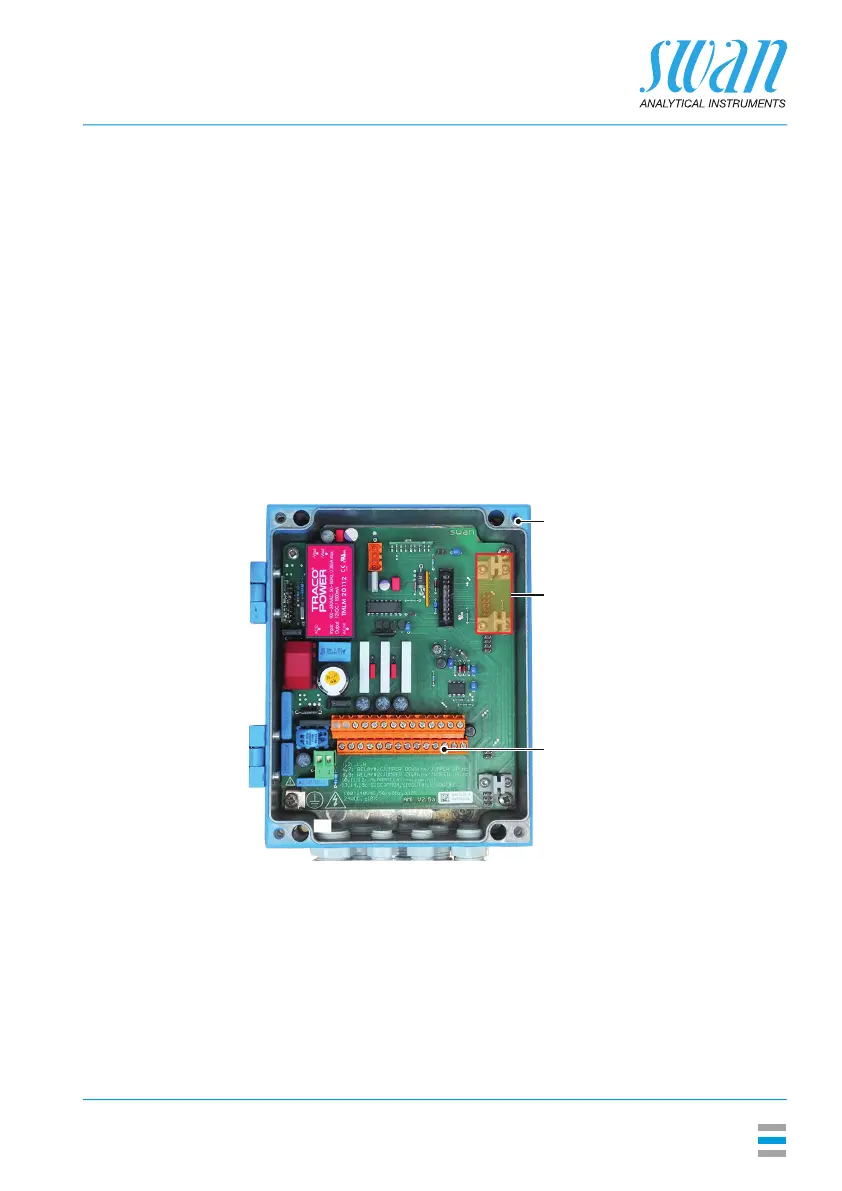

A
B
C
AMI Transmitter
Slot for interfaces
Screw terminals
A
B
C
