3.6. Connect Sample and Waste
Sample inlet The AMI Turbiwell can be ordered in different configurations. Use
plastic tubes with inner diameter 10 mm for:
connection to the constant head
connection to the deltaT flow meter
connection to the Flowcontroller
Use plastic tubes with outer diameter 6 mm for connection to the de-
gasser.
Waste Use 1/2” tubes and connect them to the hose nozzles of the drain [B]
and waste [C] and place them into an atmospheric drain of
sufficient capacity.

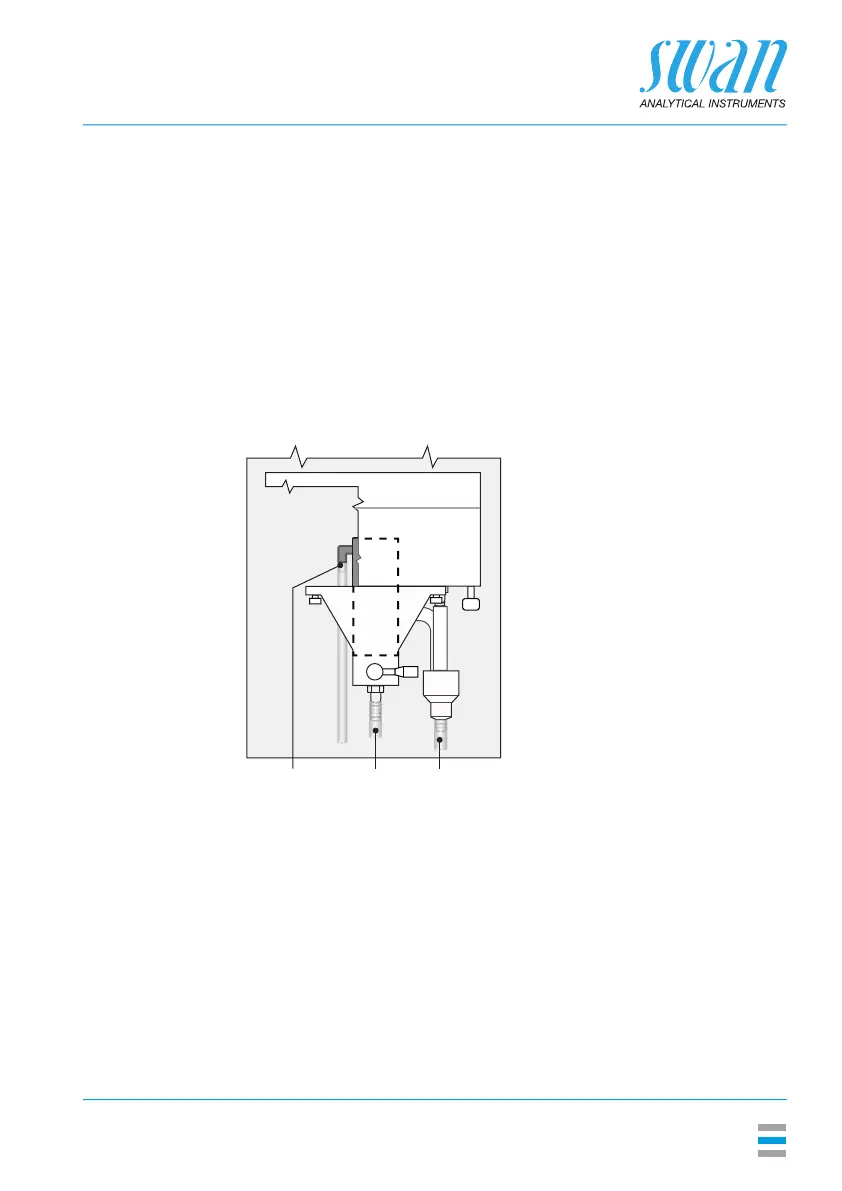

Basic
configuration
A
B
C
Constant head sample
inlet
Drain
Waste
ABC
