AMI Turbiwell

Installation

3.10.3 HART Interface

Terminals 38 (+) and 37 (-).

The HART interface PCB allows for communication via the HART

protocol. For detailed information, consult the HART manual.

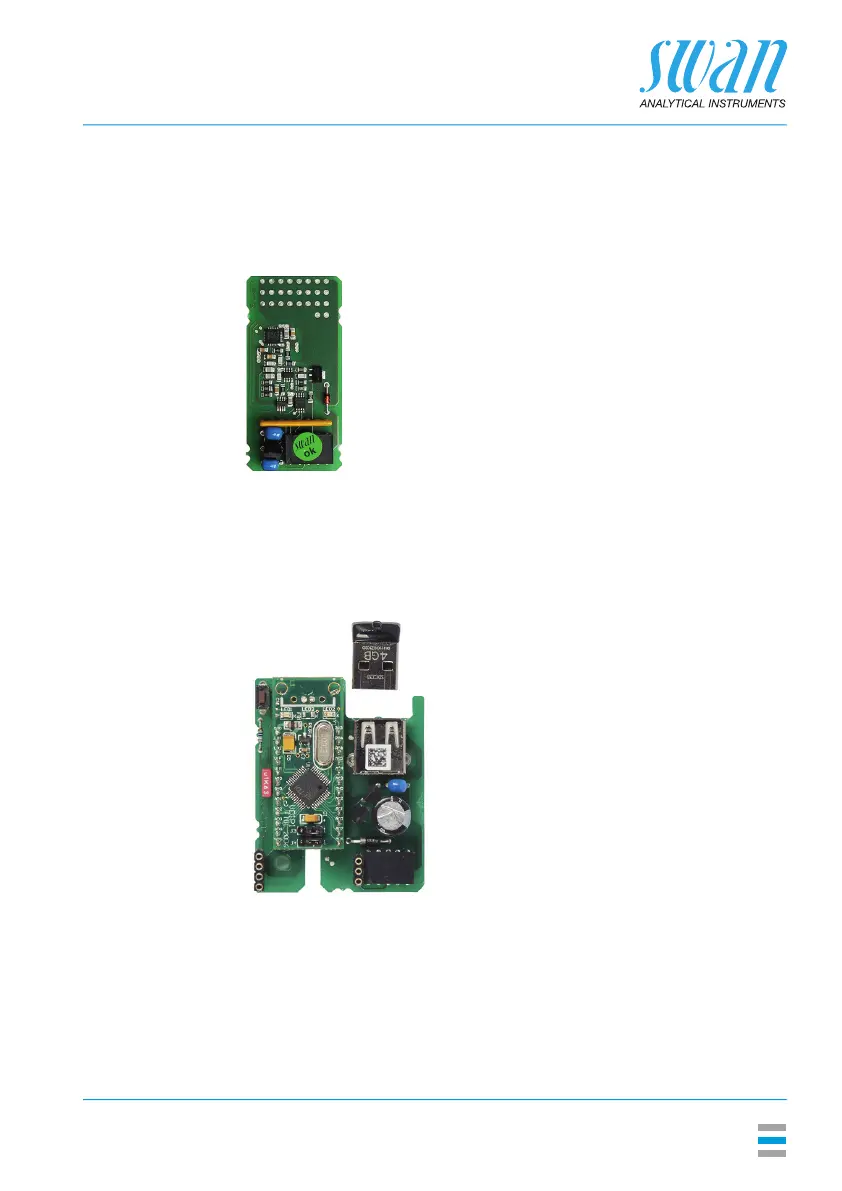

HART Interface PCB

3.10.4 USB Interface

The USB Interface is used to store Logger data and for Firmware up-

load. For detailed information see the corresponding installation in-

struction.

USB Interface
