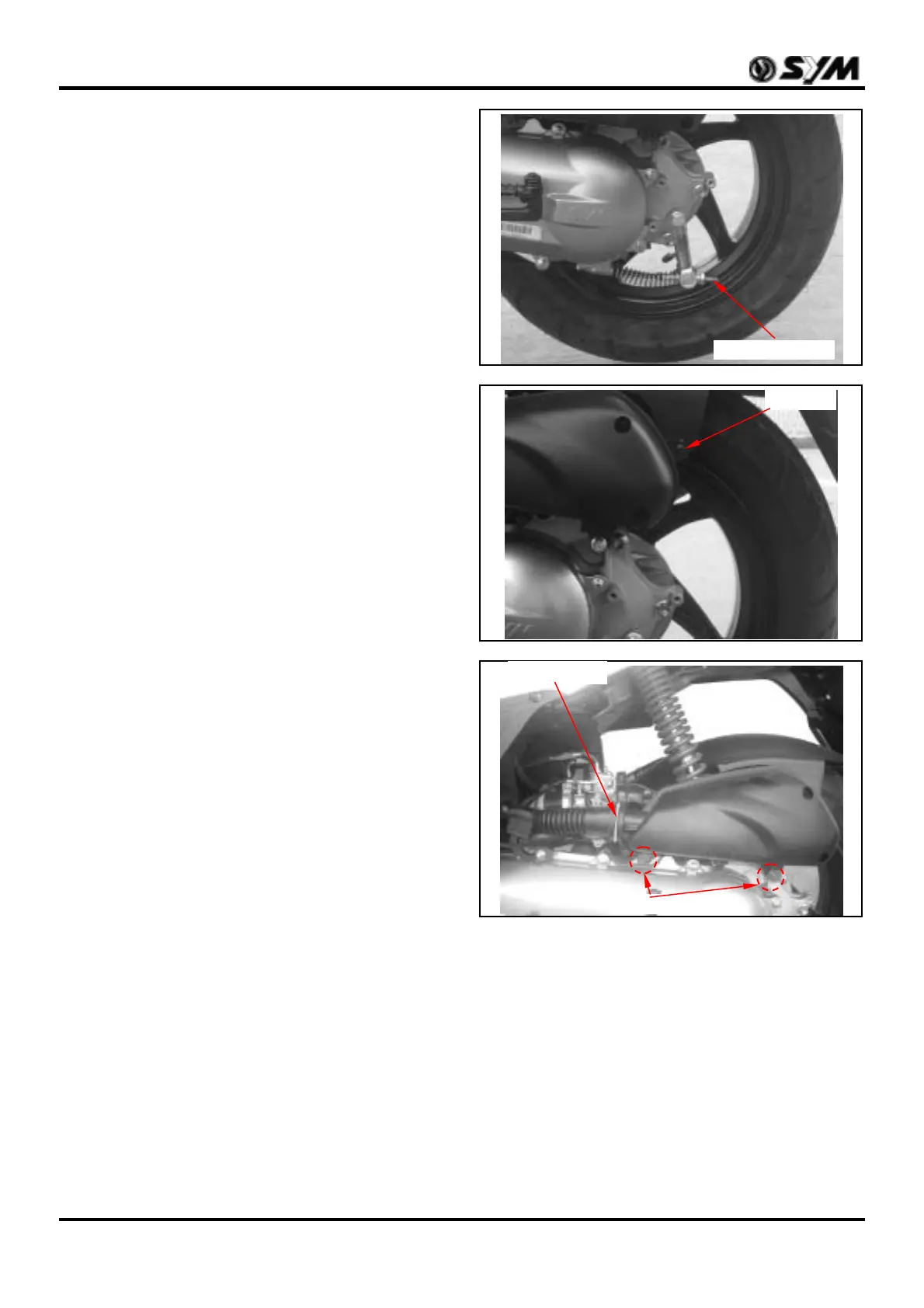

5. Engine Removal
5-4
Drum type rear brake
Remove rear brake cable from engine rear-lower
side.
Remove brake cable from cable clamp.
Remove air cleaner and rear inner fender
mounting screw.
Loosen connection hose clamp.
Remove 2 bolts and then remove the air cleaner.
1 screw
2 bolts
Hose clamp
Rear brake cable
