4 Installation and Connection
4.1 Installation
Front panel size(W x H)
：
110mm X 62mm
。
Enclosure size (W x H): 92mm x 45mm
。
Cut out size
：
94mm X 48mm
。

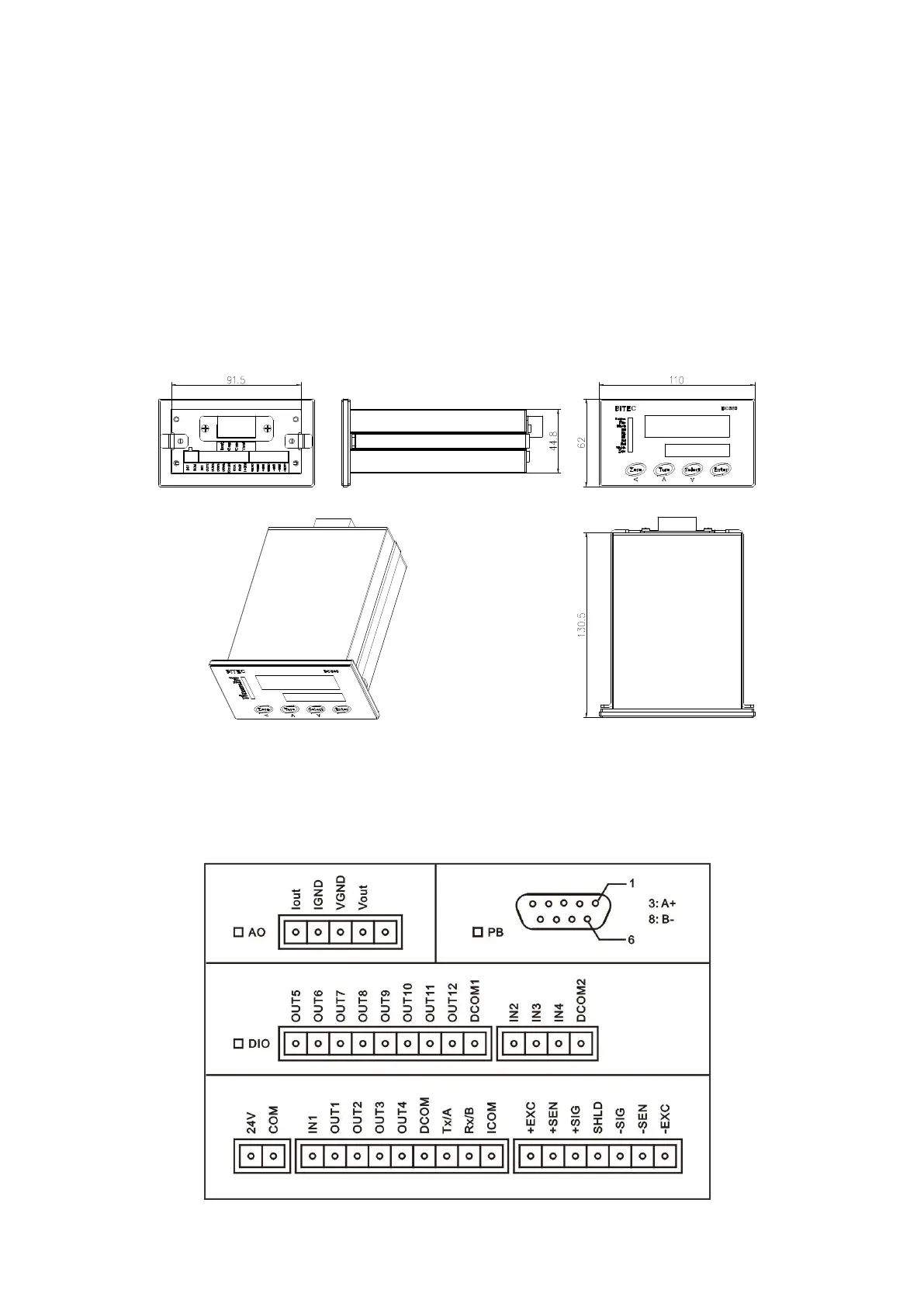

Diagram (unit: mm) :
4.2 Wire connection
Back plate connection drawing
