SYMC BC360 User Manual

6
B/RX
RS232 Rx，RS485 B-
ICOM
USART Common ground
4.2.4 Discrete input
Indicator has 4 inputs
（
BC360.C1/C2/C3 only has one “RUN/STOP”
）

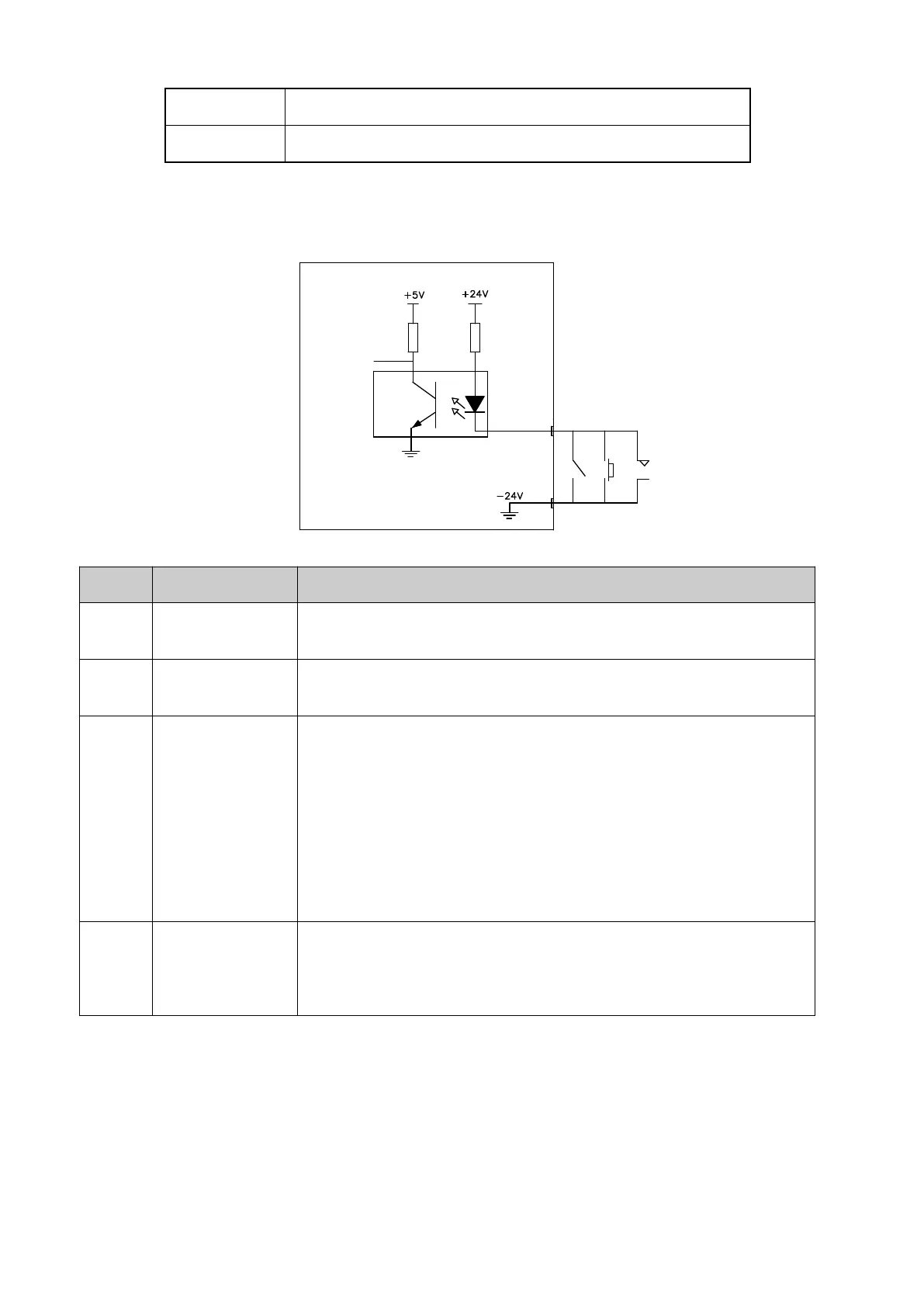

. Input wire diagrams:
R30
INX
COM2
 Input definition under auto batching mode.（Parameters F6.6=0，F6.7=0）
Input
Definition
Instruction
IN1
Batching start
Contact with DCOM over 100ms will trigger Auto-batching start
command and stop after a batching cycle finished when disconnect
with DCOM.
IN2
Accept
Tolerance/
Continue
If the batching result out of tolerance or manual Pause command is
entered, the procedure will paused. This input contact with
DCOM2 will continue batching process.
IN3
Pause
In batching procedure:
Contact with DCOM2 over 100ms then release will trigger the
PAUSE command.
In pause status:
the batching procedure paused.
Set IN2 active will continue batching processing.
Set IN4 active will cease and exit batching processing.
In Idle status:
Contact with DCOM2 will trigger manual Dump command and
the Dump output will set ON.
Release with DCOM2 will set Dump output(OUT11) OFF.
IN4
Force-stop
Contact with DCOM2 over 100ms then release will trigger
force-stop command. The batching procedure will ceased and the
terminal be in idle status. Set IN1 ON to start a new batching
cycle.
No operation is enabled if IN4 keep contacted with DCOM2.
