4.2.5 BC360.A1 output control pins
Output pin
Function instruction
Usage instruction
OUT1
Redundant
Isolation output with common ground
connection.
Each output max load is 30VDC/200mA。
OUT2
Batch run status
OUT3
Redundant
OUT4
Zero range
OUT5
Material 1 feed
（
M1
）
OUT6
Material 2 feed
（
M2
）
OUT7
Material 3 feed（M3）
OUT8
Material 4 feed（M4）
OUT9
Fast feed
OUT10
Slow feed
OUT11
Dump/Dump
OUT12
Tolerance alarm out
4.2.6 BC360.C1 output control pins
Output pin
Function instruction
Usage instruction
COARSE
Fast feed
Isolation output with common ground
connection.
Each output max load is 30VDC/200mA
。
FINE
Slow feed
DUMP
Dump
ZTOL
Zero tolerance

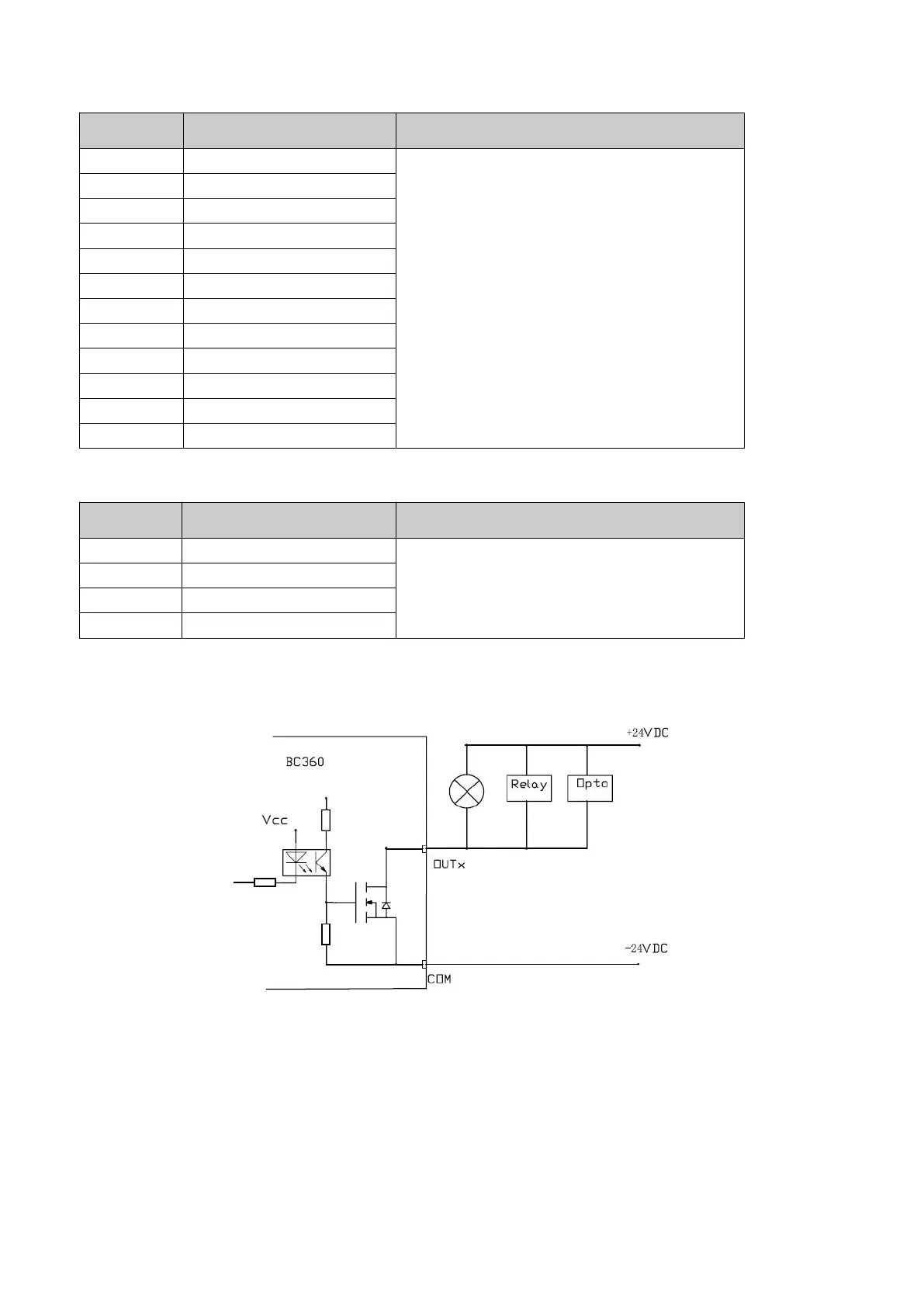

Output wire diagram：
Note:
The MOSFET outputs can pass through max 350mA @ max 30VDC. A freewheeling diode is
suggested to parallel with an inductive load to avoid damaging the discrete out port.
Below diagram explain a 2-speed, 4-mateiral batching system connection example.
