5.5 Batching operation
BC360 has two batching modes: mixed mode (F6.11=0) and recycle mode (F6.11=1)
 Mixed mode batching process
Normally batching start by feeding each material one by one, then dump out. The whole cycle is
named with five steps. And the whole cycle can be configured to work in 4 running modes.
Batching mode four
auto feeding/ auto Dump
F6.6=0/F6.7=0）
Batching mode two
auto feeding/semi-auto Dump
（F6.6=0/F6.7=1）
Batching mode two
semi-auto feeding/semi-auto Dump
（F6.6=1/F6.7=0）
Batching mode one
semi-auto feeding/semi-auto Dump
6.6=1/F6.7=1）

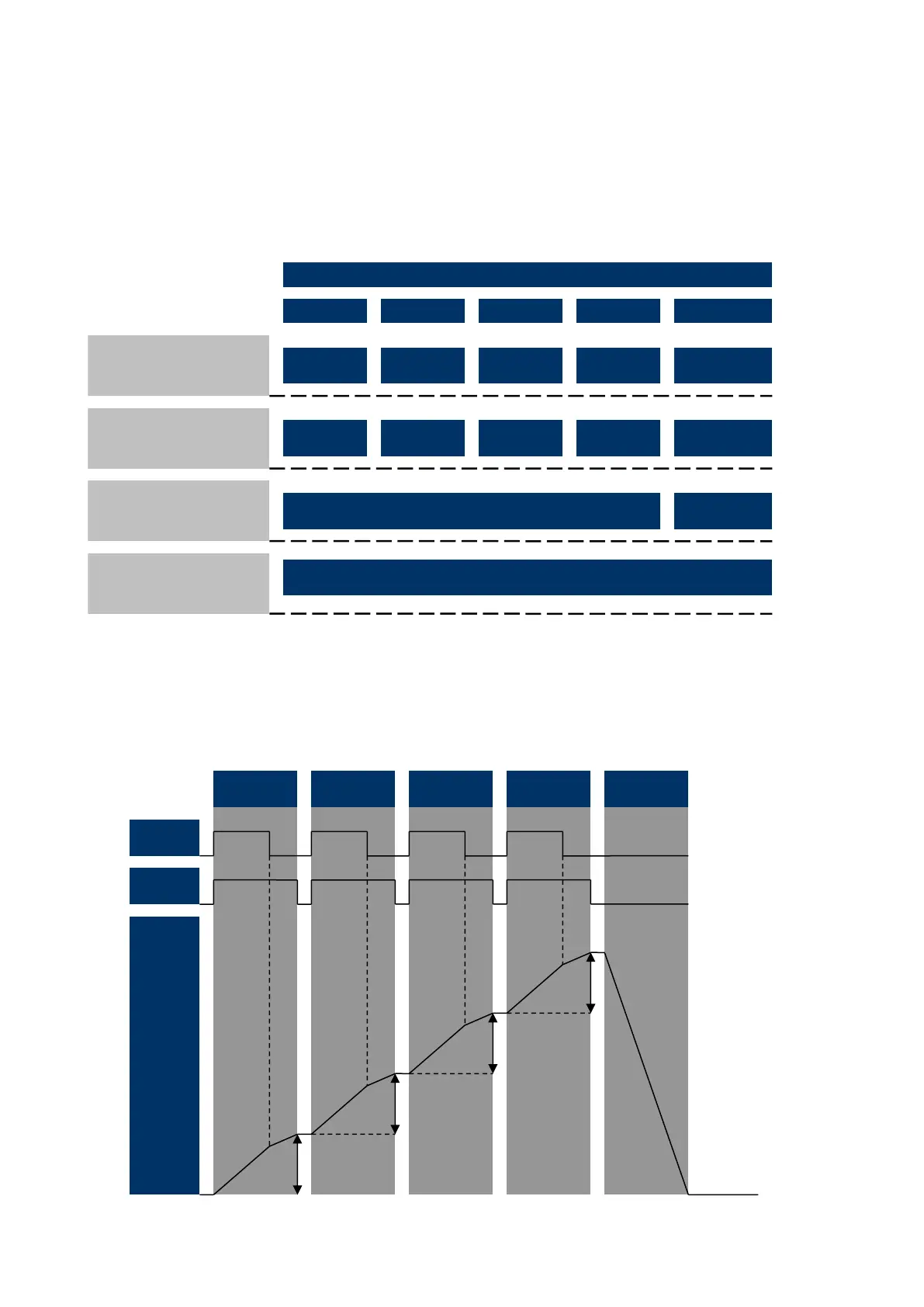

Batching process
FEED1
Material 2
Material 3
Material 4
Material 1
FEED2
FEED3
FEED4
Dump
Dump out
FEED1
FEED2
FEED3
FEED4
Auto dump
FEED
Dump
RUN auto dump out
Mixed mode batching process
The batching progress can be reached by keypad entry, discrete input or remote MODBUS
communication.
Weight data change as below (the terminal displays N.W. when batching.)
Gross
weight
slow
fast
Material 1
Material 2
Material 3
Material 4
Dump
N.W. of material 1
on
N.W. of material 2
N.W. of material 3
N.W. of material 4
