SYMC BC360 User Manual

47

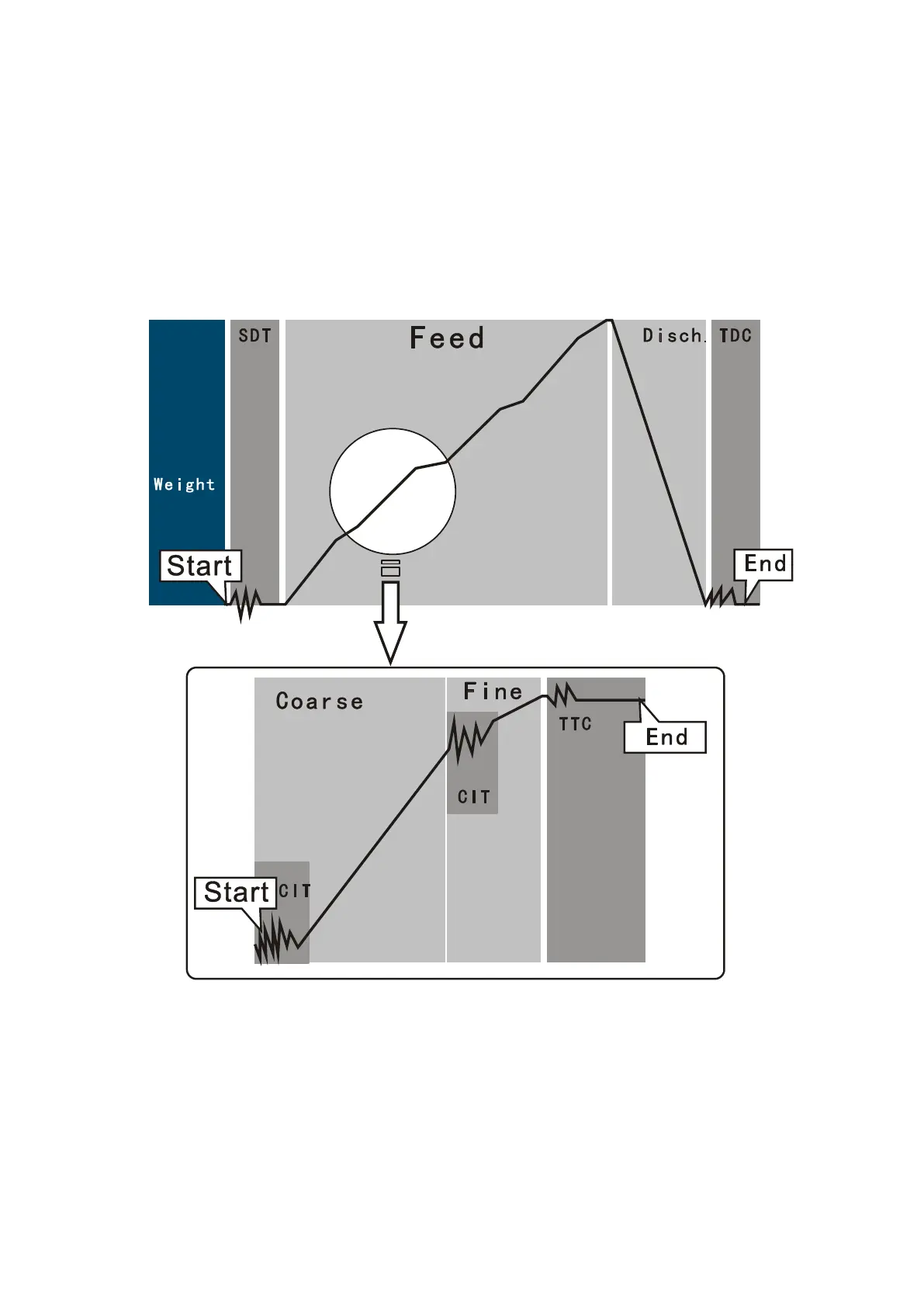

When fast feed start or change from fast feed to slow feed, the suddenly material impact
change will cause the scale signal bigger than the actual weight. To avoid capturing wrong
weight data, the terminal do not read weight signal during the CIT time (F6.3.2).
 Testing time delay（TTC）
To avoid any disturbance the terminal will delay a few times after feed over then record
material data. The time can be set at F6.3.3.
 Delay after Dump time.（TDC）
On each dump sequence, when the material in the hopper are Dump under zero range, this
timer is triggered and the dump door will close on the timer expired. The time is set at F6.3.4.

SYMC BC360 Specifications

General

Brand	SYMC
Model	BC360
Category	Measuring Instruments
Language	English
