12713140-002-2 Revision E – October 2006 SSU-2000e User’s Guide 213
Chapter 8 Output Module Reference Data
2048 kHz Output Module
2A10 (06) Clk Level Ok Major
2A10 (07) Clk Selected Ok Major
2A10 (08) VCXO Ok Major
2A10 (09) PLL Ok Major
2A10 (10) Configuration Ok Major
2A10 (11) IntPortFlt Ok Major
2A10 (13) Hdw Config Ok Major
2A10 (14) Squelch Below Prov Major 00001
SSU->
Provisioning the Squelch Parameter
To view or provision the squelch using ICS or TL1 commands, see the SSU-2000e
Technical Reference.
Functional Block Diagram

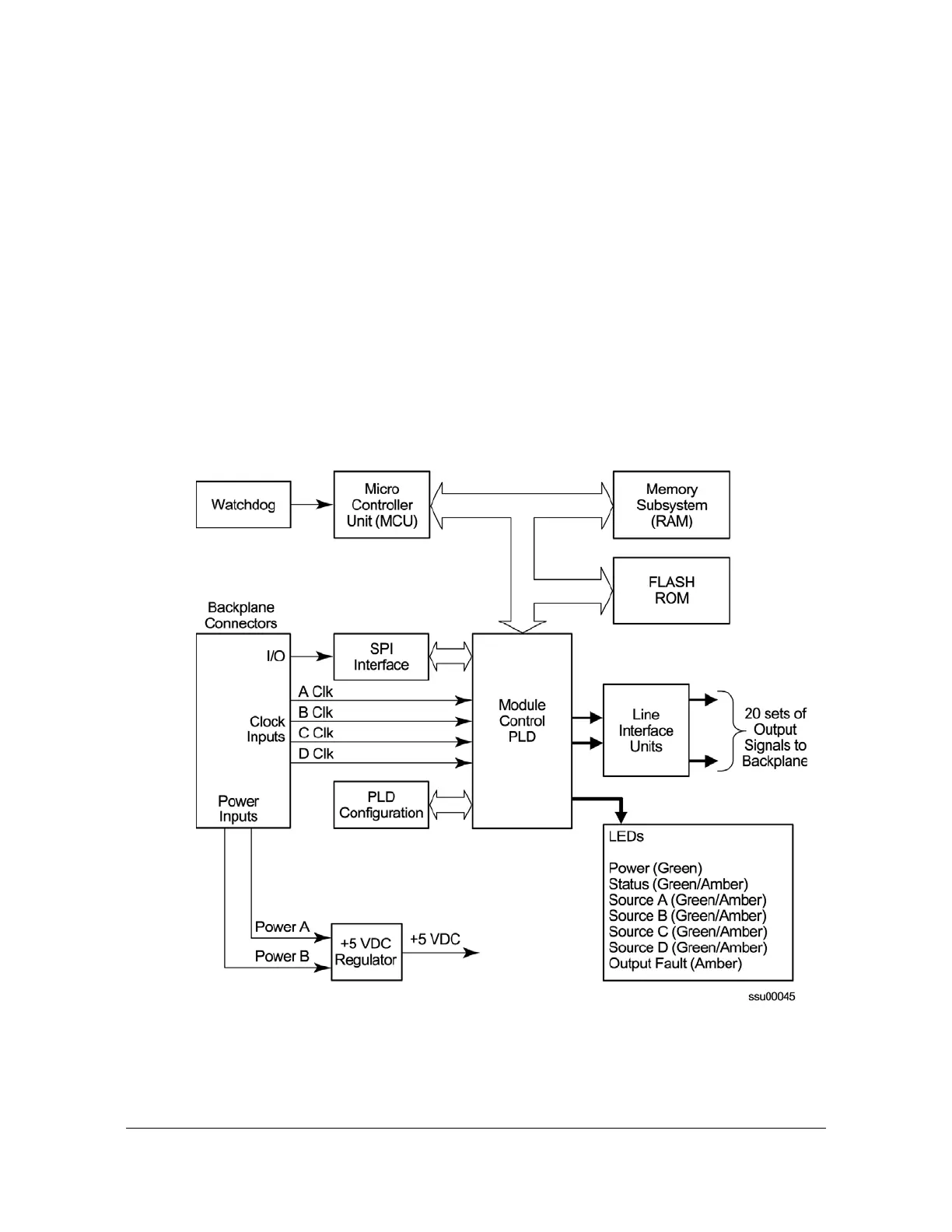

A simplified block diagram of the 2048 kHz Output module is shown in Figure 8-11.
Figure 8-11. Block Diagram of the 2048 kHz Output Module
To Next Page
