3 – Names and Functions of Parts

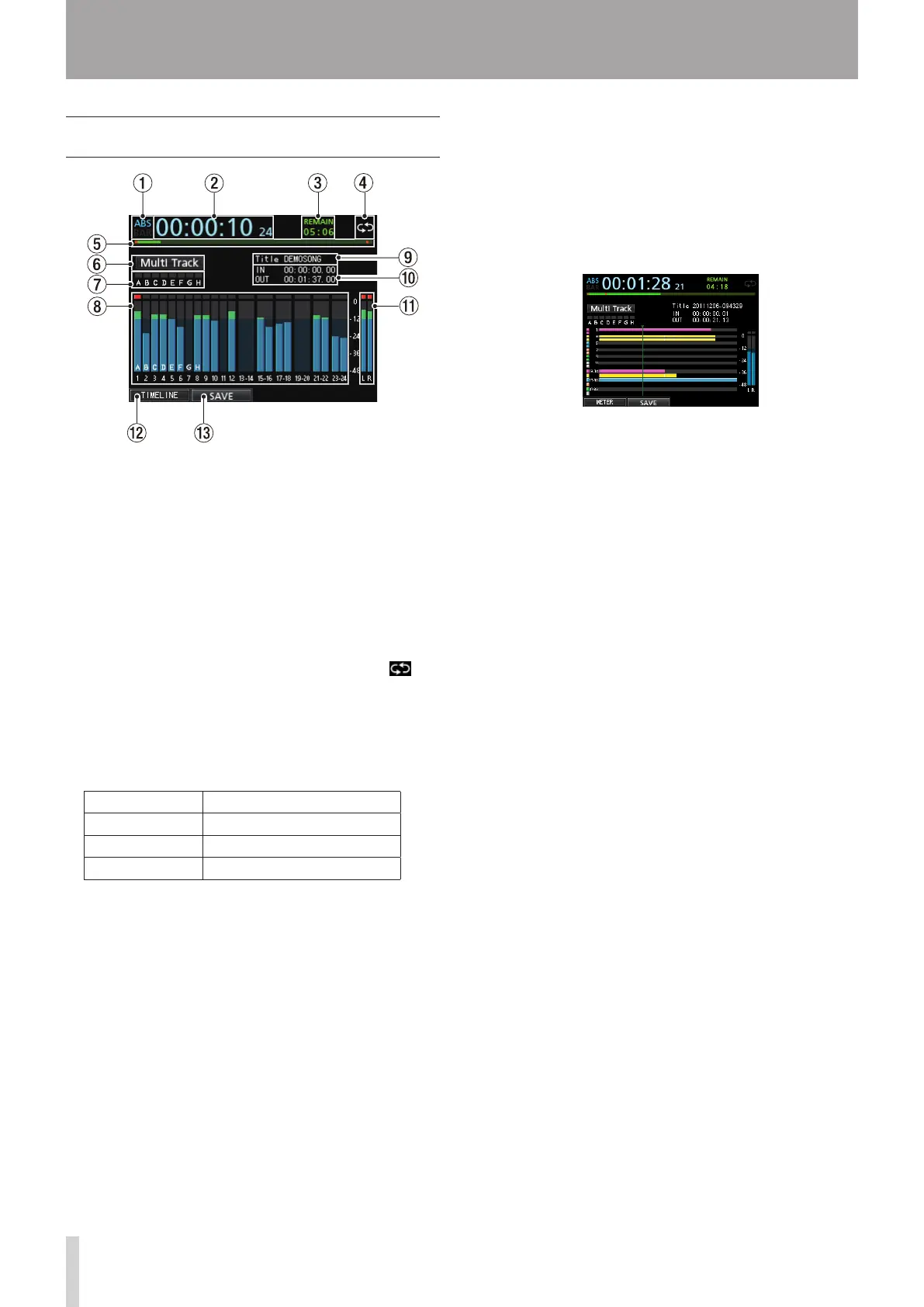

Home screen
Home screen and track level meter display
1 Counter mode display
Displays the currently selected time counter mode:
ABS
or
BAR
.
2 Recorder time counter display
Displays the elapsed time from the start of the song.
3 REMAIN time display
Displays the remaining recordable time (Hours :
Minutes) of the SD card.
4 Repeat playback
When the unit is in Repeat Playback mode, the
icon is displayed.
5 Playback position display
Displays the current Playback position.
6 Recorder mode display
Displays the current Recorder mode.
Multi Track
Multi Track mode
Bounce
Bounce mode
Mixdown
Mixdown mode
Mastering
Mastering mode
The following items are also displayed:
Rehearsal
,
Auto Punch
and
Search
.
7 INPUT A to H overload indicators
If the input signal of any INPUT A to H source is too
loud, the corresponding indicators light.
8 Track level meter
Displays input signal levels during recording and
playback signal levels during playback.
9 Song name display
Displays the song name during playback.
0 IN/OUT point time display
Press and hold the MARK SET button and press the IN
or OUT button to display the set IN or OUT point.
q Stereo level meter
Displays the signal level output from the STEREO OUT
jacks.
w TIMELINE/METER display
When the level meter is displayed on the recorder track
section of the Home screen, press the F1 (
TIMELINE
)
button to change from level meter display to time line
display.
When the time line is displayed on the recorder track
section of the Home screen, press the F1 (
METER
) to
change from time line display to level meter display.
Timeline display on the Home screen
e SAVE display
Press the F2 (
SAVE
) button to open the
SONG SAVE
(Saving a song) pop-up window.
To Next Page
