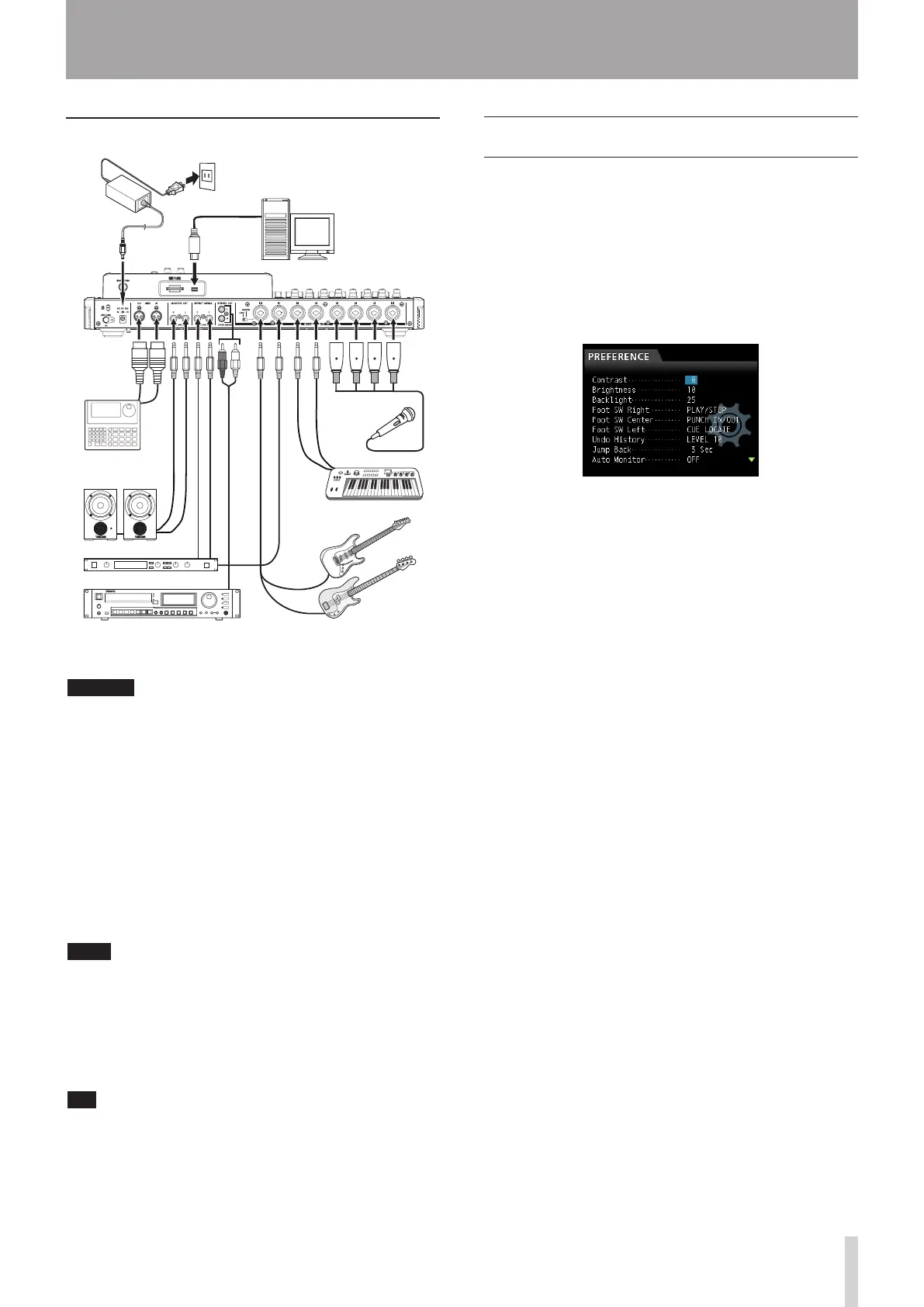

USB
Computer
AC outlet
DC plug
Drum machine
Powered speakers or
amplifier and speakers
Connect a guitar/base to INPUT H
Connect an electronic
keyboard to INPUT A to H
Connect a microphone
to INPUT A to H
Mini-B USB plug
4 – Preparation
Rear panel
CAUTION
Do not connect a dynamic microphone using an
•
unbalanced connection when phantom power is ON.
Doing so could break it.
Do not connect or disconnect a microphone when
•
phantom power is ON. This could cause a loud noise
and damage the equipment.
Before turning the phantom power on or off, turn
•
down the output volume using the MONITOR LEVEL
knob,
STEREO
fader and external monitor monitoring
system. Depending on the microphone, a loud noise
could occur, resulting in damages to the equipment
and people's hearing.
NOTE
Before producing any sound, minimize the output
•
volume using the MONITOR LEVEL knob and external
monitoring system. A loud noise could occur, resulting
in damages to equipment and people's hearing.
Recorder functions cannot be used when the unit is
•
connected to a computer via USB.
TIP
When connecting an electric-acoustic guitar with a built-
in preamp or an active-type electric guitar, or when using
an effects pedal, for example, between the guitar and this
unit, set in the LINE-GUITAR switch on the rear panel to
LINE.
Adjusting the contrast
You can adjust the contrast of the display.
Follow the procedure below to adjust the contrast.
1. When the recorder is stopped, press the MENU
button to open the
MENU
screen.
2. Use the JOG/DATA dial or the CURSOR (5/b/g/t)
buttons to select (green highlight)
PREFERENCE
,
and then press the F4 (t) button.
The
PREFERENCE
screen appears.
3. Use the CURSOR (5/b) buttons to select the
items you want to adjust such as
Contrast
,
Brightness
and
Backlight
, and then use the
JOG/DATA dial to make the adjustments.
4. After making the settings, press the HOME button
to return to the Home screen.
External effecter
External recorder
