6 - Basic Recording
Use the SELECT button of each track to select the
desired track.
Press the SOURCE button of each INPUT to change the
input.
Use the HIGH, MID, and LOW GAIN knobs to adjust
the gain.
Use the HIGH, MID, and LOW FREQ knobs to adjust
the frequency.
Use the MID Q knob to set the MID FREQ bandwidth.
Setting range:
0.25
to
16
(Default:
0.5
)
Press the EQUALIZER ON/OFF button to turn the
equalizer on or off.
NOTE
"Q"
•
refers to the center frequency of the equalizer
divided by the bandwidth. A high Q value reduces
the cut and/or boost applied to the frequencies.
Depending on the equalizer setting, the graph at the
top of the screen changes.
If you press the
•
F1 (
EQ FLAT
) button, all the settings
on the open Mixer screen will be restored to their
default values.
3. After making the settings, press the HOME button
to return to the Home screen.
DIGITAL TRIM setting (Track only)
1. Use the CURSOR (5/b/g/t) buttons to move the
cursor to the
DIGITAL TRIM
display area.
2. Turn the JOG/DATA dial to set the value.
Setting range:
-42dB
to
+6dB
(Default:
0dB
)
NOTE
Normally, set to
0dB
, but if you want to boost the
equalizer, we recommend that you lower the gain to
prevent digital clipping.
Built-in Send Effects and External
Effects
This unit has two external effect send systems (EFF 1 and
EFF 2) and a built-in effect send function (INSERT EFFECT).
You can adjust send levels for each track. For details about
the built-in send effects, see "Send effects" on page 65.
1. Use the CURSOR (5/b/g/t) buttons to move the
cursor to the EFFECT item on the
SEND EFF 1/
EFF 2
display area.
2. Turn the JOG/DATA dial to set the effect.
Options:
OFF
(default),
PRE
,
POST
PRE
This sends the track pre-fader signal to the effect
send bus. The effect send signal level is not affected
by the track fader.
POST
This sends the track post-fader signal to the effect
send bus. The effect send signal level is affected by
the track fader.
3. Use the SEND EFF 1/EFF 2 to adjust the send level.
Setting range:
0
to
127
(Default:
0
)
4. Use the SEND MASTER 1/MASTER 2 to adjust the
send master level.
Setting range:
0
to
127
(Default:
0
)
Setting built-in effects
1. Use the CURSOR (5/b/g/t) buttons to move the
cursor to the
INSERT EFFECT
display area.
2. Turn the JOG/DATA dial to set the built-in effect.
Options:
OFF:
INSERT EFFECT
indicator unlit (default)
ON:
INSERT EFFECT
indicator lit

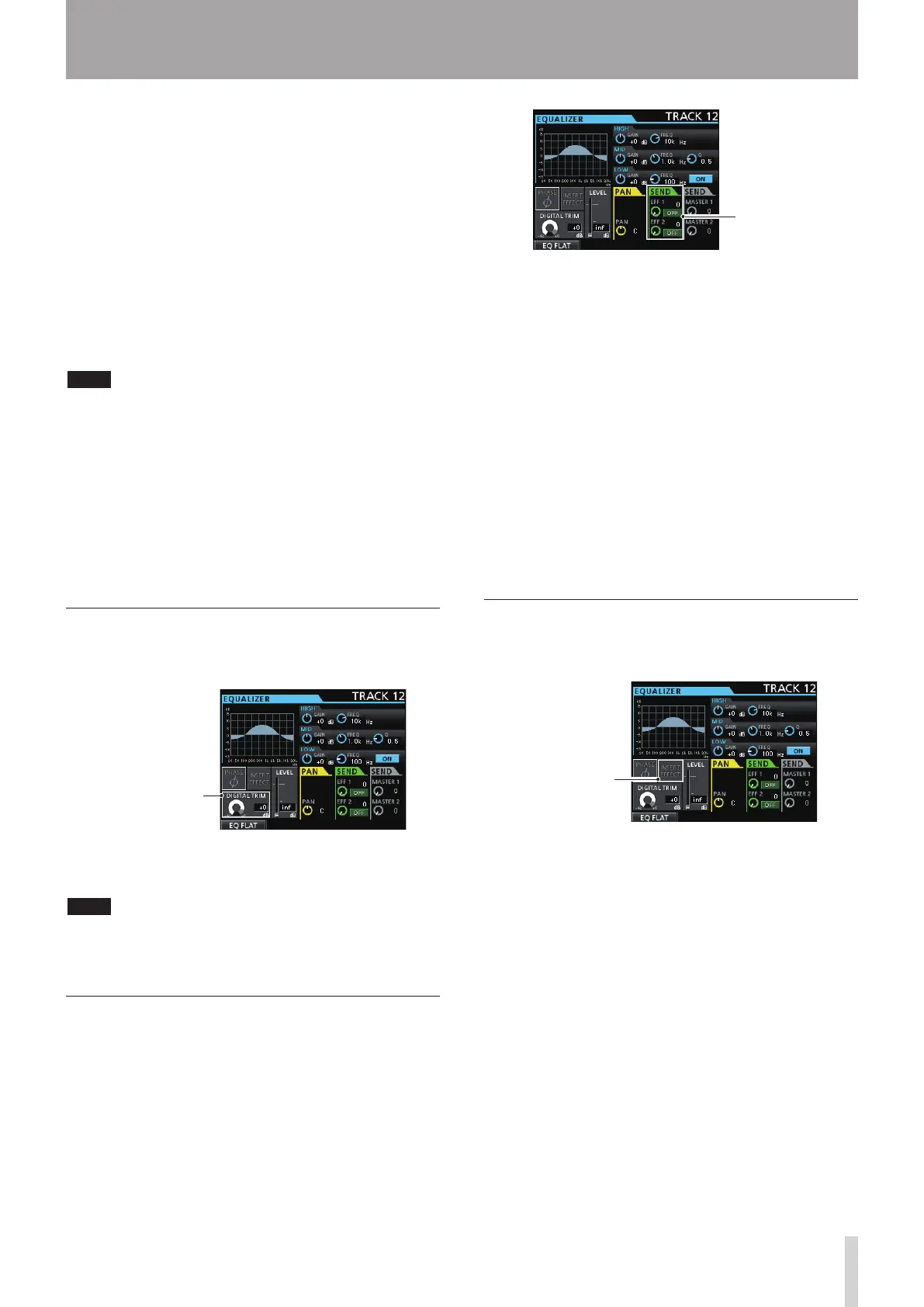

Effect send
indication
INSERT EFFECT
indicator
DIGITAL TRIM
indication
To Next Page
