5.1 Handle
5.1.4 Mounting of microswitch

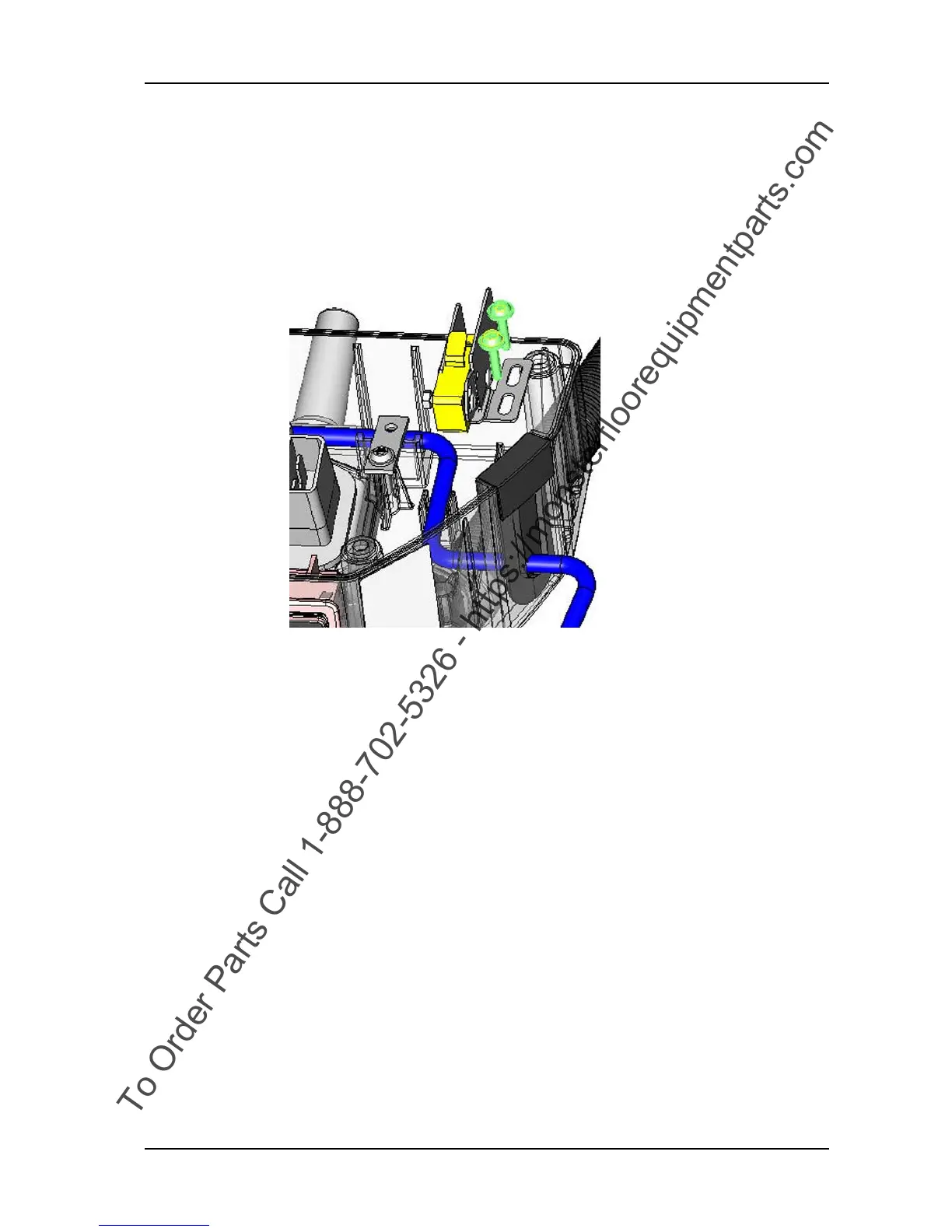

Picture 8: Mount microswitch
• Position the microswitch into the switch insulation and angle
bracket.
• Mount and tighten the two fixation screws, washers and nuts
slightly.
• Connect the wires to the new microswitch.
• Mount the angle bracket with the two screws.
• Adjust the switching point of the microswitch.
Adjustment
The microswitch shall switch when the switching bow is moved half
way.
• Mount the housing according to chapter MOUNTING OF
HOUSING.
