GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-7
Copyright © 2014, Diversey Care
05.10.72 handle - switch lever - 30_V1.00.fm
5.1 Handle
5.1.6 Mounting of switching bow

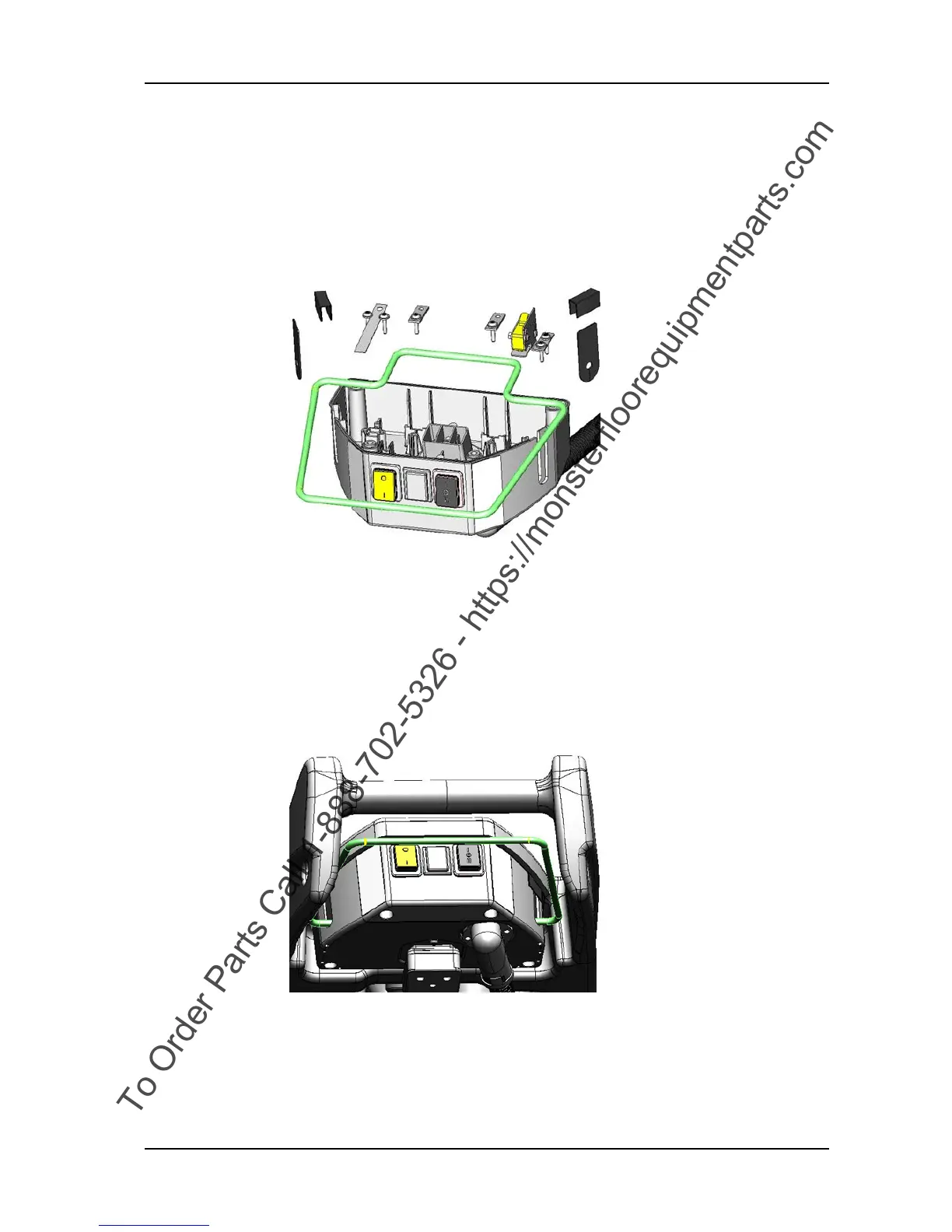

Picture 11: Mount switching bow
• Mount the two splash guards onto the switching bow.
• Position the switching bow.
• Mount the two covers onto the housing.
• Mount the two clamps and flat spring for the switching bow and
tighten the 4 screws.
• Mount the microswitch according to chapter MOUNTING OF
MICROSWITCH.
• Mount the housing according to chapter MOUNTING OF
HOUSING.
Picture 12: Switching bow
