GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-18
Copyright © 2014, Diversey Care
05.58.33 brush & motor - brush height adjustment - 30_45_V1.00.fm
5.3 Brush & Motor
5.3.7 Adjusting of brush height

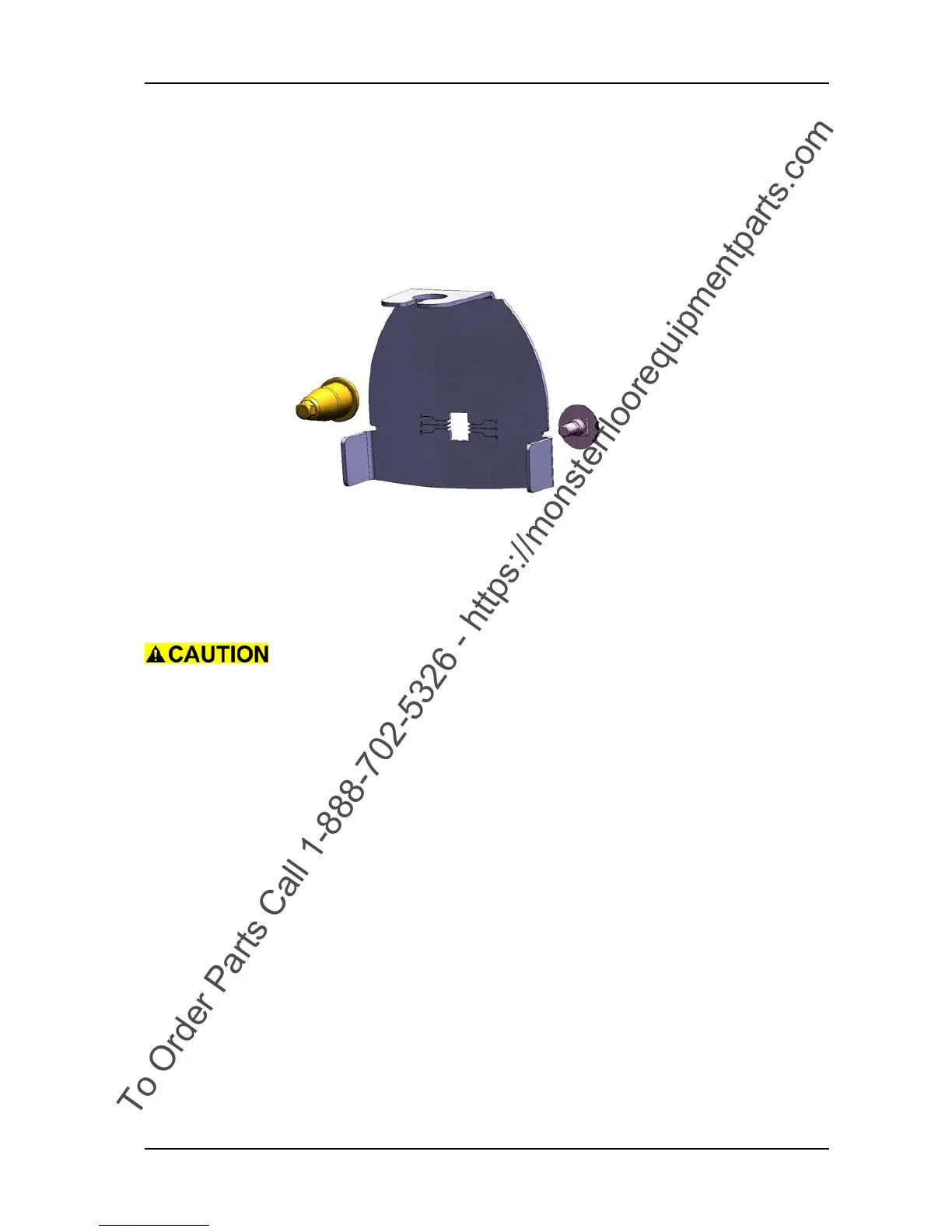

Picture 29: Adjusting brush height
• Loosen handle (30:04/122, 45:05/122) for brush holder (30:04/
133, 45:05/133).
• Remove brush holder.
• Remove the brush take up from the brush holder with a 8mm
fork spanner/socket.
The brush take up has a left hand thread.
Adjustment
You can vary the height by placing the special screw in the positions
1-6. This could be necessary if the brush is not touching the floor or
wearing uneven.
Leaving the factory it is set to number 3.
• Mount the brush take up onto the special screw.
Service
Apply adhesive locking on the special screw.
• Mount the brush holder.
• Mount the handle for the brush holder.
Remarks
You can only order the whole brush holder (30:04/133, 45:05/133).
The adjustment is set to number 3.
