GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-17
Copyright © 2014, Diversey Care
05.58.32 brush & motor - brush pulley - 30_45_V1.00.fm
5.3 Brush & Motor
5.3.6 Mounting of brush pulley

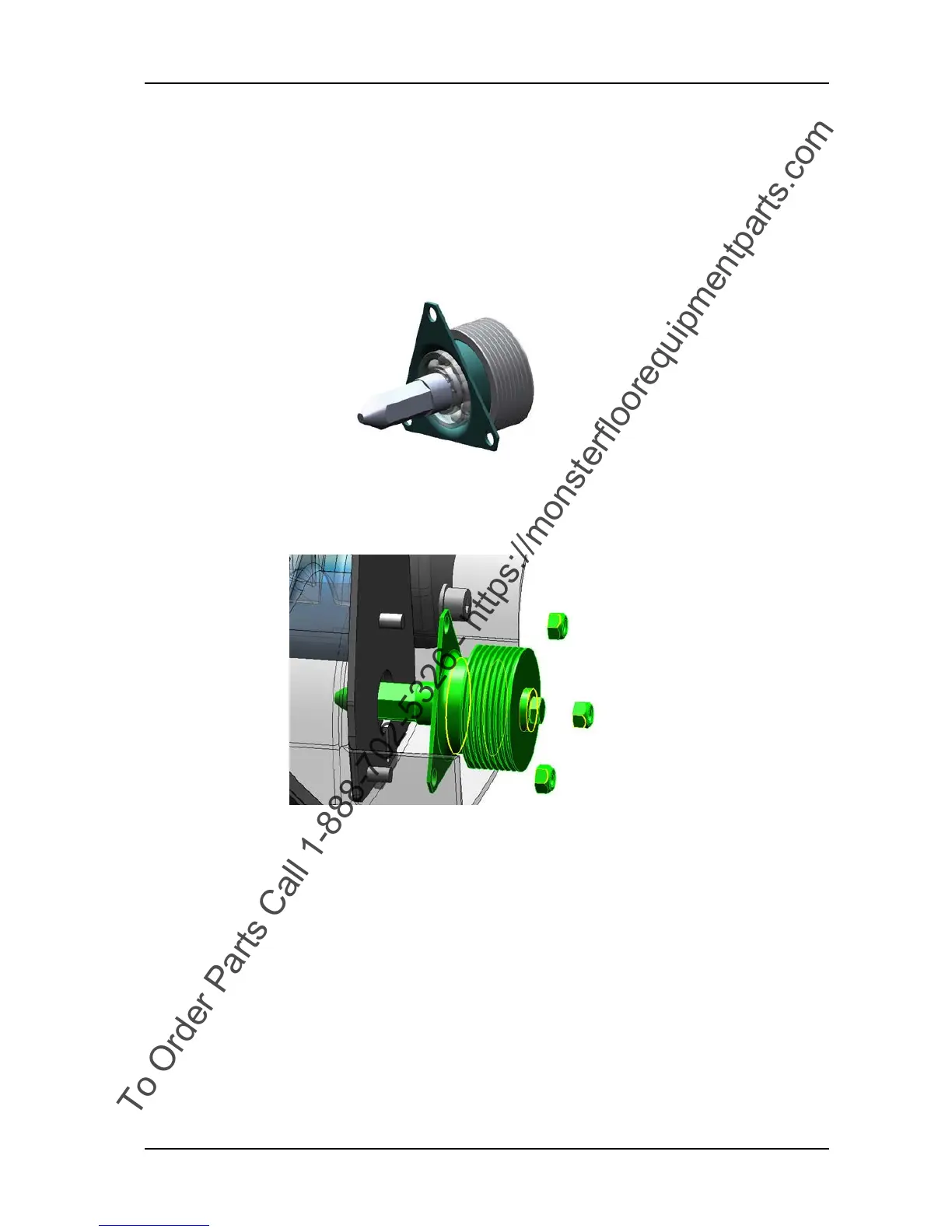

Picture 27: Brush pulley
• Position the brush pulley assembly.
• Mount the 3 self locking nuts with a 10mm fork spanner/socket.
Picture 28: Mount brush pulley
• Complete assembling according to chapter MOUNTING OF
BRUSH MOTOR BELT.
• Close fresh water tank according to chapter MOUNTING OF
FRESH WATER TANK ASSEMBLY.
