5.3 Brush & Motor
5.3.2 Mounting of brush motor belt

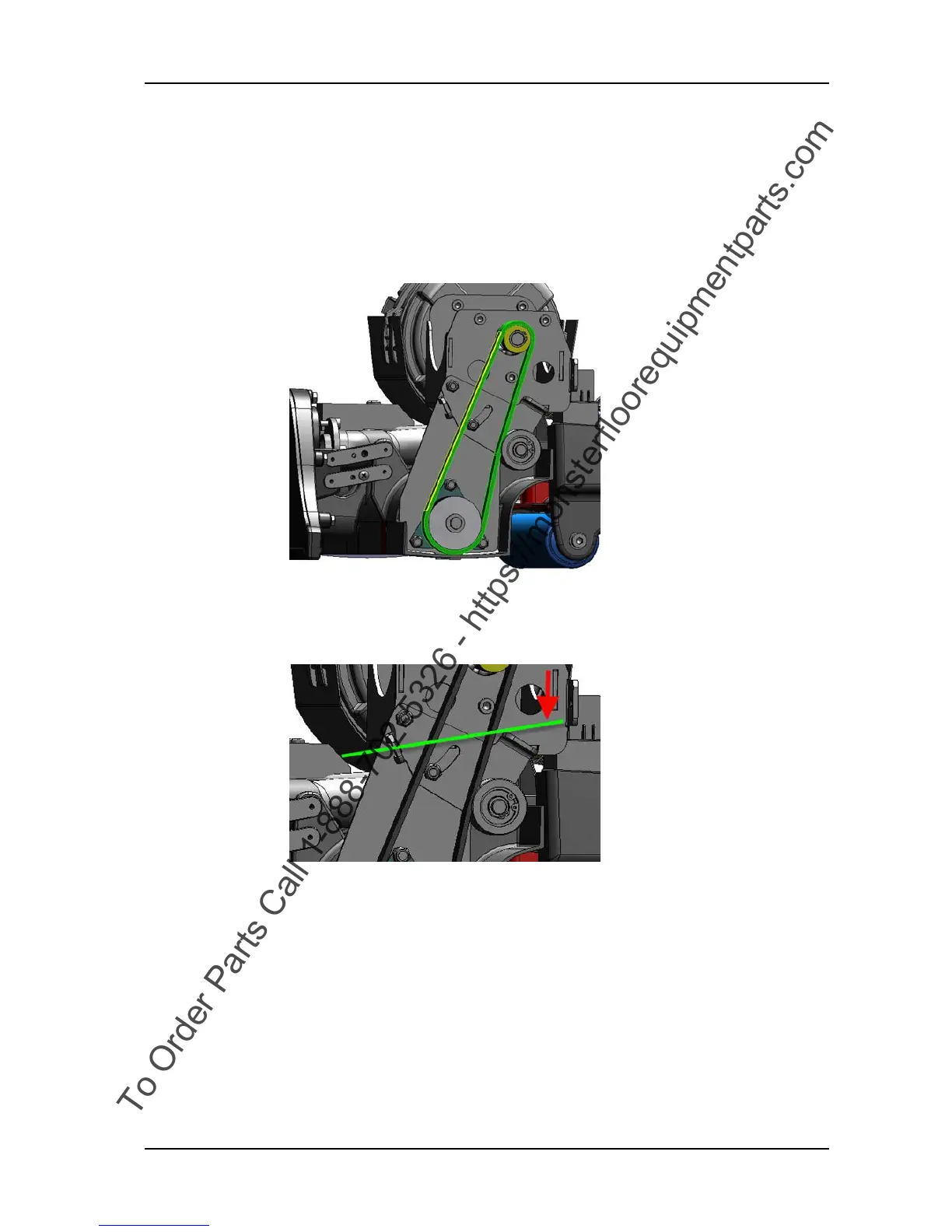

Picture 19: Mount brush motor belt
• Mount the brush motor belt.
• Turn the holder with a screw driver to tension the belt.
• Tighten the fixation and the center nut of the belt holder.
Picture 20: Tension belt
• Mount the brush cover.
• Mount the brush cover screws.
• Close fresh water tank according to chapter MOUNTING OF
FRESH WATER TANK ASSEMBLY.
