GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-12
Copyright © 2014, Diversey Care
05.58.30 brush & motor - brush motor belt - 30_45_V1.00.fm
5.3 Brush & Motor
5.3.1 Removing of brush motor belt

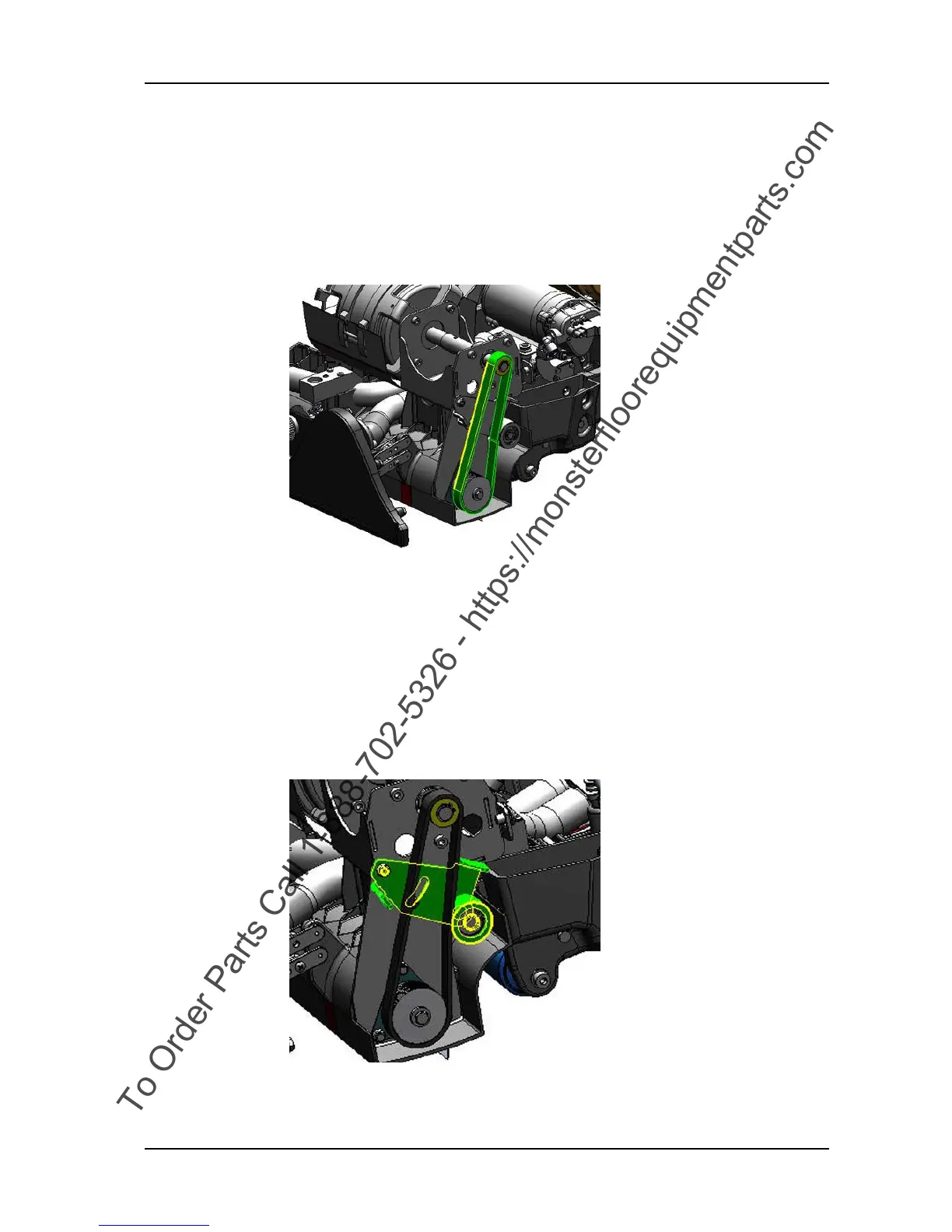

Picture 17: Brush motor belt
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
• Remove the screw (30:04/101, 45:05/101) and the two screws
(30:04/103, 45:05/103) of the brush cover (30:04/102, 45:05/
102).
• Remove brush cover.
• Untighten the fixation and center nut (30:04/110, 45:05/110) of
the brush motor belt holder (30:04/132, 45:05/132), with a
10mm fork spanner/socket.
• Untension the brush motor belt (30:04/115, 45:05/115).
Picture 18: Remove brush motor belt
• Remove the brush motor belt as the tension is released now.
